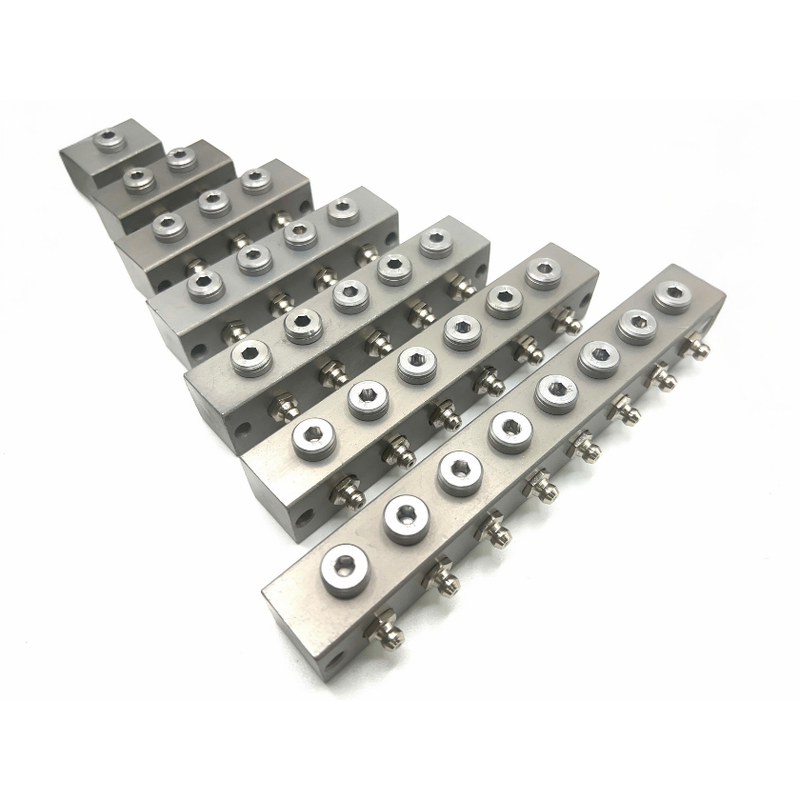

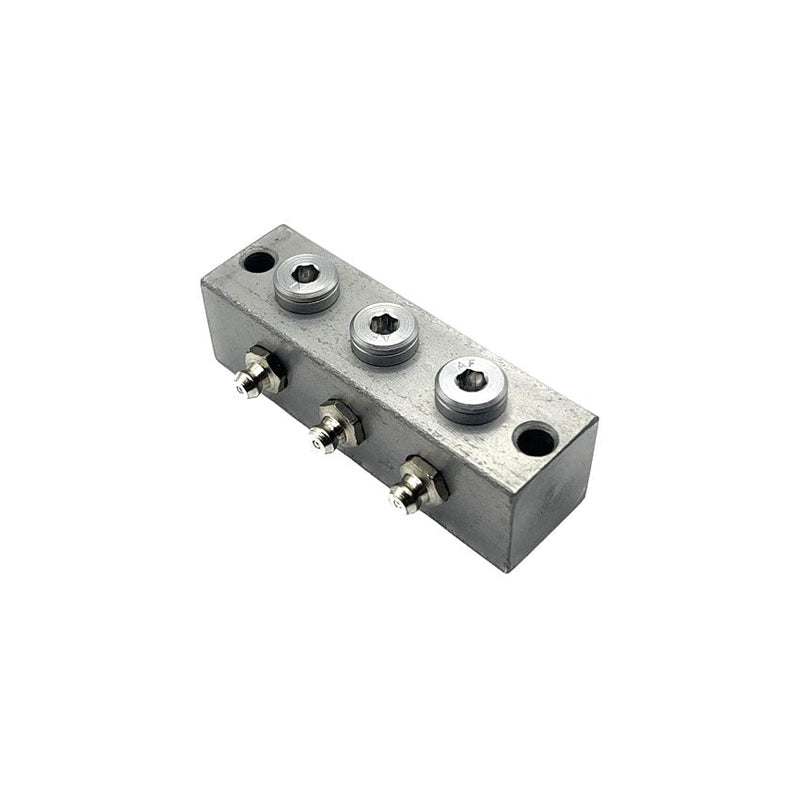

Remote Grease Blocks with Grease Nipples
Remote Grease Anchor Blocks allow grease nipples to be mounted securely and remotely, bringing lubrication access points to convenient locations on machinery. Available in steel (T-drilled) and stainless steel configurations with 1 to 8 outlets, all blocks use 1/8 BSP threads and include grease nipples as standard. Steel blocks are T-drilled, giving the option to connect the grease line either in-line or at 90 degrees to the nipple — stainless blocks are straight-drilled only. Mounting holes are 6.5 mm, and custom sizes can be manufactured upon request.
Technical Specifications
| Thread | 1/8 BSP (all outlets) |
| Outlet Options | 1, 2, 3, 4, 5, 6, 8 outlets |
| Material Options | Steel (T-drilled) or Stainless Steel (straight-drilled) |
| Mounting Holes | 6.5 mm |
| Included | Grease nipples and 1/8 BSP plugs (steel models) |
Dimensions
| Model | L1 (mm) | L2 (mm) | L3 (mm) |
| RGB1 (1 outlet) | 38 | 28 | — |
| RGB2 (2 outlets) | 60 | 50 | 22 |
| RGB3 (3 outlets) | 80 | 74 | 22 |
| RGB4 (4 outlets) | 106 | 96 | 22 |
| RGB5 (5 outlets) | 128 | 118 | 22 |
| RGB6 (6 outlets) | 150 | 140 | 22 |
| RGB8 (8 outlets) | 194 | 184 | 22 |
Ordering Guide

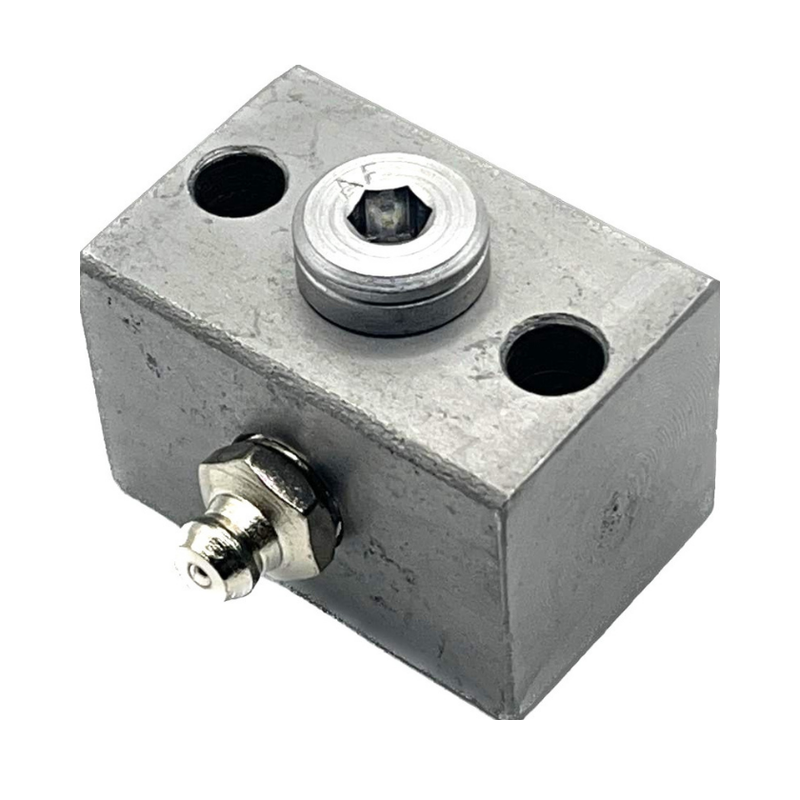

| •RGB1 — 1 outlet steel grease block with grease nipple | RGB1SS — Stainless |

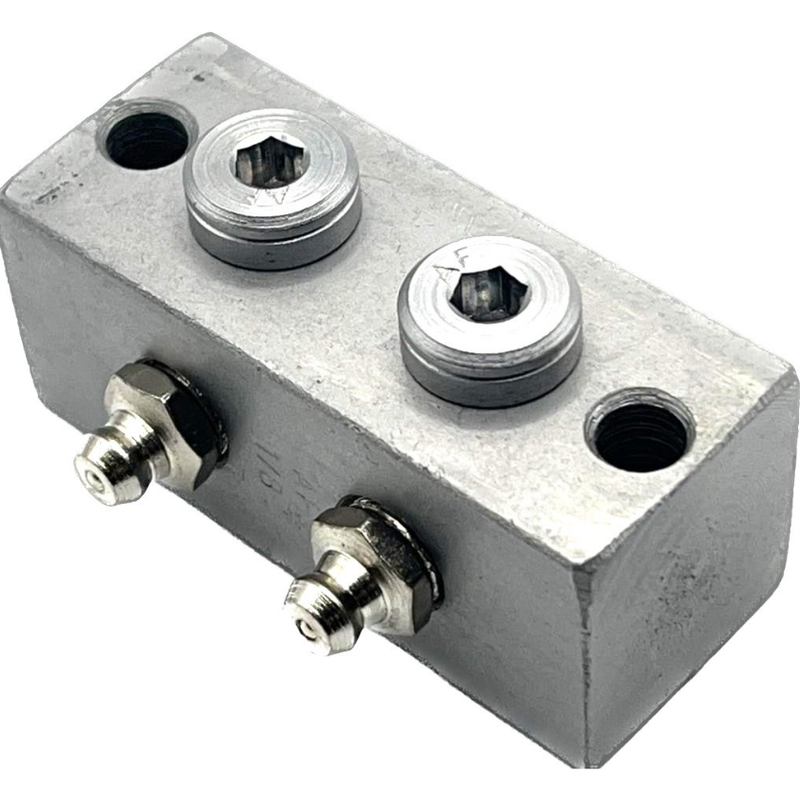

| •RGB2 — 2 outlet steel grease block with grease nipples | RGB2SS — Stainless |
| •RGB3 — 3 outlet steel grease block with grease nipples | RGB3SS — Stainless |

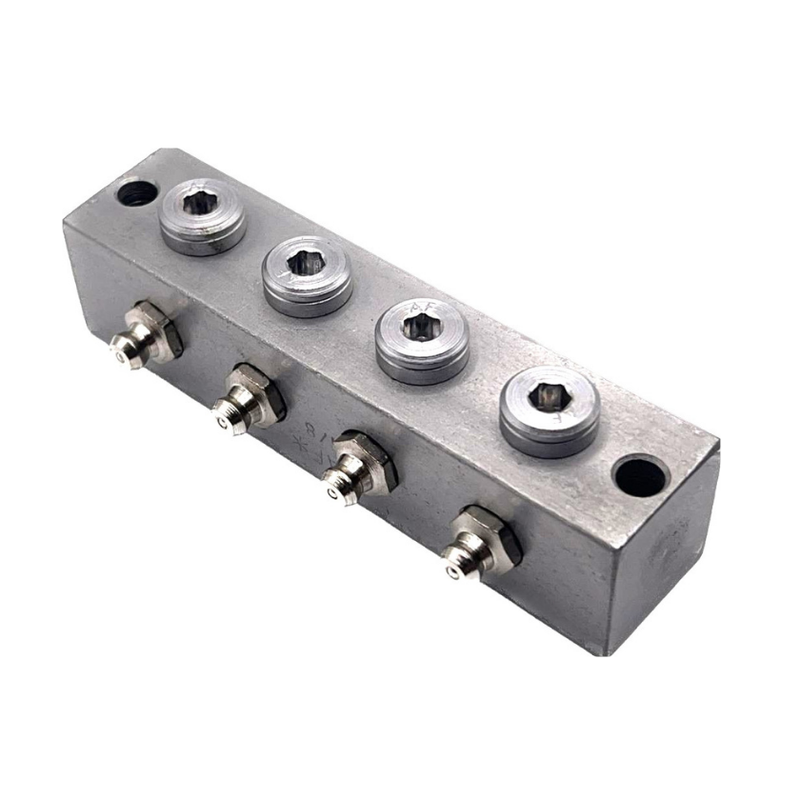

| •RGB4 — 4 outlet steel grease block with grease nipples | RGB4SS — Stainless |

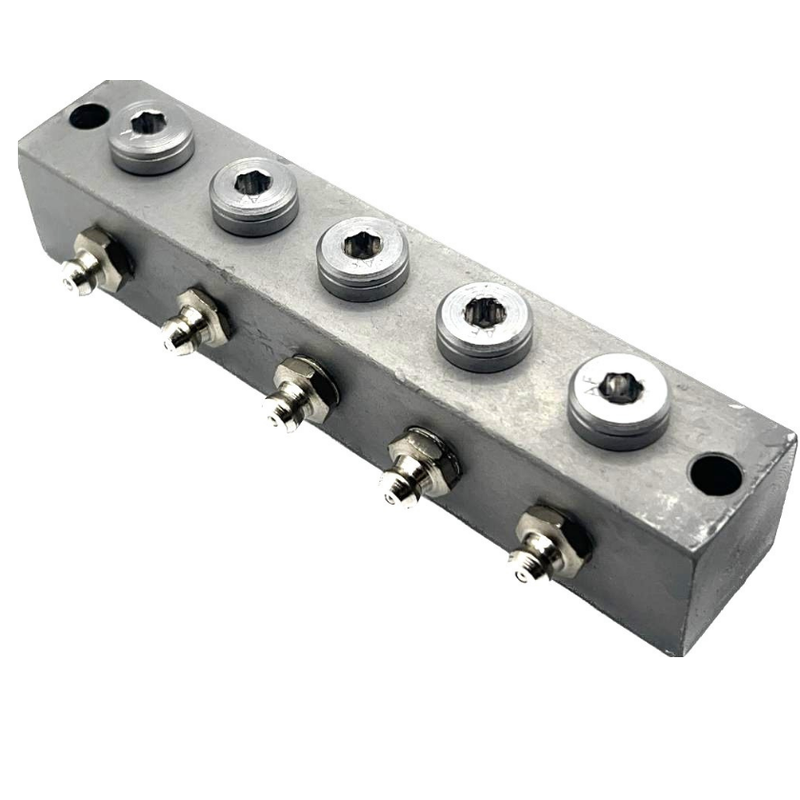

| •RGB5 — 5 outlet steel grease block with grease nipples | RGB5SS — Stainless |

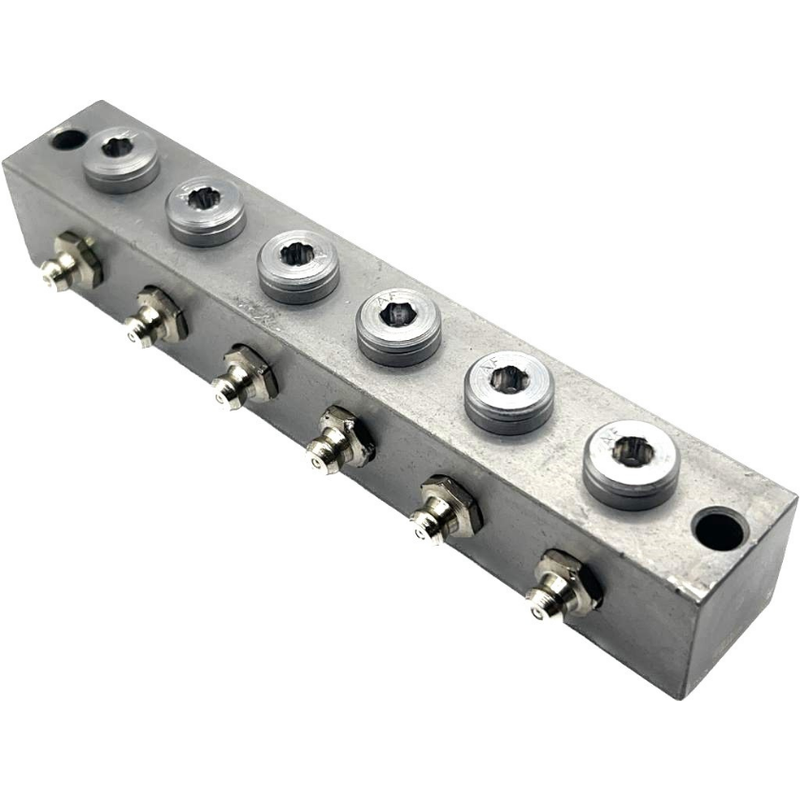

| •RGB6 — 6 outlet steel grease block with grease nipples | RGB6SS — Stainless |

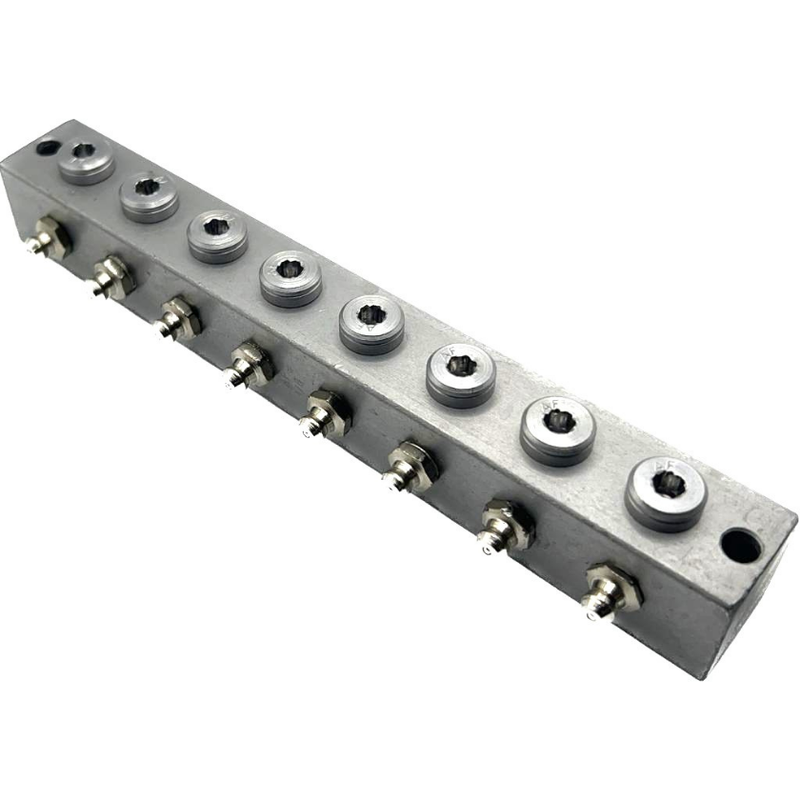

| •RGB8 — 8 outlet steel grease block with grease nipples | RGB8SS — Stainless |
Steel blocks are T-drilled — grease line can be connected in-line or at 90° to the nipple; 1/8 BSP plugs included. Stainless blocks are straight-drilled only. Custom sizes available upon request. Important: never split or tee grease lines — grease will follow the path of least resistance and starve other lubrication points. Use a grease divider valve when distribution to multiple points is required. Supplied by Lube Control Pty Ltd — call 1300 917 946 or visit lubecontrol.com.au.
Technical Documents
Fatadder Grease Anchor Blocks with drawings
Download PDFDisclaimer
Technical specifications may change. Please confirm with the manufacturer.
