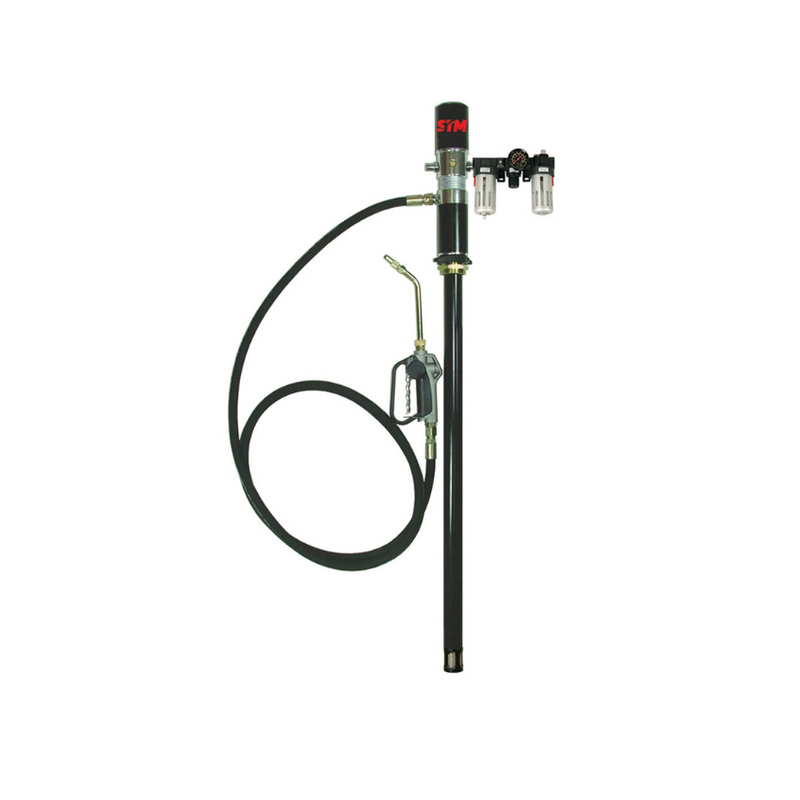

STM 1:1 Air Operated Oil Pump Kit
The 1:1 Air Operated Oil Pump Kit (Model: DITI1701003KIT) is a complete kit for oil transfer from 205 litre drums. Equipped with a delivery hose, oil control gun, and air regulator/filter/lubricator, the kit features an adjustable 2" bung adaptor. Typical fluids handled include motor oil, synthetic oil, hydraulic oil, automatic transmission fluid, and coolant.
Technical Specifications
| Model | DITI1701003KIT |
| Drum Application | 205 litre drum |
| Pressure Ratio | 1:1 |
| Working Pressure | 20–115 psi |
| Air Consumption | @115 psi 3.6 CFM |
| Max Flow Rate (per min) | 18 litres |
| Suction Tube Diameter | 42 mm |
| Suction Tube Length | 940 mm |
| Air Inlet Connection | ¼" BSP Female |
| Oil Outlet Connection | ½" BSP Male |
| Maximum SAE Viscosity | SAE 120 |
Kit Breakdown
| 1:1 Air Operated Oil Pump | DITI1701003 |
| Air Filter/Regulator/Lubricator | DITIBC2000 |
| Manual Oil Nozzle – Rigid Spout | DITI18113543 |
| 4 Metre Oil Hose | DITI1763413 |
Features
| •Complete kit for oil transfer from 205 litre drums |
| •Equipped with delivery hose, oil control gun, and air regulator/filter/lubricator |
| •Adjustable 2" bung adaptor |
| •Typical fluids handled include motor oil, synthetic oil, hydraulic oil, automatic transmission fluid, and coolant |
The information contained in this data sheet is based on data considered to be accurate. No warranty is expressed or implied regarding the accuracy of this data. Product specifications and availability are subject to change without notice. Lube Control Pty Ltd accepts no responsibility for any loss or damage arising from the use of this information.
