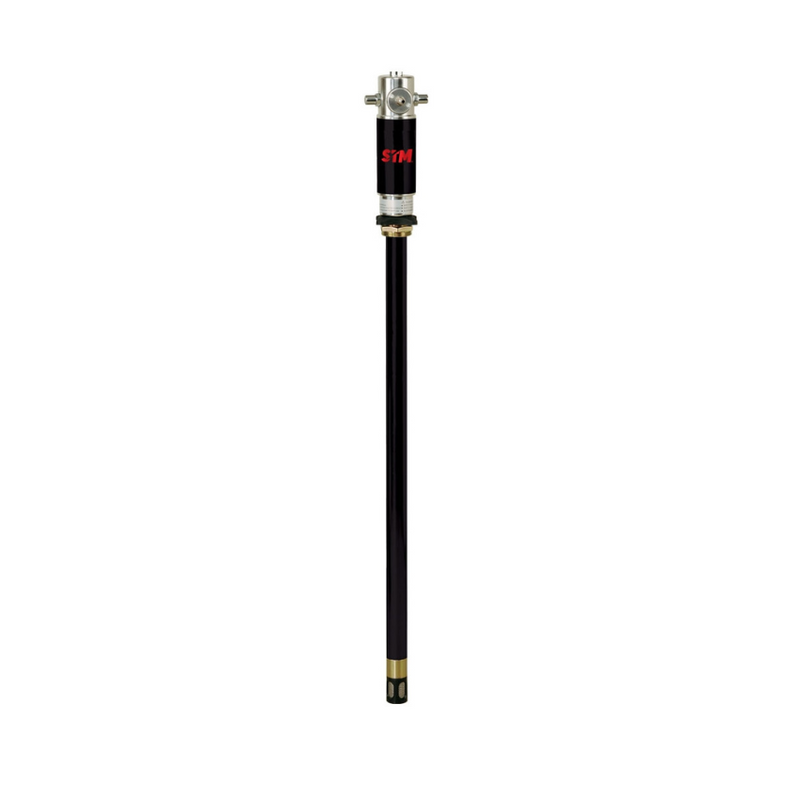

1:1 High Flow Air Operated Oil Pump - 32LPM Long Series
The STM DITI1701006 is a 1:1 air-operated oil pump kit designed for transferring lubrication oil, waste oil and antifreeze liquids from drums. Operating at 5–8 bar compressed air pressure, it delivers 32 L/min at a 1:1 compression ratio — significantly higher output than the DITI1701001/1003 series. Featuring a 940mm (37") suction tube for extension transfer applications, a 1/4" quick plug air inlet and a 3/4" male oil delivery connection, it suits commercial drums with a 2" BSP bung and accepts oils up to SAE 120 viscosity.
Technical Specifications
| Part Number | DITI1701006 |
| Compression Ratio | 1:1 |
| Operating Pressure | 5–8 bar / 70–115 psi |
| Max. Fluid Pressure | 8 bar / 115 psi |
| Capacity | 32 L/min / 8.5 Gallon/min |
| Air Consumption | 130 L/min / 4.7 M³/hour |
| Tube Diameter | 42mm / 1.65" |
| Suction Tube Length | 940mm / 37" (extension transfer) |
| Air Inlet Connection | 1/4" quick plug / 1/4" NPT female |
| Oil Delivery Connection | Male 3/4" |
| Max. Viscosity Oil Delivered | SAE 120 |
| Temperature Range | -10°C to +50°C |
| Noise Level | 82 dB |
| Compatible Fluids | Lubrication oil, waste oil, antifreeze liquids |
Features
| •1:1 compression ratio — air-operated for fast, high-volume 32 L/min oil delivery |
| •940mm suction tube — suited to extension transfer applications directly into drums |
| •Drum compatible — fits commercial drums with 57mm diameter hole and 2" BSP threading |
| •1/4" quick plug air inlet (also accepts 1/4" NPT female) for fast connection to compressed air supply |
| •3/4" male oil delivery connection — suits standard 3/4" delivery hoses per DIN-SAE norms |
| •Accepts oils up to SAE 120 viscosity — suitable for lubrication oil, waste oil and antifreeze liquids |
Compressed air must be filtered to avoid dust and moisture entering the pump. Max compressed air pressure must not exceed 0.8 MPa / 120 psi. Always cut off the air supply after use. Use only for lubricants, waste oil or antifreeze liquids — do not use for any other substance.
