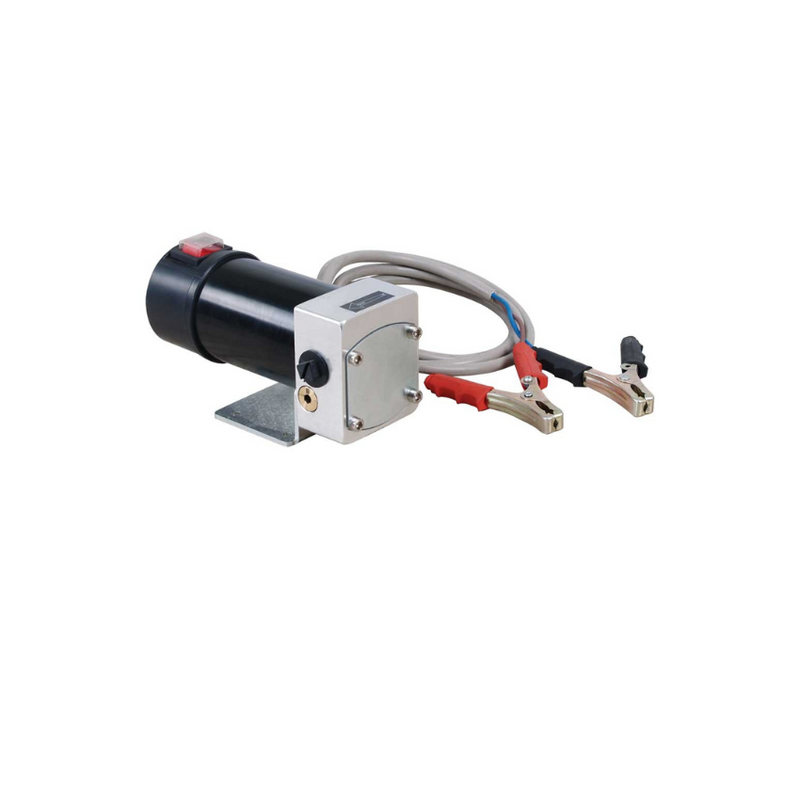

12 Volt DC Oil Transfer Pump
The DITI17520100 is a 12V DC Oil Transfer Pump featuring an electric self-priming rotary external gear pump equipped with a bypass valve. Powered by a brush motor with IP55 protection class (CEI EN 60034-5), it delivers 10 litres per minute at 4 bar pressure and is designed for intermittent use in professional oil transfer applications. The pump is suitable for oils with a viscosity of 50 to 600 cst at working temperature and can be installed horizontally or wall-mounted to suit a range of workshop configurations.
Technical Specifications
| Model | DITI17520100 |
| Voltage | 12V DC |
| Power | 150W |
| Current | 40A |
| Flow Rate | 10 LPM |
| Pressure | 4 bar |
| Inlet / Outlet | 3/4" BSP |
| Rated Speed | 2900 RPM |
| Motor Type | Brush motor, continuous current, low voltage, intermittent cycle, closed type |
| Motor Protection Class | IP55 (CEI EN 60034-5) |
| Pump Type | Electric self-priming rotary external gear pump with bypass valve |
| Fluid Viscosity (Allowed) | 50–600 cst at working temperature |
| Operating Temperature | -10°C to +60°C |
| Relative Humidity (Max) | 90% |
| Working Cycle | Intermittent — 30 minutes maximum under conditions of maximum back pressure |
| Noise Level | Max 70 dB(A) at 1 metre |
Features
| •Self-priming — able to draw oil from the tank even when the suction hose is empty on start-up |
| •Equipped with bypass valve for automatic pressure relief |
| •IP55 motor protection class for reliable operation in workshop environments |
| •Multiple installation orientations supported — horizontal or wall-mounted (pump body upwards, sideways, or with check valve) |
| •Maximum priming height of 2.5 metres |
| •Also available in 24V (DITI17520101) and US NPT configurations (DITI17520102, DITI17520103) |
The information contained in this data sheet is based on data considered to be accurate. No warranty is expressed or implied regarding the accuracy of this data. Product specifications and availability are subject to change without notice. Lube Control Pty Ltd accepts no responsibility for any loss or damage arising from the use of this information.
Technical Documents
DC Oil Transfer Pump User’s Manual
Download PDFDisclaimer
Technical specifications may change. Please confirm with the manufacturer.
