ILC MAX Automatic Grease Lubrication Pump 12Voltage Lubricators
The ILC MAX 12V DC is a high-pressure progressive automatic lubrication pump for grease, running at 23 RPM and delivering up to 3.68 cm³ per minute via a fixed pumping element. Compatible with greases from NLGI 000 through to NLGI 2, and available with 2 kg, 4 kg, or 8 kg transparent plastic reservoirs, it shares the same compact base block dimensions as the 24V DC model (H3 = 115.5 mm). When paired with DPX progressive divider valves, the system can be expanded to accurately distribute predetermined amounts of grease to hundreds of lubrication points simultaneously — making it ideal for mobile equipment and machinery operating on 12V DC electrical systems.
Technical Specifications
| Voltage | 12V DC |
| Motor Speed | 23 RPM (faster than 24V DC at 22 RPM; slower than 240V AC at 29 RPM) |
| Fixed Output | 3.68 cm³/min (0.16 cc/rev) |
| Adjustable Output Range | 0.23 – 3.68 cm³/min (0.01 – 0.16 cc/rev) |
| Maximum Operating Pressure | 250 bar |
| Maximum Counter Pressure | 275 bar (3993 PSI) ±10% |
| Compatible Lubricants | Grease NLGI 000, 00, 0, 1, 2 |
| Operating Temperature Range | -20 °C to +80 °C |

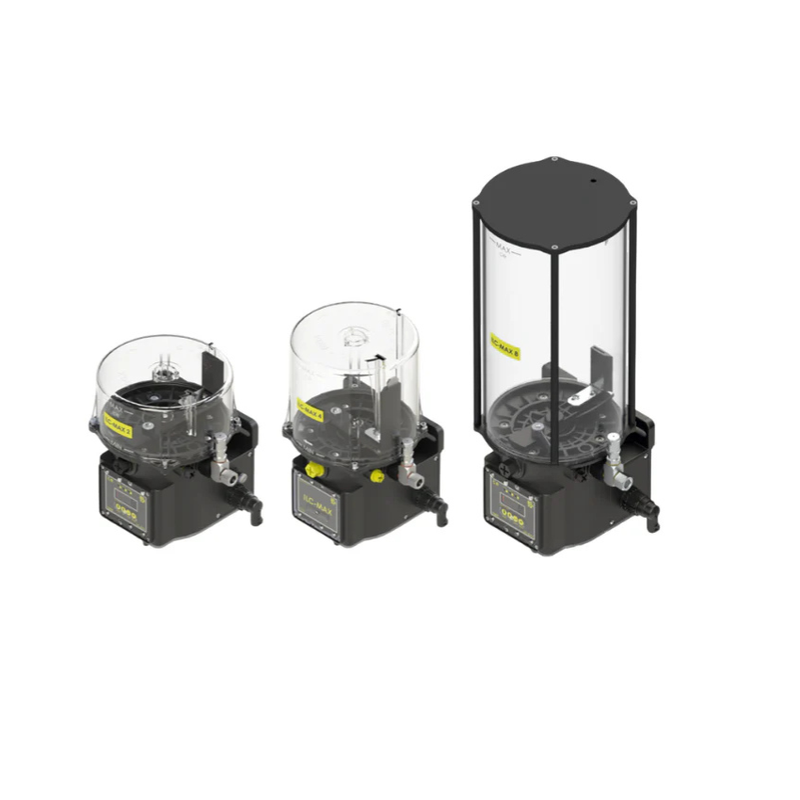

| Reservoir Capacity Options | 2 kg, 4 kg, 8 kg (transparent plastic) |
| Pump Outlets | 1 to 3 (expandable to hundreds of points via DPX progressive divider valves) |

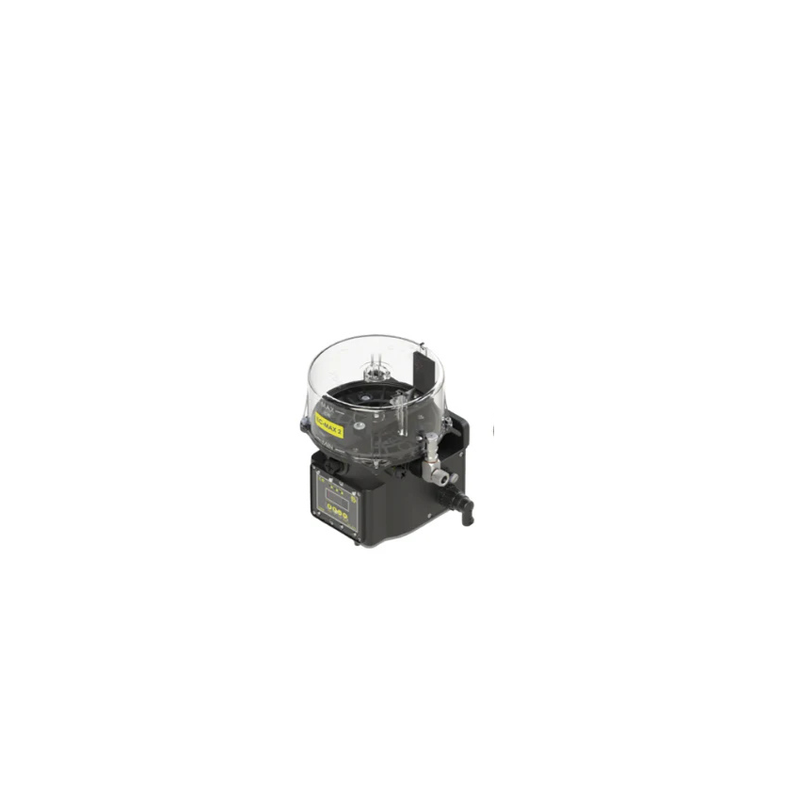

| Overall Height H1 — 2 kg reservoir | 239.5 mm |

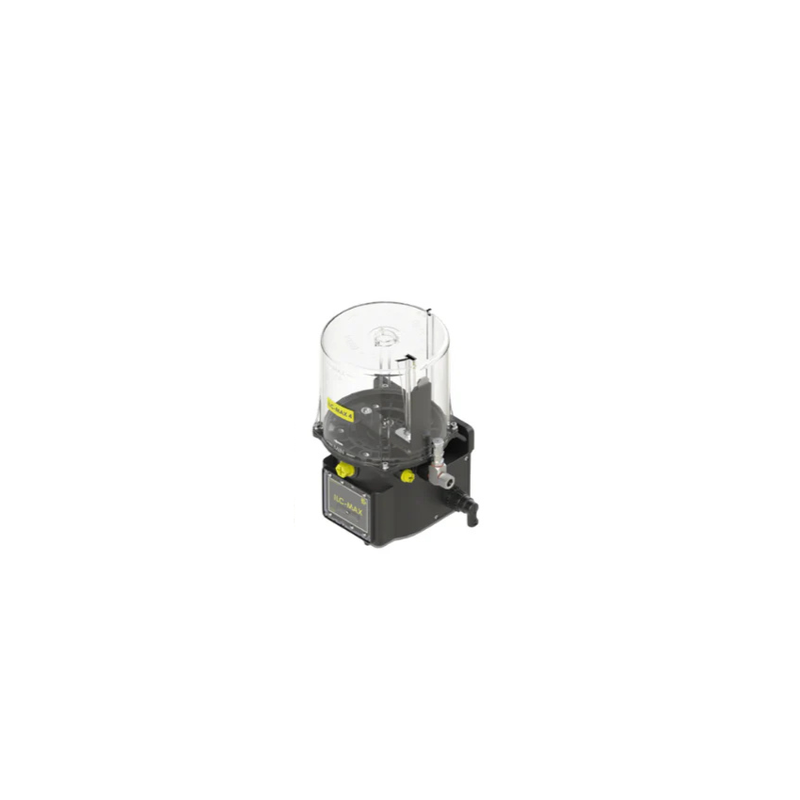

| Overall Height H1 — 4 kg reservoir | 314.5 mm |

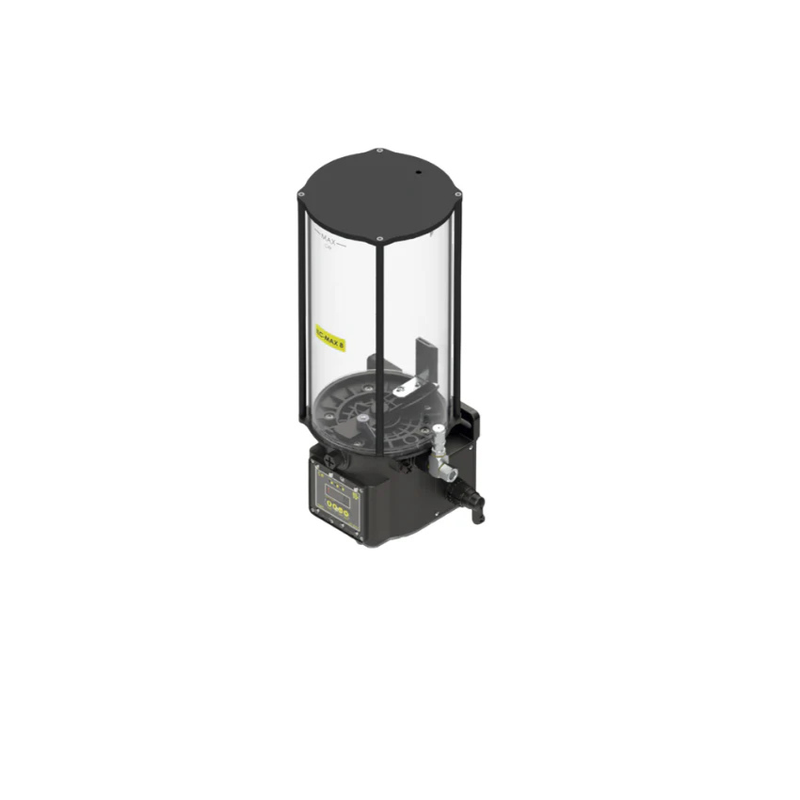

| Overall Height H1 — 8 kg reservoir | 493.5 mm |
| Base Block Height (H3) | 115.5 mm (same footprint as the 24V DC model) |
| Motor Protection Rating | IP56 — Nylon PA6 + 30% fibreglass housing, sealed with O-rings |
Features
| •Direct-mounted electric geared motor drives an internal rotating cam — actuates up to three externally mounted pumping elements, each fitted with a relief valve for over-pressure protection |
| •Expandable via DPX progressive divider valves — master and secondary divider valves allow the system to simultaneously service hundreds of lubrication points with predetermined grease quantities |
| •Internal drive shaft stirring paddle continuously primes the springless pump elements with grease — prevents cavitation and ensures consistent delivery |
| •Built-in grease strainer protects the system from dirt and debris ingress |
| •Low-level switch generates a pulse at every revolution when the reservoir is empty — enables automatic low-level alarm integration |
| •Transparent plastic reservoir (2, 4, or 8 kg) allows visual grease level monitoring at a glance |
| •IP56-rated motor housing in reinforced Nylon PA6 + 30% fibreglass with O-ring seals — suited to harsh outdoor and industrial environments |
Grease version — compatible with NLGI 000 to NLGI 2. Base block dimensions are identical to the 24V DC model; overall heights differ per reservoir size. Manufactured by I.L.C. srl, Italy. Supplied by Lube Control Pty Ltd — call 1300 917 946 or visit lubecontrol.com.au for technical support and DPX divider valve configuration advice.
Disclaimer
Technical specifications may change. Please confirm with the manufacturer.
