200L Drum Oil Filter Kit and Hand Held Filter System

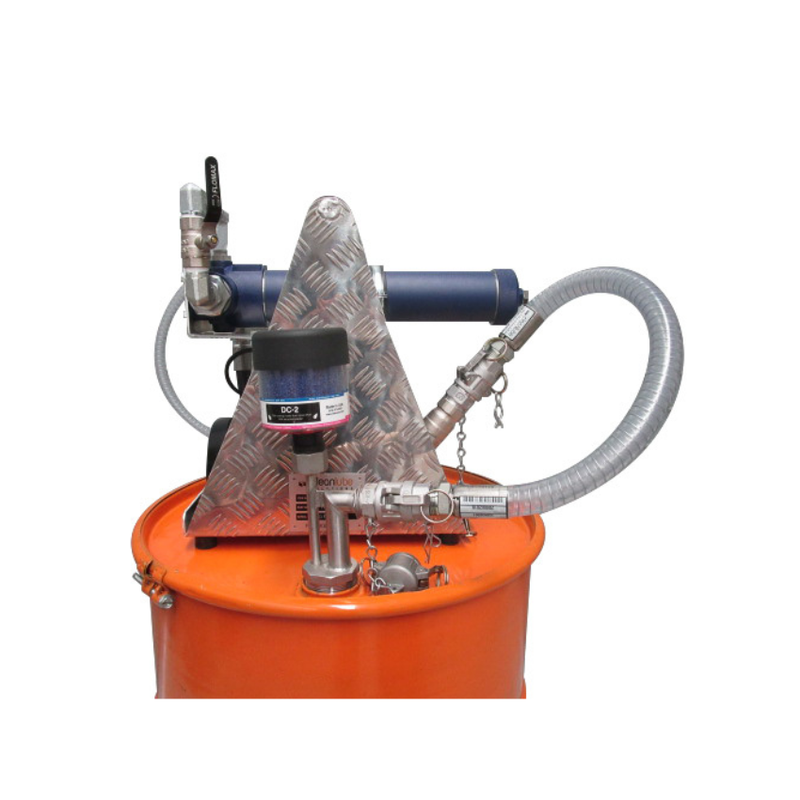

The Hand Held Drum Dispensing Unit (LL-HFU-009) is a lightweight filter unit specifically designed for ease of use when dispensing bulk oils from drums. Able to be easily installed, it is an effective and user friendly device for transferring oils into smaller dispensing containers. Quick connect fittings are used to transfer fluids ensuring that the container lid or pump assembly does not need to be removed, which is vital to ensure total contaminant exclusion when dispensing in an open space or area.
Specifications
| Viscosity | Up to & including ISO460 oil |
| Filter | Quality Pall 5, 7 or 12 micron β=2000 with visual blockage indicator |
| Flow Rate | 9 litres/min |
| Pump Bypass/Relief | 5 bar |
| Electrical Connection | Single phase 10 amp |
| Dimensions | 450H x 500W x 300D mm |
| Maximum Weight | 20 kg |
| Frame | Aluminium checker frame with rubber feet |
| Connections | Camlock connections with caps & chains |
Features
| •Kidney loop filtering of oil drums prior to dispensing |
| •Quality Pall filtration ensuring that oils meet the required ISO4406 Cleanliness Code |
| •Drum breather spike assembly providing dual functions of breather mounting and suction spike with adjustable length |
| •Quick connect dispensing into containers to eliminate environmental contaminants |
The information contained in this data sheet is based on data considered to be accurate. No warranty is expressed or implied regarding the accuracy of this data. Product specifications and availability are subject to change without notice. Lube Control Pty Ltd accepts no responsibility for any loss or damage arising from the use of this information.
