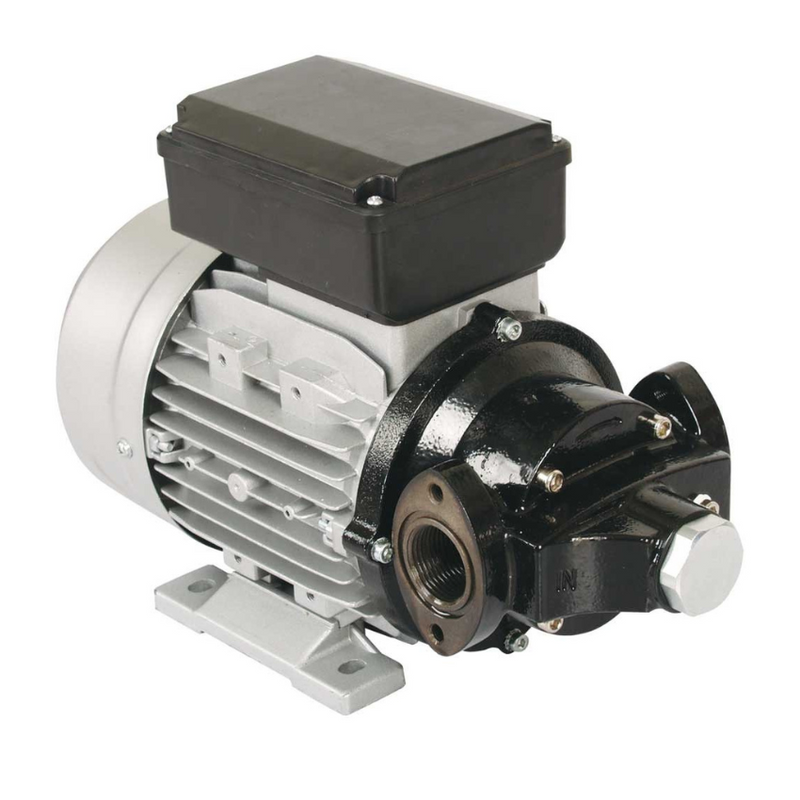

240 Volt High Volume Diesel Pump Motor - 120Lpm
The STM AC Fuel Transfer Pump DITI17311200 is a high-capacity, self-priming rotating vane pump designed for continuous diesel transfer in workshop, depot and industrial environments. Running on single-phase AC 230V power and delivering 120 LPM, it features a built-in by-pass valve and an inspectable suction filter for reliable, low-maintenance operation. Strictly for diesel transfer only; not suitable for petrol, gasoline, solvents, or other flammable and corrosive liquids.
Product Specifications
| Model | DITI17311200 |
| Current | AC |
| Voltage | 230V |
| Frequency | 50/60 Hz |
| Flow Rate | 120 LPM |
| Power | 1100 W |
| Inlet/Outlet | 1" |
| Motor Type | Asynchronous, single-phase, 2 pole, IP55 self-ventilated |
| Pump Type | Self-priming, volumetric, rotating vane with by-pass valve |
| Working Cycle | Continuous (by-pass max 2–3 minutes) |
| Operating Temperature | −20°C to +60°C |
| Relative Humidity | Max 90% |
| Noise Level | ≤70 dB(A) at 1 metre |
| Fluid | Diesel fuel only — viscosity 2 to 5.35 cSt at 37.8°C, minimum flash point 55°C |
Features & Benefits
| •High flow rate of 120 LPM for fast, large-volume diesel transfer in workshop and depot applications |
| •Self-priming rotating vane pump with by-pass valve for reliable start-up and pump protection |
| •IP55-rated asynchronous motor — closed, self-ventilated and directly flanged to the pump body |
| •Inspectable suction filter to protect the pump and maintain clean fuel delivery |
| •Designed for continuous use — thermal protection automatically cuts out on overtemperature and resets when cool |
| •Can be installed in any position — pump axis vertical or horizontal — for flexible workshop integration |
| •Certified to key European standards including EN292, EN60034, EN61000 and EN60204-1 |
| •Diesel use only — not suitable for gasoline, solvents, corrosive chemicals, food liquids or water |
The information contained in this data sheet is based on data considered to be accurate. No warranty is expressed or implied regarding the accuracy of this data. Product specifications and availability are subject to change without notice. Lube Control Pty Ltd accepts no responsibility for any loss or damage arising from the use of this information.
Out of stock ? / Ordering a large item?
Contact our team to confirm availability, delivery options, and customised freight costs for oversized or heavy products before placing your order.
sales@lubecontrol.com.au
1300 917 946
+61 8 8298 5563
Technical Documents
AC Fuel Transfer Pump User’s Manual
Download PDF
