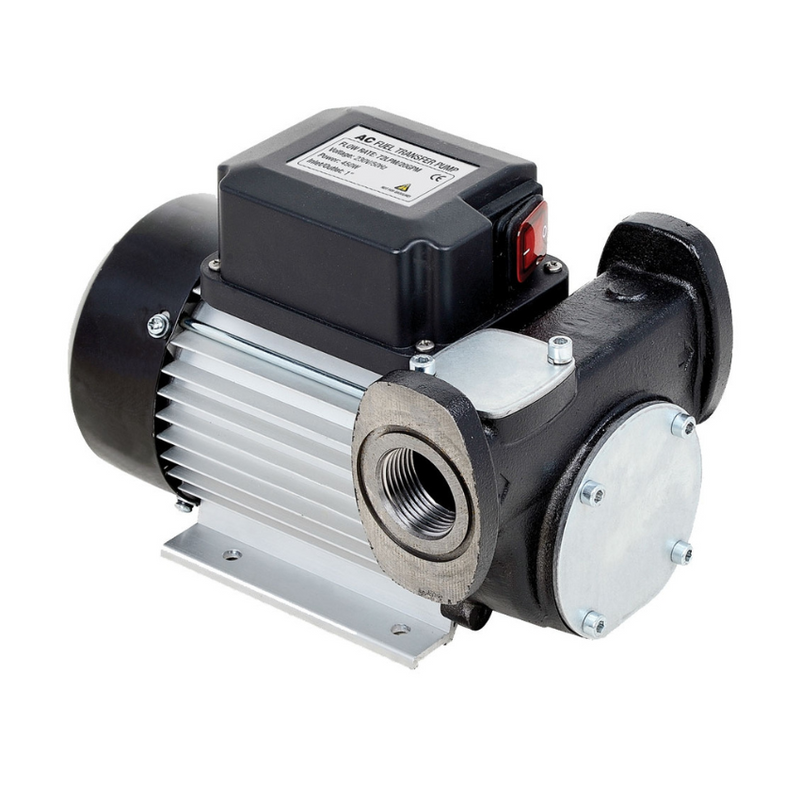

240 Volt High Volume Diesel Pump Motor -72Lpm
The STM AC Fuel Transfer Pump DITI17330720 is an electric self-priming rotary vane pump built for continuous diesel transfer in workshop, depot and industrial environments. Running on single-phase AC 230V power and delivering 72 LPM, it features a built-in by-pass valve and an integrated suction filter for reliable, low-maintenance operation. Strictly for diesel transfer only; not suitable for petrol, gasoline, solvents, or other flammable and corrosive liquids.
Product Specifications
| Model | DITI17330720 |
| Current | AC |
| Voltage | 230V |
| Frequency | 50/60 Hz |
| Power | 450 W |
| Flow Rate | 72 LPM |
| Inlet/Outlet | 1" |
| Pump Type | Self-priming rotary vane with by-pass valve and built-in filter |
| Motor Type | Asynchronous, single-phase, 2-pole, IP55 self-ventilating |
| By-pass Max Time | 2 minutes |
| Operating Temperature | −20°C to +60°C |
| Relative Humidity | Max 90% |
| Noise Level | ≤70 dB(A) at 1 metre |
| Fluid | Diesel fuel only — viscosity 2 to 5 cSt at 37°C, minimum flash point 55°C |
Features & Benefits
| •72 LPM flow rate on AC 230V single-phase power for fast, high-volume diesel transfer |
| •Self-priming rotary vane pump with by-pass valve — reliable start-up with no manual priming required |
| •Built-in suction filter protects the pump and maintains clean, uninterrupted fuel flow |
| •IP55-rated asynchronous single-phase motor — closed, self-ventilating for reliable continuous operation |
| •Can be installed in any position — pump axis vertical or horizontal — for flexible workshop integration |
| •Suction hose: min. 1" nominal diameter at 10 bar / 145 PSI; delivery hose: min. 3/4" at 10 bar / 145 PSI |
| •Diesel use only — not suitable for petrol, gasoline, solvents, corrosive chemicals, food liquids or water |
The information contained in this data sheet is based on data considered to be accurate. No warranty is expressed or implied regarding the accuracy of this data. Product specifications and availability are subject to change without notice. Lube Control Pty Ltd accepts no responsibility for any loss or damage arising from the use of this information.
