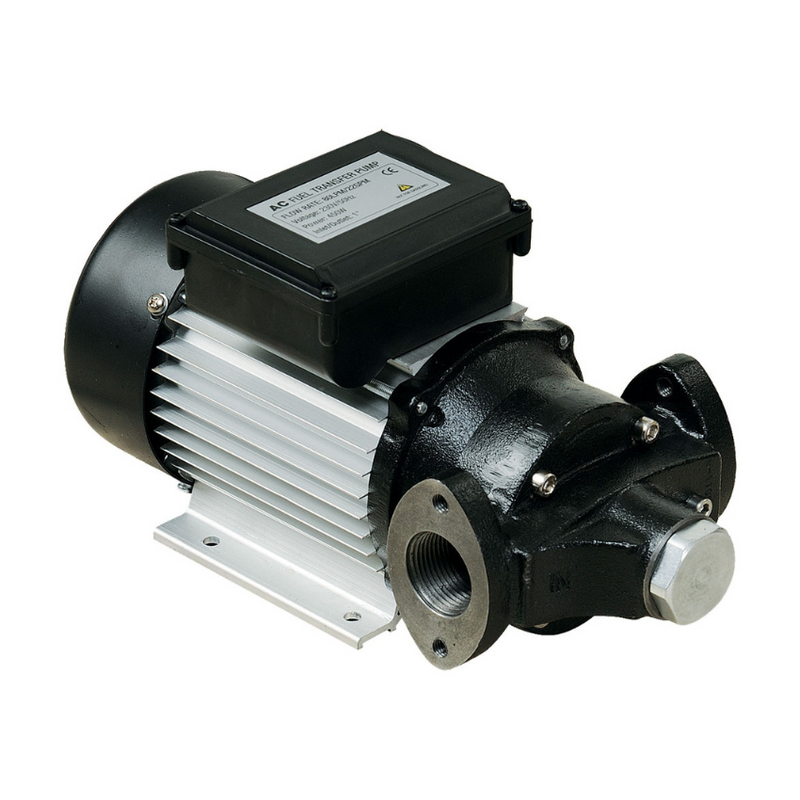

240 Volt High Volume Diesel Pump Motor-80Lpm
The STM AC Fuel Transfer Pump DITI17310801 is a self-priming rotating vane pump built for continuous diesel transfer in workshop, depot and industrial environments. Running on single-phase AC 230V power and delivering 80 LPM, it features a built-in by-pass valve and an inspectable suction filter for reliable, low-maintenance operation. Strictly for diesel transfer only; not suitable for petrol, gasoline, solvents, or other flammable and corrosive liquids.
Product Specifications
| Model | DITI17310801 |
| Current | AC |
| Voltage | 230V |
| Frequency | 50/60 Hz |
| Power | 450 W |
| Flow Rate | 80 LPM |
| Inlet/Outlet | 1" |
| Pump Type | Self-priming, volumetric, rotating vane with by-pass valve |
| Motor Type | Asynchronous, single-phase, 2 pole, IP55 self-ventilated |
| Working Cycle | Continuous (by-pass max 2–3 minutes) |
| Operating Temperature | −20°C to +60°C |
| Relative Humidity | Max 90% |
| Noise Level | ≤70 dB(A) at 1 metre |
| Fluid | Diesel fuel only — viscosity 2 to 5.35 cSt at 37.8°C, minimum flash point 55°C |
Features & Benefits
| •80 LPM flow rate on AC 230V single-phase power for fast, efficient diesel transfer |
| •Self-priming rotating vane pump with by-pass valve — reliable start-up with no manual priming required |
| •Inspectable suction filter protects the pump and maintains clean, uninterrupted fuel flow |
| •IP55-rated asynchronous single-phase motor — closed, self-ventilated and directly flanged to the pump body |
| •Designed for continuous use — thermal protection automatically cuts out on overtemperature and resets when cool |
| •Can be installed in any position — pump axis vertical or horizontal — for flexible workshop integration |
| •Certified to key European standards including EN292, EN60034, EN61000 and EN60204-1 |
| •Diesel use only — not suitable for gasoline, solvents, corrosive chemicals, food liquids or water |
The information contained in this data sheet is based on data considered to be accurate. No warranty is expressed or implied regarding the accuracy of this data. Product specifications and availability are subject to change without notice. Lube Control Pty Ltd accepts no responsibility for any loss or damage arising from the use of this information.
Out of stock ? / Ordering a large item?
Contact our team to confirm availability, delivery options, and customised freight costs for oversized or heavy products before placing your order.
sales@lubecontrol.com.au
1300 917 946
+61 8 8298 5563
Technical Documents
AC Fuel Transfer Pump User’s Manual DITI17310801
Download PDF
