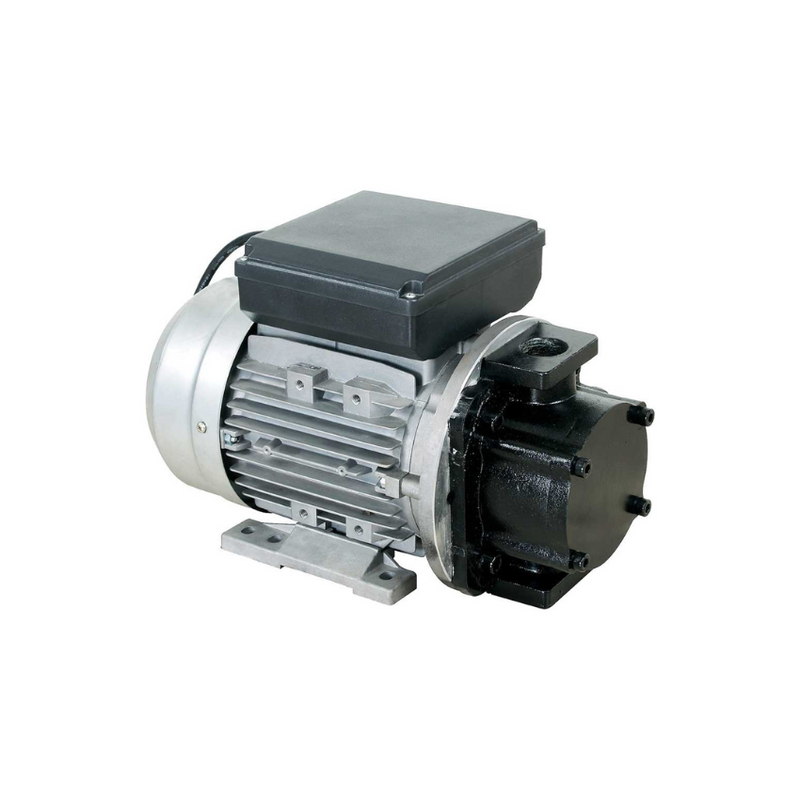

240 Volt High Volume Gear Oil Pump
The DITI17320400 is an AC Gear-type Oil Pump featuring an electric self-priming rotary internal gear pump equipped with a bypass valve. Powered by a 4-pole asynchronous motor with IP55 protection class, the motor is self-ventilating and flange-mounted directly to the pump body for a compact and robust design. Operating at 230V AC / 50Hz with a nominal power of 1100W, it delivers 40 litres per minute at up to 10 bar maximum pressure — suitable for oils with a viscosity of 500 to 2000 cst at working temperature. Under normal operating conditions the pump can function continuously with no cycle limitations.
Technical Specifications
| Model | DITI17320400 |
| Current Type | AC |
| Voltage | 230V |
| Frequency | 50 Hz |
| Nominal Power | 1100W |
| Maximum Pressure | 10 bar |
| Flow Rate | 40 LPM |
| Pump Type | Electric self-priming rotary internal gear pump with bypass valve |
| Motor Type | Asynchronous, 4-pole, closed type, self-ventilating, flange-mounted |
| Motor Protection Class | IP55 |
| Fluid Viscosity (Allowed) | 500–2000 cst at working temperature |
| Operating Temperature | -10°C to +60°C |
| Relative Humidity (Max) | 90% |
| Working Cycle | Continuous — no limitations under normal operating conditions |
| Minimum Hose Diameter | 1" (suction and delivery) |
| Noise Level | Max 70 dB(A) at 1 metre |
Features
| •Self-priming — able to draw oil from the tank even when the suction hose is empty on start-up |
| •Equipped with bypass valve for automatic pressure relief |
| •IP55 motor protection class — suitable for demanding professional workshop environments |
| •Continuous duty cycle under normal operating conditions — no work cycle time limit |
| •Excellent suction capacity — flow rate/back pressure curve remains stable even at high suction pressure values |
| •Multiple installation orientations supported — horizontal base, pump body upwards, or pump body aside |
| •Also available in 380V/50Hz (DITI17320401) and 120V/60Hz US configurations (DITI17320500, DITI17320501) |
The information contained in this data sheet is based on data considered to be accurate. No warranty is expressed or implied regarding the accuracy of this data. Product specifications and availability are subject to change without notice. Lube Control Pty Ltd accepts no responsibility for any loss or damage arising from the use of this information.
