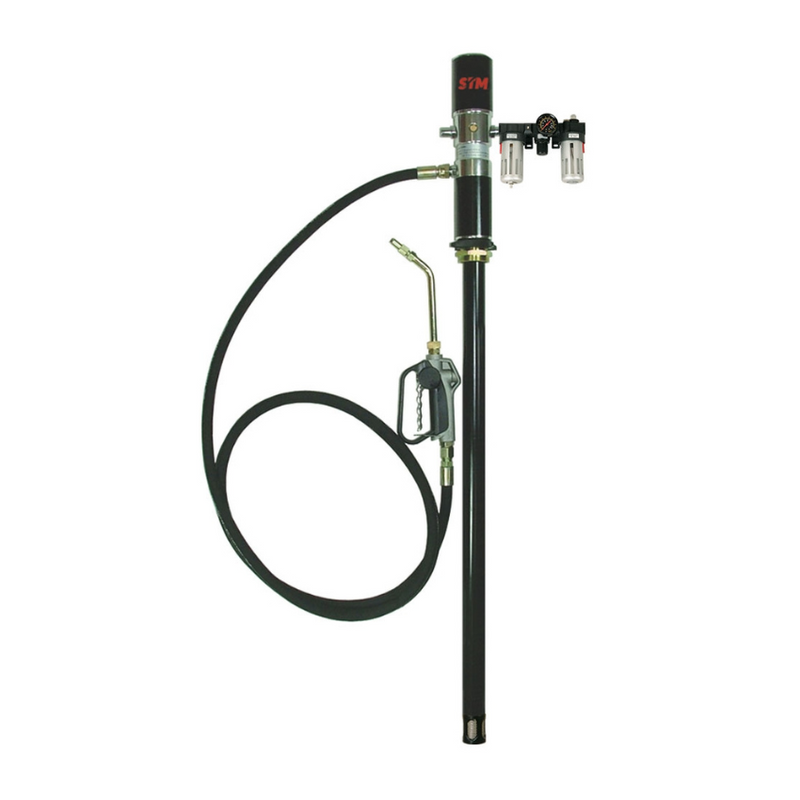

STM 3:1 Air Operated Oil Pump Kit
The 3:1 Air Operated Oil Pump Kit (Model: DITI1701033KIT) is a complete kit for transferring oil from 205 litre drums. Equipped with a delivery hose, oil control gun, and lubricator, the kit features an adjustable 2" bung adaptor and is suitable for typical fluids including motor oil, synthetic oil, hydraulic oil, ATF, and coolant.
Technical Specifications
| Part Number | DITI1701033KIT |
| Drum Application | 205 litre drums |
| Pressure Ratio | 3:1 |
| Working Pressure | 70–115 psi |
| Air Consumption | @115 psi 3.6 CFM |
| Max Flow Rate (per min) | 12 litres |
| Suction Tube Diameter | 42 mm |
| Suction Tube Length | 940 cmm |
| Air Inlet Connection | ¼" BSP Female |
| Oil Outlet Connection | ½" BSP Male |
Kit Breakdown
| Air Operated Oil Pump | DITI1701033 |
| Lubricator | DITIBL2000 (lubricator only) |
| Manual Oil Nozzle – Rigid Spout | DITI18113543 |
| 4 Metre Oil Hose | DITI1763413 |
This Package Includes
| Item | Part Number | Quantity |
| 3:1 Air Operated Oil Pump – Long Series | DITI1701033 | 1 |
| DITI1782801 | 1 |
Features
| •Complete kit for transferring oil from 205 litre drums |
| •Equipped with delivery hose, oil control gun, and lubricator |
| •Adjustable 2" bung adaptor |
| •Typical fluids handled include motor oil, synthetic oil, hydraulic oil, ATF, and coolant |
The information contained in this data sheet is based on data considered to be accurate. No warranty is expressed or implied regarding the accuracy of this data. Product specifications and availability are subject to change without notice. Lube Control Pty Ltd accepts no responsibility for any loss or damage arising from the use of this information.
Technical Documents
3:1 Air Operated Oil Pump Kit
Download PDFDisclaimer
Technical specifications may change. Please confirm with the manufacturer.
