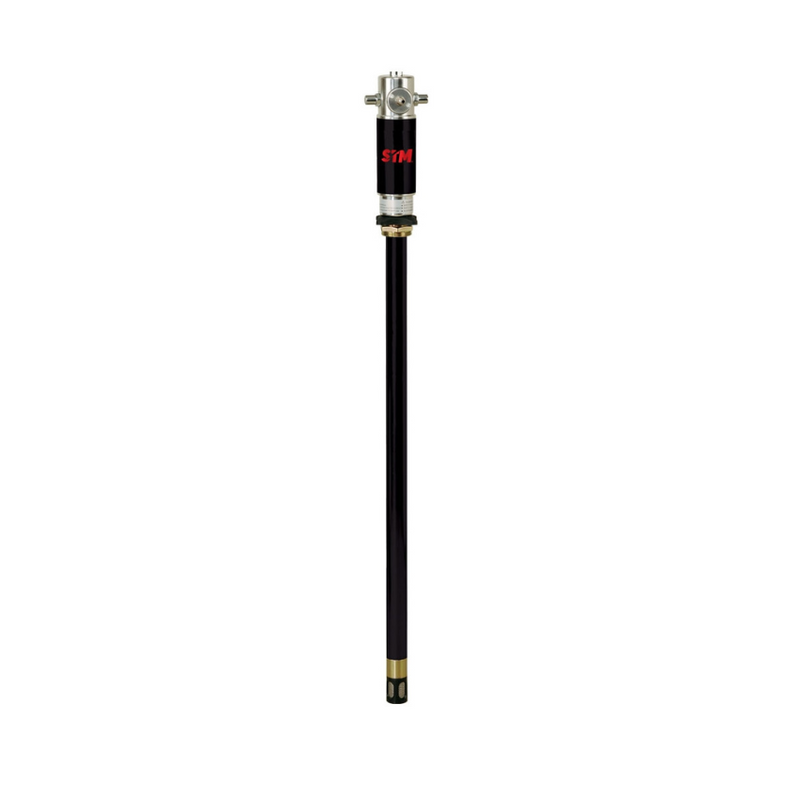

5:1 Air Operated Oil Pump - Long Series
The STM DITI1701053 is a heavy-duty 5:1 ratio air operated oil pump designed for reliable transfer of lubrication oil, waste oil and antifreeze liquids from 180–220 kg (400 lb) drums. Engineered for professional workshop and industrial environments, this pump delivers consistent output with a maximum operating pressure of 8 bar (115 psi) and a flow rate of 12 litres per minute. The 1/4" quick plug or 1/4" NPT female air inlet and 1/2" male oil delivery connection make integration with existing fluid transfer systems straightforward and efficient.
Technical Specifications
| Item Number | DITI1701053 |
| Compression Ratio | 5:1 |
| Operating Pressure | 5–8 bar / 70–115 psi |
| Maximum Pressure | 8 bar / 115 psi |
| Air Consumption | 240 L/min / 63.5 Gallon/min |
| Flow Capacity | 12 L/min / 3.2 Gallon/min |
| Suction Tube Diameter | 42 mm / 1.65 inch |
| Suction Tube Length | 940 mm / 37 inch |
| Air Inlet Connection | 1/4" Quick Plug / 1/4" NPT Female |
| Oil Delivery Connection | Male 1/2" |
| Maximum Oil Viscosity | SAE 250 |
| Oil Temperature Range | -10°C to 50°C |
| Drum Compatibility | 180–220 kg / 400 lb |
| Noise Level | 82 dB |
Features
| •5:1 compression ratio delivers high-pressure oil output from a standard compressed air supply |
| •Compatible with lubrication oil, waste oil and antifreeze liquids up to SAE 250 viscosity |
| •940 mm (37") suction tube length — suited for standard 180–220 kg (400 lb) industrial drums |
| •Universal 1/4" quick plug or 1/4" NPT female air inlet for fast connection to existing air lines |
| •Modular extension transfer system allows personalised suction tube lengths using modular extension elements |
| •Wall bracket installation option available for fixed workshop setups |
| •Suitable for use as part of the STM 1700332 and 1700333 distribution kit systems with drum trolley and oil hose reel |
Applications
| •Transfer of lubrication oil in automotive workshops and service centres |
| •Waste oil collection and dispensing in industrial facilities |
| •Antifreeze liquid transfer in transport, fleet maintenance and heavy equipment servicing |
Only use original spare parts for repairs. Compressed air must be filtered to avoid dust and moisture. Maximum compressed air pressure must not exceed 0.8 MPa. Always cut off the air supply after use.
Technical Documents
MANUAL_DITI1701053
Download PDF
ExtensionTube_053
Download PDFDisclaimer
Technical specifications may change. Please confirm with the manufacturer.
