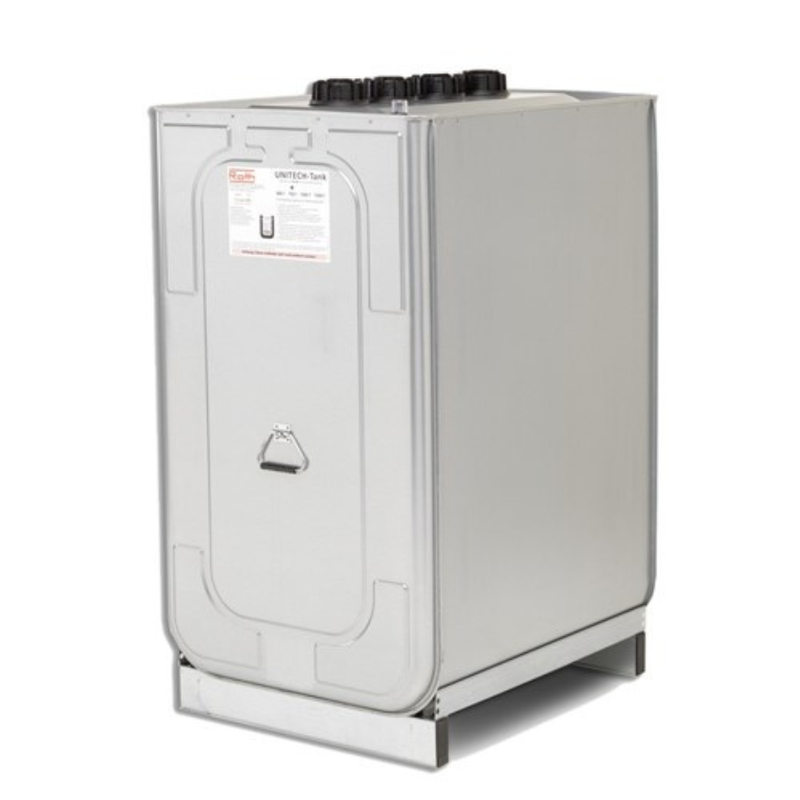

Machnaught 750L Double Wall Storage Tanks
The 750L Double Wall Storage Tank (OTSB750) features an inner tank manufactured from high molecular HDPE, with the outer tank constructed from galvanised sheet metal. The outer tank functions as a collecting tray with the capacity to hold the full volume of the inner tank. The design is suitable for the storage of a single fluid and can be used for lubricating oils, heat transfer oils, mineral oils, hydraulic oils, fatty oils, fuel oil, and diesel across private, industrial and commercial applications. Integrated handles enable easy handling, while a low centre of gravity provides a high degree of static stability. The OTSB750 can also be configured into a complete dispensing system with a range of compatible pump, reel, and gun packages.
Specifications
| Part Number | OTSB750 |
| Capacity | 750L |
| Dimensions (L x W x H) | 980 x 760 x 1420mm |
| Weight | 81Kg |
| Inner Tank Material | Blow moulded, high molecular HDPE, corrosion-resistant |
| Outer Tank Material | Galvanised sheet metal, functions as a collecting tray to hold full volume of inner tank |
Features
| •Corrosion-resistant inner tank manufactured from blow moulded, high molecular HDPE |
| •Galvanised sheet metal outer tank acts as a collecting tray, holding the full volume of the inner tank |
| •Base frame ensures adequate ventilation under the tank |
| •Suitable for lubricating oils, heat transfer oils, mineral oils, hydraulic oils, fatty oils, fuel oil and diesel |
| •Optical leak probe and level indicator |
| •Low centre of gravity provides a high degree of static stability |
| •Integrated handles enable easy handling of the tank |
Compatible Dispense Packages (for 750L, 1000L & 1500L Tanks)
| Part No. (w/o tank) | Pump | Hose Reel | Oil Control Gun / Meter / Valve |
| OTL1215-R5E | 5:1 R-Series | 1/2" x 15m Reel | Metered |
| OTL1215-R5 | 5:1 R-Series | 1/2" x 15m Reel | Un-Metered |
| OTL1215-R5IM | 5:1 R-Series | 1/2" x 15m Reel | Un-Metered & In-line Meter |
| OTL-R5E | 5:1 R-Series | X | Metered |
| OTL-R5 | 5:1 R-Series | X | Un-Metered |
| OTL-R5IM | 5:1 R-Series | X | Un-Metered & In-line Meter |
| OTL1215-T5E | 5:1 T-Series | 1/2" x 15m Reel | Metered |
| OTL1215-T5 | 5:1 T-Series | 1/2" x 15m Reel | Un-Metered |
| OTL1215-T5IM | 5:1 T-Series | 1/2" x 15m Reel | Un-Metered & In-line Meter |
| OTL-T5E | 5:1 T-Series | X | Metered |
| OTL-T5 | 5:1 T-Series | X | Un-Metered |
| OTL-T5IM | 5:1 T-Series | X | Un-Metered & In-line Meter |
| OTL1215-L5 | 5:1 Stub | 1/2" x 15m Reel | Metered |
| OTL1215-L5E | 5:1 Stub | 1/2" x 15m Reel | Un-Metered |
| OTL1215-L5IM | 5:1 Stub | 1/2" x 15m Reel | Un-Metered & In-line Meter |
| OTL-L5 | 5:1 Stub | X | Metered |
| OTL-L5E | 5:1 Stub | X | Un-Metered |
| OTL-L5IM | 5:1 Stub | X | Un-Metered & In-line Meter |
| OTL-DP194W | 3/4" DDP | X | 3/4" 4 Way Valve |
| OTL1215-DP13AF | 1/2" DDP | 1/2" x 15m Reel | Metered |
| OTL1215-DP13AFE | 1/2" DDP | 1/2" x 15m Reel | Un-Metered |
| OTL-DP13AF | 1/2" DDP | X | Metered |
| OTL-DP13AFE | 1/2" DDP | X | Un-Metered |
The information contained in this data sheet is based on data considered to be accurate. No warranty is expressed or implied regarding the accuracy of this data. Product specifications and availability are subject to change without notice. Lube Control Pty Ltd accepts no responsibility for any loss or damage arising from the use of this information.
Technical Documents
OTSB Wall Tank Kits Brochure
Download PDF
Double Wall Tanks Sell Sheet - TDS
Download PDF
OTSB Wall Tank Kits Brochure - TDS
Download PDFDisclaimer
Technical specifications may change. Please confirm with the manufacturer.
