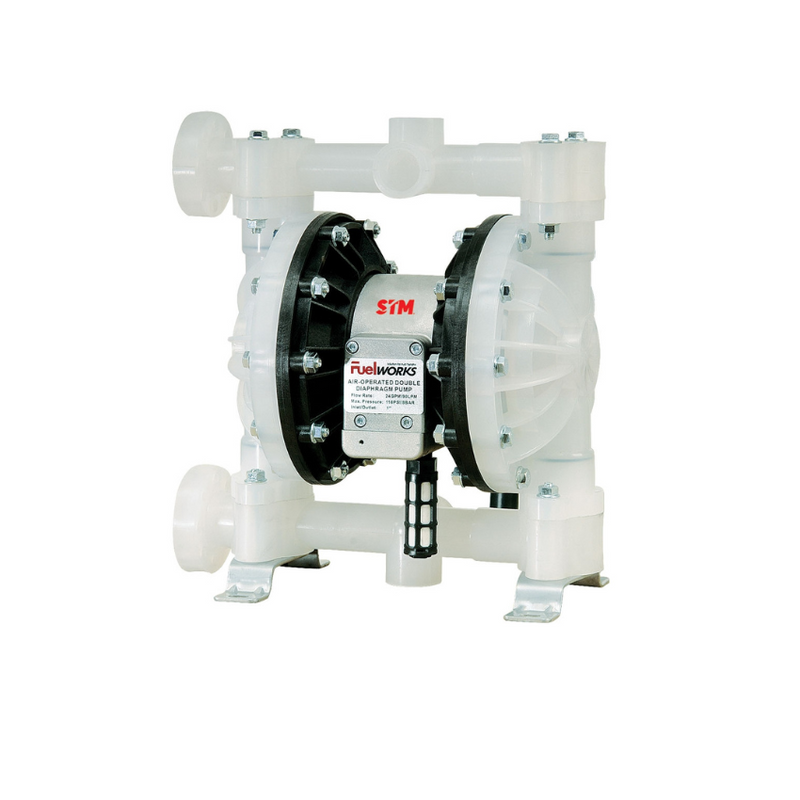

STM Air Operated Diaphragm Pump - Polypropylene 1
The DITI17151201 is an air-operated diaphragm pump constructed from polypropylene, delivering 90 litres per minute through 1" BSP inlet and outlet connections. Powered via a 1/4" air inlet and rated to 115 PSI, it handles solids up to 1/8" in diameter and includes grounding capability to eliminate static discharge. Buna seals are fitted as standard, with Buna-N (Nitrile) and Viton elastomer options available to meet abrasion, temperature, and chemical compatibility requirements.
Technical Specifications
| Model | DITI17151201 |
| Construction | Polypropylene |
| Flow Rate | 90 litres per minute |
| Inlet / Outlet Connection | 1" BSP |
| Air Inlet | 1/4" |
| Maximum Pressure | 115 PSI |
| Maximum Diaphragm Solid | 1/8" |
| Standard Seals | Buna ā Buna-N (Nitrile) and Viton available as alternatives |
Features
| ā¢Polypropylene construction ā chemical resistant body suitable for a wide range of fluid transfer applications |
| ā¢High flow rate of 90 litres per minute via 1" BSP connections ā suitable for high-volume drum and container transfer |
| ā¢Handles diaphragm solids up to 1/8" ā suitable for slightly viscous or particle-containing fluids |
| ā¢Grounding capability included ā eliminates static discharge risk when transferring flammable or volatile fluids |
| ā¢Multiple elastomer options ā Buna-N (Nitrile) and Viton available to meet specific abrasion, temperature, and chemical compatibility requirements |
Supplied by Lube Control Pty Ltd ā call 1300 917 946 or visit lubecontrol.com.au for seal options and technical support.
