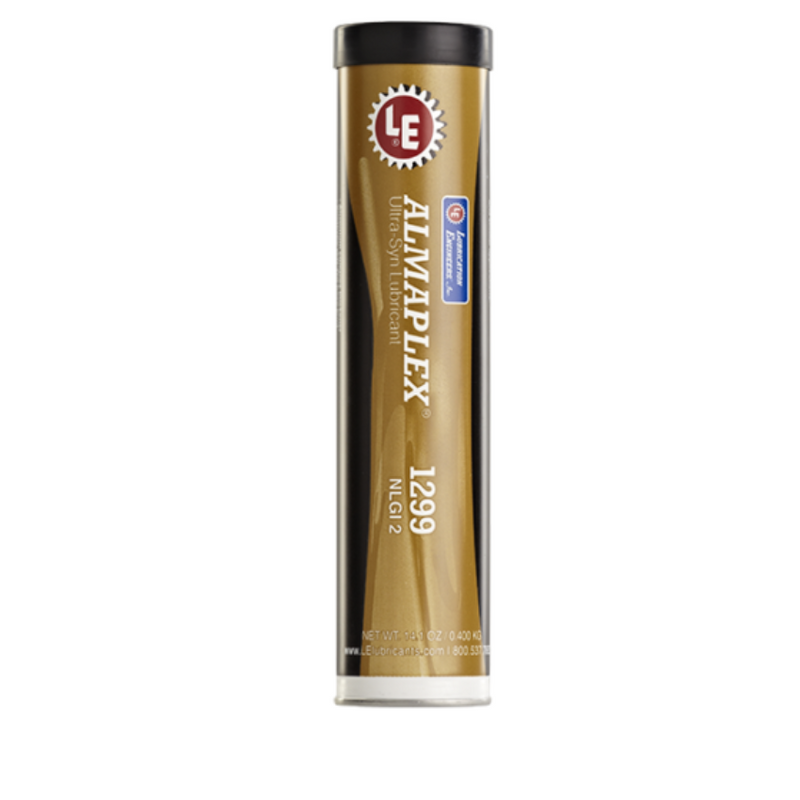

LE Almaplex Ultra-Syn Lubricant NLGI 1
LE Almaplex® Ultra-Syn Lubricant (1299, 1298, 1297 & 1295) is a heavy-duty synthetic grease that delivers optimum performance under extreme operating conditions. An aluminium complex thickened grease made with an ISO 460 viscosity synthetic base fluid and LE’s proprietary Almasol® and Quinplex® additives, it provides superior high-temperature functionality, low-temperature pumpability and excellent performance in the presence of water. Almaplex 1299 and 1298 provide 73 percent higher extreme pressure performance than competitive grease in the Four Ball EP Test, and in the Water Spray-Off Test competitive greases lost almost six times more grease. Almaplex 1297 and 1295 are semifluid greases with superior film strength for heavily loaded bearings in cold temperatures and gearboxes requiring a semifluid grease.
GRADE COMPARISON
| Property | 1299 | 1298 | 1297 | 1295 |
| Thickener Type | Aluminum Complex | Aluminum Complex | Aluminum Complex | Aluminum Complex |
| Texture | Stringy | Stringy | Stringy | Stringy |
| Color | Gold | Gold | Gold | Gold |
| NLGI Grade | 2 | 1 | 0 | 000 |
| Worked 0 Penetration (ASTM D217) | – | – | – | 457 |
| Worked 60 Penetration (ASTM D217) | 287 | 320 | 361 | – |
| Worked 10K Penetration (ASTM D217) | 290 | 331 | – | – |
| Dropping Point (ASTM D2265) | 273°C (523°F) | 273°C (523°F) | – | – |
| Base Fluid Flash Point (ASTM D92) | 232°C (450°F) | 232°C (450°F) | 232°C (450°F) | 232°C (450°F) |
| Base Fluid Viscosity @ 40°C, cSt (ASTM D445) | 460 | 460 | 460 | 460 |
| Corrosion Prevention, DI H2O (ASTM D1743) | Pass | Pass | Pass | Pass |
| Corrosion Prevention, 3% Sea H2O (ASTM D5969) | Pass | Pass | Pass | Pass |
| EMCOR Rust Test, DI H2O (ASTM D6138) | 0,0 | 0,1 | – | – |
| Oil Separation, 30 hrs @ 100°C (212°F), % bleed (ASTM D6184) | <2 | 5 | – | – |
| Timken OK Load, lbs (ASTM D2509) | 55 | 55 | 55 | 55 |
| Four-Ball EP Weld Point, kgf (ASTM D2596) | 315 | 315 | – | – |
| Four-Ball EP Load Wear Index, kgf (ASTM D2596) | 69.7 | 64.2 | – | – |
| Four-Ball Wear @ 75°C (167°F), 1,200 rpm, 40 kgf, 60 min, mm (ASTM D2266) | 0.49 | 0.49 | – | – |
| Water Spray-off, % loss (ASTM D4049) | 6.6 | 15.0 | – | – |
| Water Wash-out @ 80°C (176°F), % loss (ASTM D1264) | 0.45 | 1.5 | – | – |
| Copper Corrosion, 24 hrs @ 100°C (212°F) (ASTM D4048) | 1b | 1b | 1b | 1b |
KEY FEATURES
| •Provides superior protection against wear |
| •Performs exceptionally well under heavy loads and shock loading |
| •Long-lasting corrosion inhibitors provide excellent resistance – even from seawater |
| •Highly resistant to water spray-off and wash-out |
| •Broad operating range of -40°C (-40°F) to 232°C (450°F) |
| •Remains pumpable at low temperatures; 1297 & 1295 at extremely low temperatures |
| •Enhanced thermal and oxidation stability for longer service life |
| •Reverts to grease consistency, even after exposure to high temperatures |
| •Resists mechanical shear |
| •Low volatility |
| •Superior film strength due to cohesion and adhesion capacity |
| •1299 can be used in couplings where AGMA CG-1, CG-2 and CG-3 lubricants are recommended |
APPLICATIONS
| Almaplex 1299 & 1298 | Ball mill and kiln pinion support bearings; construction, agricultural and mining equipment; couplings (1299 only); extruders; filter presses and dewatering presses; hammer mills; paper mill wet end, press rolls, felt rolls and calendar stack bearings; steel mill hot and heavily loaded bearings |
| Almaplex 1297 & 1295 | Automatic lubrication systems; heavily loaded bearings in cold-temperature operations; heavily loaded gearboxes that require a semifluid grease; leaky gearboxes; printing presses; sealed bearings operating at elevated temperatures |
ADDITIONAL INFORMATION
| Available Grades | NLGI 2 (1299), NLGI 1 (1298), NLGI 0 (1297), NLGI 000 (1295) |
The information contained in this data sheet is based on data considered to be accurate. No warranty is expressed or implied regarding the accuracy of this data. Product specifications and availability are subject to change without notice. Lube Control Pty Ltd accepts no responsibility for any loss or damage arising from the use of this information.
