Cabinet Pumps 60lt/80lt/100lt (DAF3000 Series - 240 Volt)

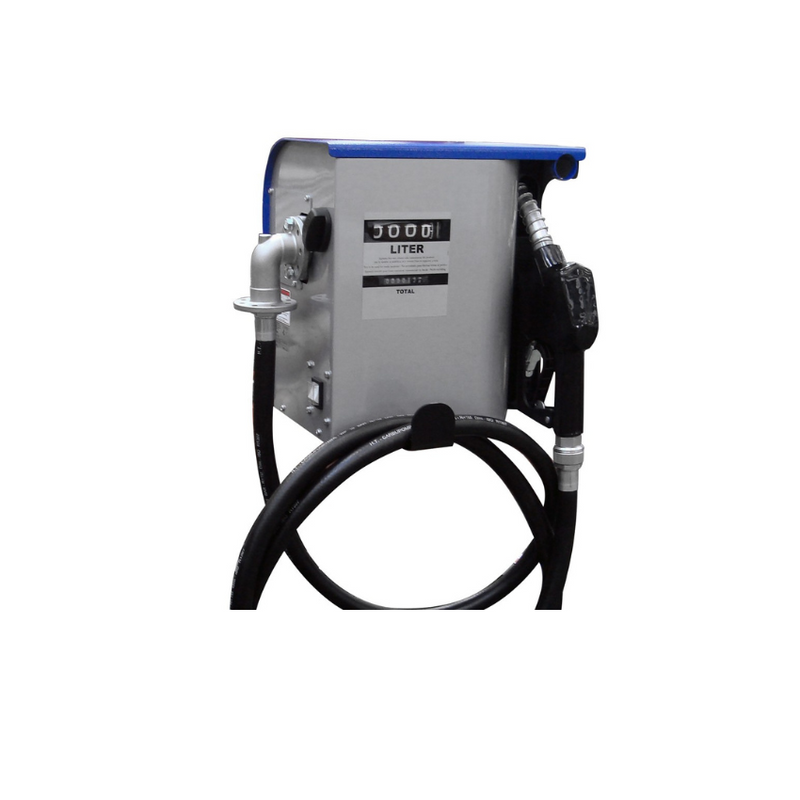

The STM DAF3060 is a 240 Volt cabinet pump from the Italian-manufactured DAF3000 Series, delivering 60 litres per minute for reliable diesel distribution. The body is fabricated entirely from painted metal and comes complete as a self-contained unit — including a self-priming vane pump, mechanical meter, 4 metre delivery hose, automatic nozzle with swivel connector, ignition switch and mounting plate for the suction pipe. The compact design and built-in nozzle port make this distributor an efficient and dependable workshop fuelling solution.
Product Specifications
| Model | DAF3060 |
| Power Supply | 230V AC |
| Max Current | 2A |
| Flow Rate | 60 LPM |
| Working Cycle | S2 — 30 minutes |
| Inlet/Outlet | 1" BSP-G |
| Suction Tube Length | 480mm |
| Delivery Hose | 4m, Ø20mm, rubber, 1" × 3/4" fittings |
| Nozzle | Automatic with swivel connector |
| Cable | 2 metre — 3 pin plug |
| Motor Protection Rating | IP55 |
| Allowed Fluids | Diesel only |
| Forbidden Fluids | Gas, gasoline, alcohol, water |
Features & Benefits
| •High quality Italian manufactured diesel distribution system |
| •Body fabricated entirely from painted metal for a robust, long-service build |
| •Self-priming vane pump delivering 60 LPM for fast and efficient diesel dispensing |
| •Mechanical meter included for accurate monitoring of dispensed volume |
| •Automatic control valve with swivel connector for convenient, controlled dispensing |
| •Nozzle port built into the structure for a compact, integrated layout |
| •Ignition switch and suction pipe mounting plate included for a complete, ready-to-install setup |
| •IP55-rated motor protection for dependable operation in workshop and depot environments |
The information contained in this data sheet is based on data considered to be accurate. No warranty is expressed or implied regarding the accuracy of this data. Product specifications and availability are subject to change without notice. Lube Control Pty Ltd accepts no responsibility for any loss or damage arising from the use of this information.
Out of stock ? / Ordering a large item?
Contact our team to confirm availability, delivery options, and customised freight costs for oversized or heavy products before placing your order.
sales@lubecontrol.com.au
1300 917 946
+61 8 8298 5563
Technical Documents
DAF3000 Series - 240 Volt
Download PDF
