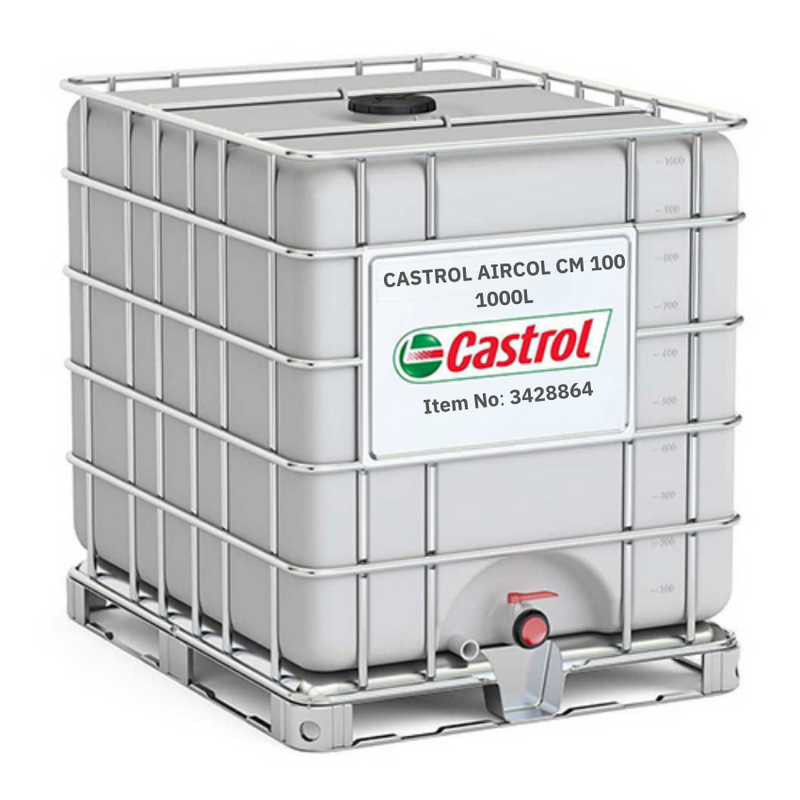

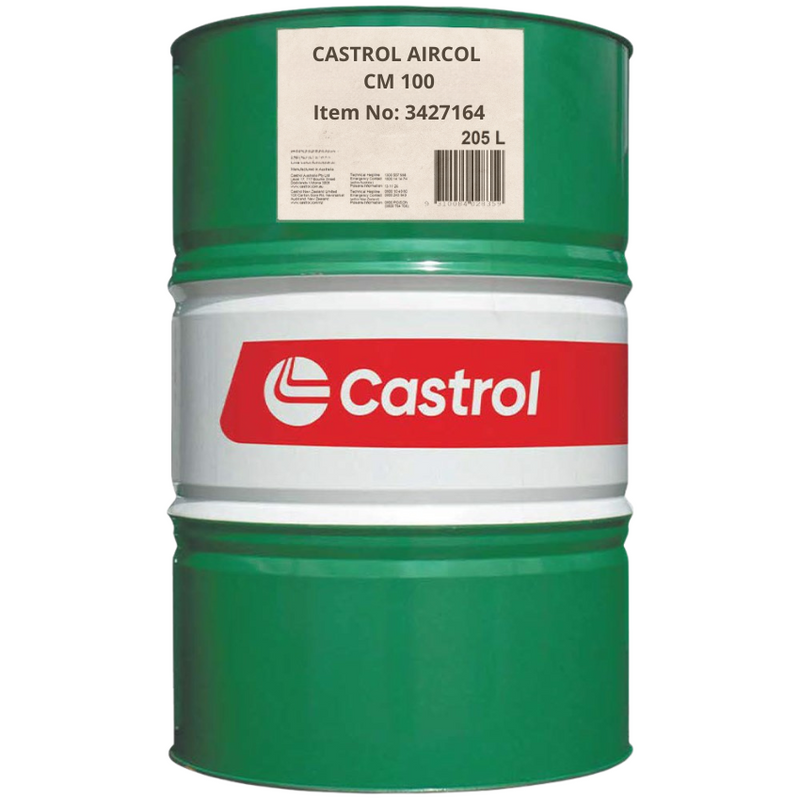

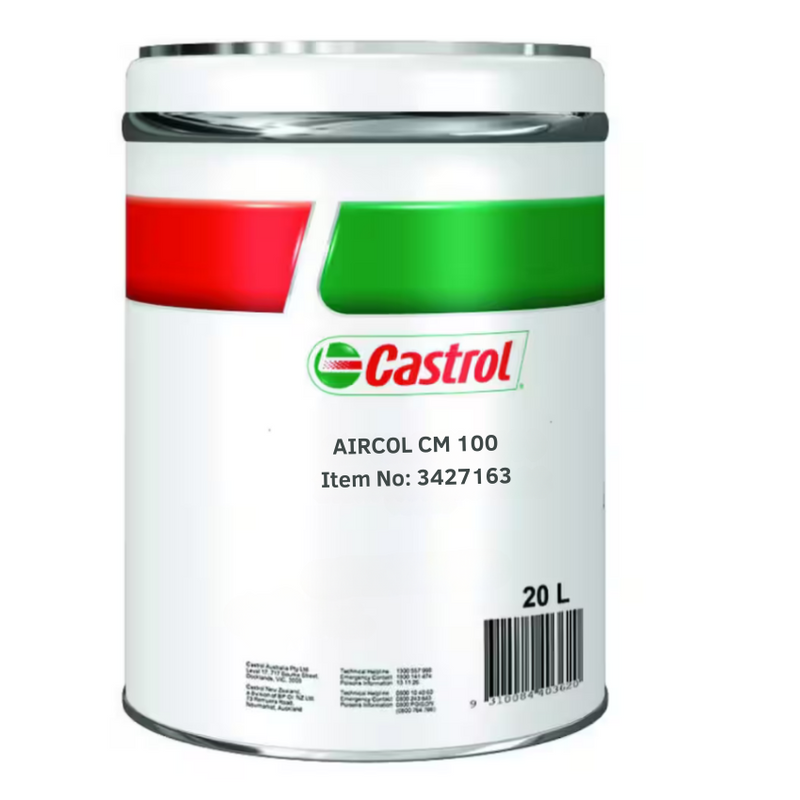

Castrol Aircol CM 100
The Castrol Aircol™ CM compressor oil range comprises high quality lubricants based on highly refined mineral oil, enhanced with additive technology to provide excellent thermal and oxidative stability and good load carrying capacity. Aircol CM 100 is formulated without zinc additives (ashless oil) and is recommended for the lubrication of rotary screw and reciprocating compressors; as a general guide, it would be selected for lubricating the crankcase and cylinders of reciprocating compressors, subject to the compressor manufacturer's recommendation. Aircol CM oils exhibit low carbon forming tendencies and meet the requirements of the DIN 51506 VDL classification for reciprocating compressors with air discharge temperatures up to 220°C, and are designed to meet service drain intervals of up to 4000 hours in continuous rotary screw operation up to 90°C. Aircol CM 100 is fully compatible with the Castrol Aircol PD and MR ranges.
CLASSIFICATION
| Standard | ISO 6743-3 Compressor Oils |
| DAA & DAB | Reciprocating (piston) and drip-fed rotary air compressors |
| DAG & DAH | Oil-flooded rotary screw air compressors |
KEY FEATURES
| •Good water separation characteristics allow condensation to readily separate from the oil, minimising the risk of emulsions that could block the oil separator element |
| •Fully inhibited against corrosion, enabling protection even when operating under humid conditions |
| •Good thermal stability, low volatility, and low carbon formation reduce the risk of fire and explosion and lead to a longer operating life (up to 4000 hours) |
| •Low deposit forming tendencies extend oil change intervals and provide longer air filter life, contributing to a reduction in maintenance costs |
| •Excellent coalescing properties mean little carry-over of oil in the air stream |
| •High load carrying capacity to meet the requirements of geared compressor units |
TECHNICAL SPECIFICATIONS
| Appearance | Clear & Bright (Visual) |
| ISO Viscosity Grade | 100 |
| Density @ 15°C / 59°F | 866 kg/m³ (ISO 12181 / ASTM D4052) |
| Kinematic Viscosity @ 40°C / 104°F | 100 mm²/s (ISO 3104 / ASTM D445) |
| Kinematic Viscosity @ 100°C / 212°F | 11.5 mm²/s (ISO 3104 / ASTM D445) |
| Viscosity Index | 95 (ISO 2909 / ASTM D2270) |
| Pour Point | -33°C / -27°F (ISO 3016 / ASTM D97) |
| Foam Sequence I - tendency / stability | 0 / 0 ml/ml (ISO 6247 / ASTM D892) |
| Water Separation @ 82°C / 180°F (40/37/3) | 5 minutes (ISO 6614 / ASTM D1401) |
| Flash Point - open cup method | 240°C / 464°F (ISO 2592 / ASTM D92) |
| Rust Test - Synthetic Seawater (24 hrs) | Pass (ISO 7120 / ASTM D665B) |
| FZG Gear Scuffing Test - A/8.3/90 | > 12 (ISO 14635-1) |
| Oxidation Stability - Rotating Pressure Vessel Test | 1500 minutes (ASTM D2272) |
Data Sheet Date: 21 Sep 2021
The information contained in this data sheet is based on data considered to be accurate. No warranty is expressed or implied regarding the accuracy of this data. Product specifications and availability are subject to change without notice. Lube Control Pty Ltd accepts no responsibility for any loss or damage arising from the use of this information.
Out of stock ? / Ordering a large item?
Contact our team to confirm availability, delivery options,
and customised freight costs for oversized or heavy products before placing
your order.
sales@lubecontrol.com.au
1300 917 946
+61 8 8298 5563
Technical Documents
Aircol CM 100 -TDS
Download PDFDisclaimer
Product details and specifications are for reference only and subject to change without notice. Customers must independently verify all technical data and OEM approvals directly with the manufacturer prior to purchase. We accept no liability for any errors, omissions, or damages arising from reliance on this information.
