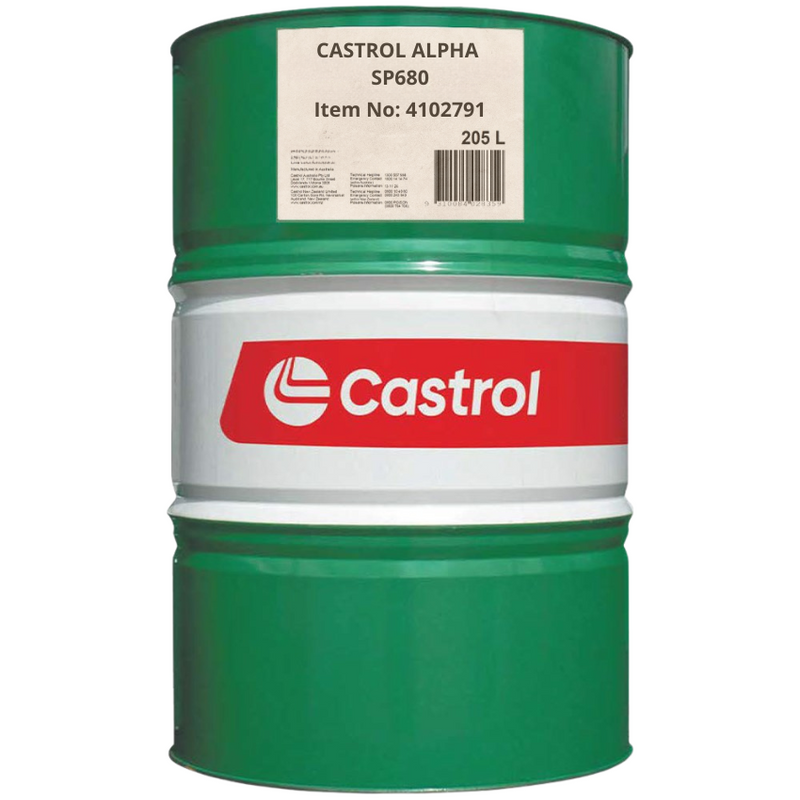

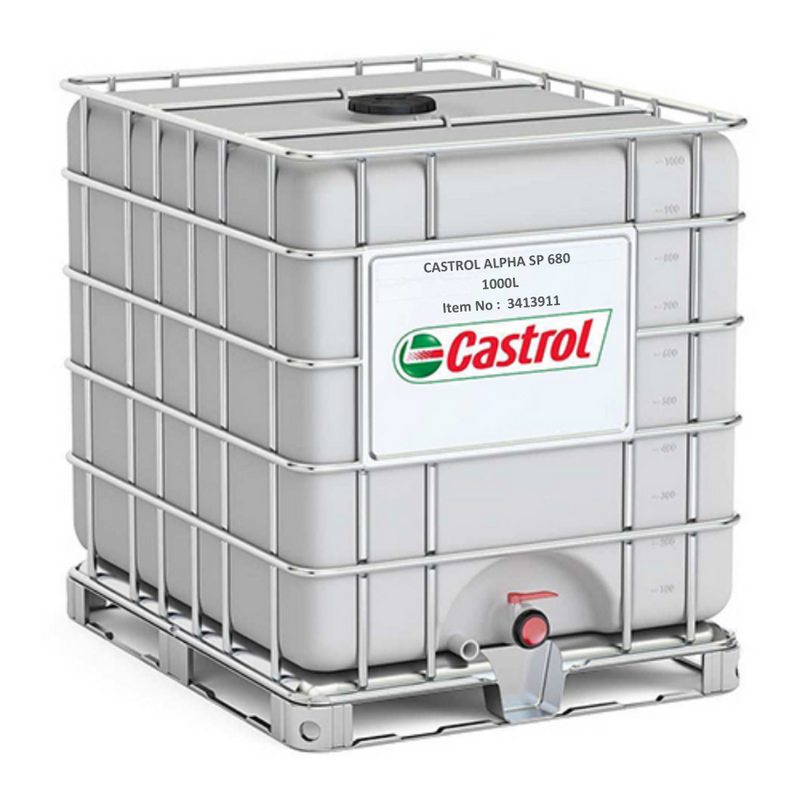

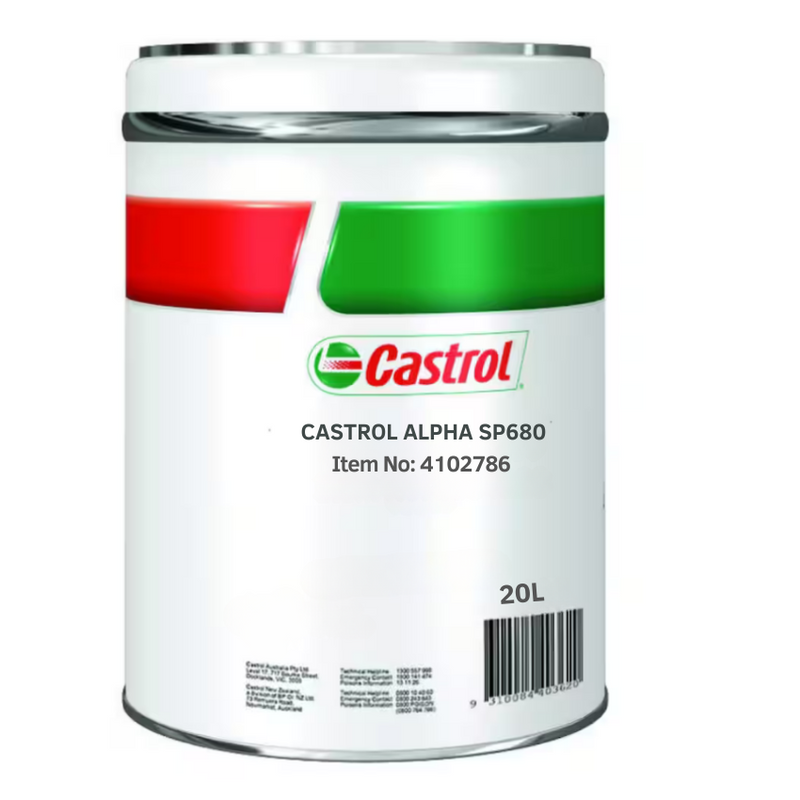

Castrol Alpha SP 680
Castrol Alpha™ SP 680 gear oil is based upon highly refined mineral oil, enhanced with an extreme pressure additive technology that provides good thermal stability and high load carrying capacity. The extreme pressure additive system not only delivers high load carrying capacity, but was designed to provide microscopic wear protection – also known as micropitting protection – which is critical in preventing destructive wear at the micro level, extending gear life and meeting the evolving demands of smaller, higher output gear boxes. It is recommended for the lubrication of industrial gear boxes using forced circulation or splash and oil bath lubrication, and may be used for spur and helical gears as well as some lightly loaded worm type gear applications. It has very good viscosity characteristics to ensure starting torques are not excessively high in cold operating conditions, and its additives are compatible with the ferrous and non-ferrous metals used in industrial gear units and with the most common types of seal materials.
TECHNICAL SPECIFICATIONS
| AGMA No. | 8EP |
| ISO Viscosity Grade | 680 |
| Density @ 15°C/59°F | 920 kg/m³ |
| Kinematic Viscosity @ 40°C/104°F | 680 mm²/s |
| Kinematic Viscosity @ 100°C/212°F | 37.3 mm²/s |
| Viscosity Index | 85 |
| Pour Point | -6°C |
| Flash Point – Open Cup Method | 230°C |
| Foam Sequence I – Tendency / Stability | 10/0 ml/ml |
| Copper Corrosion (3 hrs @ 100°C/212°F) | 1b (Rating) |
| Rust Test – Synthetic Seawater (24 hrs) | Pass (Rating) |
| Timken OK Load Test | 43/95 kg/lb |
| FZG Gear Scuffing Test – A/8.3/90 | >12 (Failure Load Stage) |
| FZG Micropitting Test @ 90°C/194°F | >10/High (Failure Load Stage / Micropitting Rating) |
Subject to usual manufacturing tolerances.
KEY FEATURES
| •Extreme Pressure (EP) performance protects gears against wear and shock-loading, as measured by FZG performance and demonstrated extensively in the field |
| •Alpha SP ‘Clean gear’ additive technology provides low deposit formation |
| •Good water separation and demulsification |
| •High protection against corrosion and wear |
PRODUCT PERFORMANCE CLAIMS
| •Meets the requirements of DIN 51517 Part 3 |
| •DIN Classification: CLP |
Data Sheet Date: 24 Mar 2016
The information contained in this data sheet is based on data considered to be accurate. No warranty is expressed or implied regarding the accuracy of this data. Product specifications and availability are subject to change without notice. Lube Control Pty Ltd accepts no responsibility for any loss or damage arising from the use of this information.
