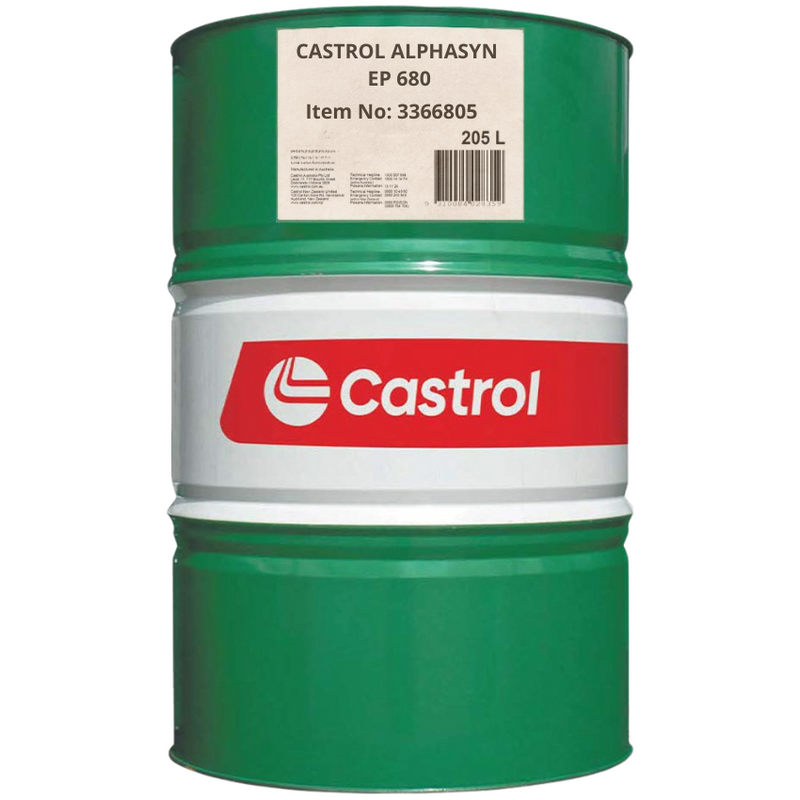

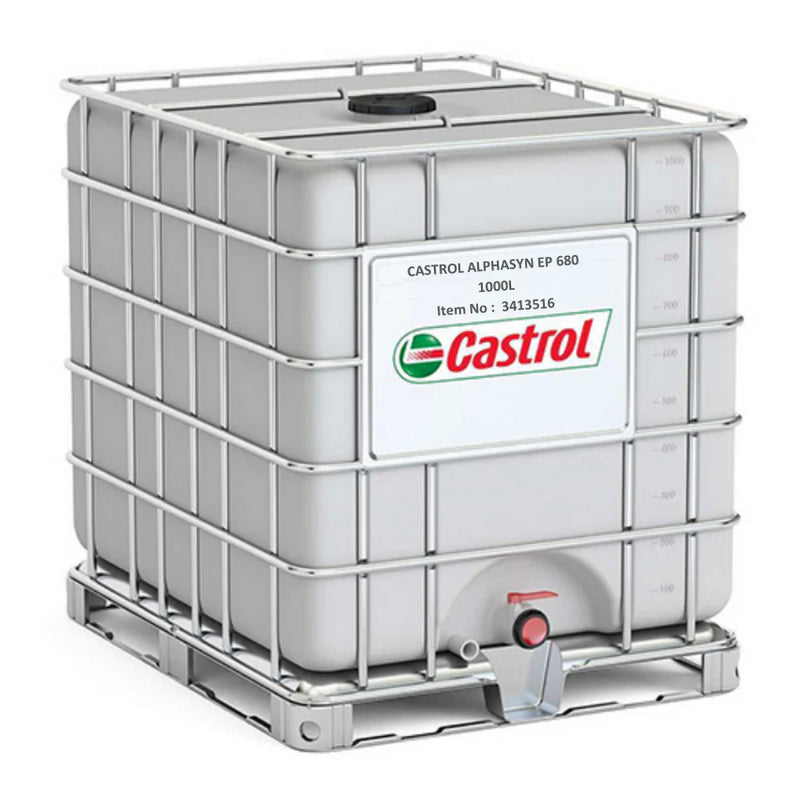

Castrol Alphasyn EP 680
The Castrol Alphasyn™ EP gear oil range comprises high quality synthetic lubricants based on poly-alphaolefin (PAO) fluids with sulphur/phosphorus Extreme Pressure (EP) additive technology, providing good thermal stability and high load carrying capacity. Formulated for all types of enclosed gears including heavy and shock-loaded gears and bearings, Alphasyn EP suits gear boxes requiring micro-pitting resistance and extreme environments such as mining and quarrying, marine applications, and paper production. The PAO base stock provides an inherently high Viscosity Index and low pour points for use across a wide temperature range, and the range is fully compatible with nitrile, silicone, and fluoropolymer seal materials.
TECHNICAL SPECIFICATIONS
| Property | EP 150 | EP 220 | EP 320 | EP 460 | EP 680 |
| Density @ 15°C / 59°F (kg/m³) | 860 | 860 | 860 | 860 | 870 |
| Kinematic Viscosity @ 40°C / 104°F (mm²/s) | 151 | 223 | 326 | 455 | 671 |
| Kinematic Viscosity @ 100°C / 212°F (mm²/s) | 19.8 | 26.4 | 35.5 | 46.5 | 63.4 |
| Viscosity Index | 150 | 152 | 155 | 161 | 167 |
| Pour Point (°C / °F) | -45/-49 | -45/-49 | -45/-49 | -45/-49 | -42/-44 |
| Flash Point, open cup method (°C / °F) | 242/468 | 244/471 | 240/464 | 242/468 | 254/489 |
| Foam Sequence I (tendency/stability, ml) | 0/0 | 20/0 | 20/0 | 20/0 | 20/0 |
| Rust Test, synthetic seawater (24h) | Pass | Pass | Pass | Pass | Pass |
| FZG Gear Scuffing Test A/8.3/90 (Failure Load Stage) | >12 | >14 | >14* | >14* | >14* |
| FZG Gear Scuffing Test A/16.6/90 modified (Failure Load Stage) | >12 | >14 | >14* | >14* | >14* |
| FZG Micropitting Test @ 90°C/194°F (Failure Load Stage / Rating) | 10 (High) | 10 (High) | 10 (High)* | 10 (High)* | 10 (High)* |
| FE-8 Bearing Wear Test, roller weight loss (mg) | <5 | <5 | <5* | <5* | <5* |
*read across from lower viscosity.
KEY FEATURES
| •Full EP performance* gives maximum protection of gears against wear and shock loading, including protection against micro-pitting |
| •Good thermal and oxidative stability provides reliable operation and extended operating life when compared to mineral oil based products |
| •High corrosion protection for gears |
| •Inherently high Viscosity Index (VI) makes the product suitable for operations over a wide temperature range |
| •Rapid air release and good performance in the Flender Foam Test prevents foaming and bearing damage |
| •Good water separation and demulsification characteristics reduce down time through prolonged lubricant life and increased equipment reliability |
| •PAO based lubricant provides good compatibility with seals, paints, and mineral oil based lubricants |
CLASSIFICATIONS & APPROVALS
| •DIN Classification: CLP-HC |
| •Meets DIN 51517 Part 3 |
| •Meets AGMA 9005 - F16 |
| •Meets AIST 224 |
| •Meets David Brown S1.53.101 Type E |
| •Meets Flender Gear Units Rev 16 for Helical-, Bevel- and Planetary Gear Units, ISO VG 150 - 680 |
Data Sheet Date: 11 Oct 2023
