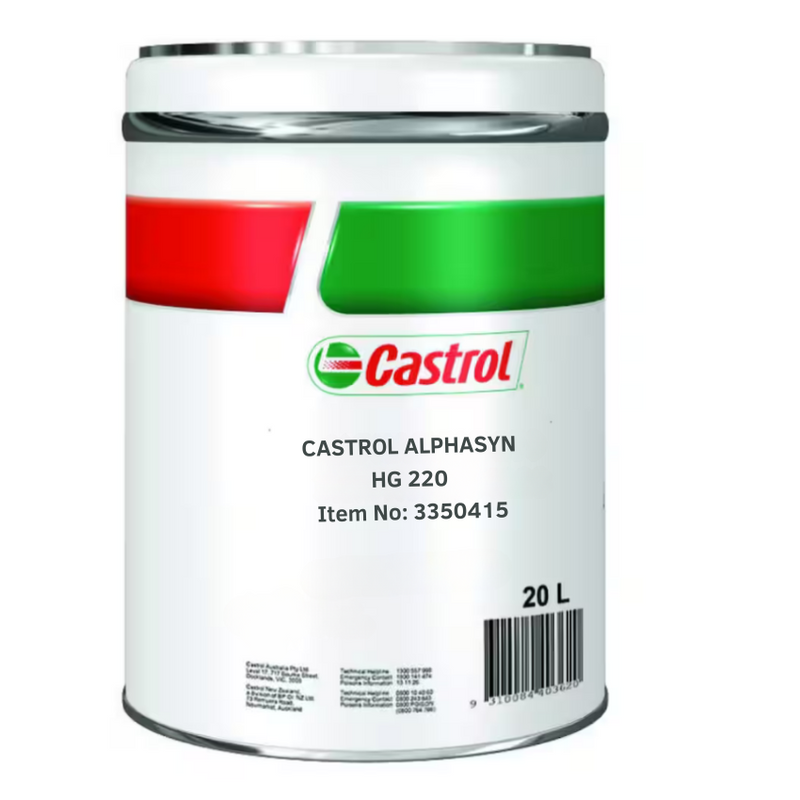

Castrol Alphasyn HG 220 20L
Alphasyn HG synthetic fluids are polyalphaolefin based, synthetic high performance lubricants formulated with specially selected additives to offer a range of fluids for use in both gear and bearing applications. The range has been designed to offer specific performance benefits over its conventional mineral oil and synthetic fluid counterparts. Particularly suitable for applications at high operating temperatures and loadings, Alphasyn HG provides superior performance benefits including excellent thermal and oxidation stability and enhanced load carrying ability.
Advantages
| •Substantially extended lubricant life |
| •Excellent anti-wear, extreme pressure and load carrying properties leading to savings in both maintenance time and costs |
| •Exceptional lubricity properties increase mechanical efficiency and minimise energy losses |
| •Proven superior performance across a wide temperature range and in particular at high temperatures |
| •Excellent thermal and oxidative stability |
| •Advanced lubricant properties such as viscosity characteristics, low pour point and good air and water separation capabilities |
| •Fully compatible with standard seal, paint and hose material, and with Ortlinghaus multi-plate clutches |
| •Passes the standard FZG test (A/8.3/90) with a fail load stage greater than 12 and the more severe FZG test (A/16.6/140) at fail load stage 10 |
Product Performance Claims
| •Approved and recommended by major centrifuge manufacturers for gear case lubrication |
| •Meets the requirements of major marine gearbox manufacturers, including the Ortlinghaus clutch test |
| •Meets DIN 51517 pt 3, Industrial gear oil specification |
| •Meets DIN 51524 pt 2, Industrial hydraulic oil specification |
Typical Characteristics — Alphasyn HG 220
| ISO Grade | 220 | - |
| Density @ 15°C | 0.85 g/ml | ASTM D4052 |
| Viscosity @ 40°C | 220 cSt | ASTM D445 |
| Viscosity @ 100°C | 26.7 cSt | ASTM D445 |
| Viscosity Index | 150 | ASTM D2270 |
| Flash Point, COC | 270°C | ASTM D92 |
| Flash Point, PMCC | 230°C | ASTM D93 |
| Pour Point | -42°C | ASTM D97 |
| Oxidation (KV100 inc) | <1% | ASTM D2893 |
| Steel Corrosion | Pass | IP 135B |
| FZG Gear Failure Load Stage (A/16.6/140) | 10 | DIN 51354 |
| FZG Gear Failure Load Stage (A/8.3/90) | >12 | DIN 51354 |
| Copper Corrosion | 1a | IP 154 |
The information contained in this data sheet is based on data considered to be accurate. No warranty is expressed or implied regarding the accuracy of this data. Product specifications and availability are subject to change without notice. Lube Control Pty Ltd accepts no responsibility for any loss or damage arising from the use of this information.
