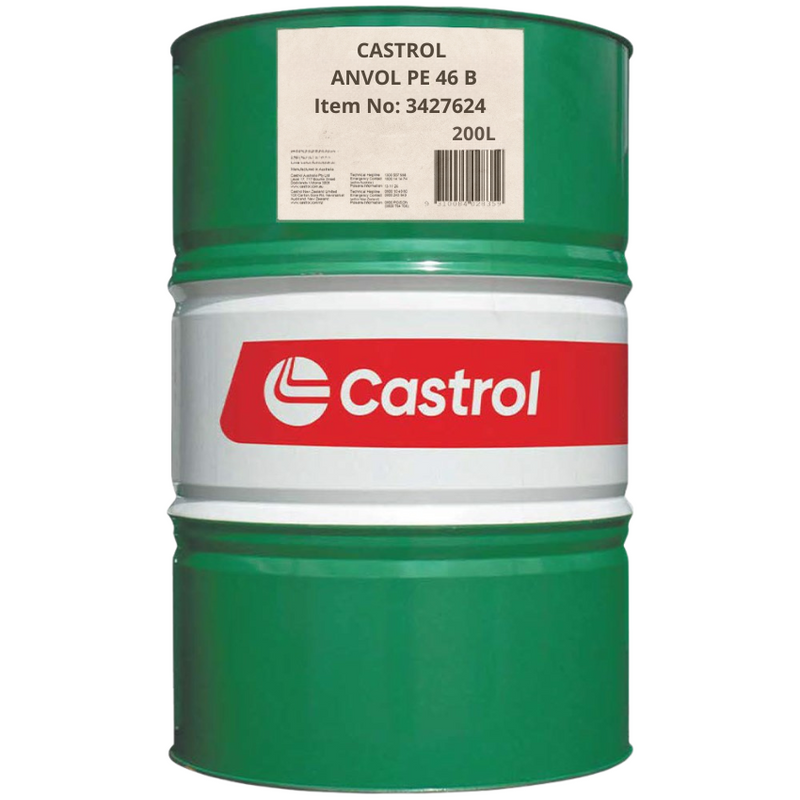

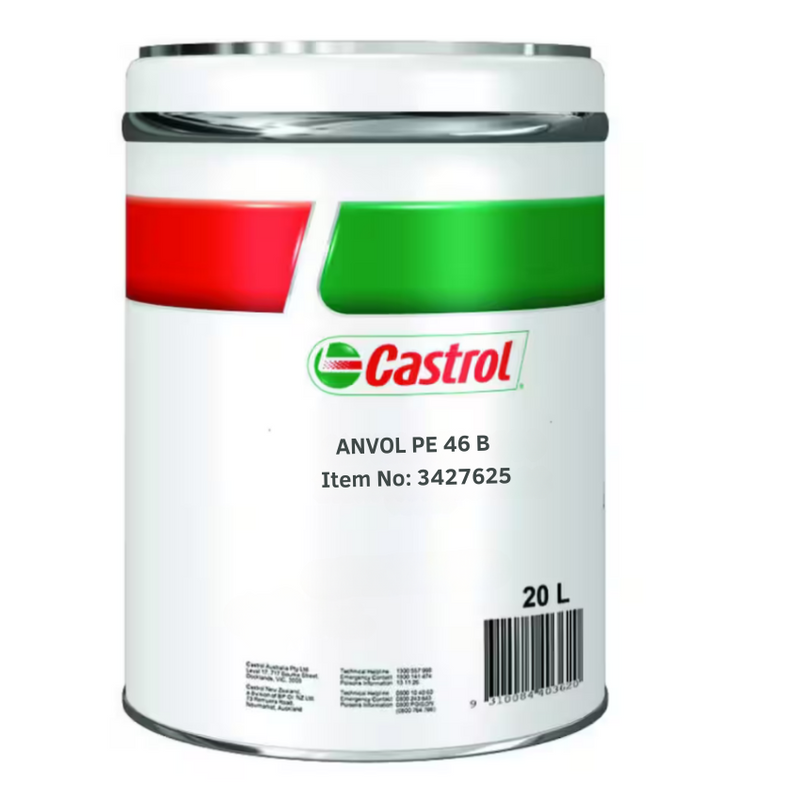

Castrol Anvol PE 46 B
Castrol Anvol PE 46 B is a high performance fire resistant hydraulic fluid primarily intended for use in steam turbine governor and boiler control systems. Based on butylphenyl phosphate esters selected for their excellent hydrolytic stability, and containing carefully selected corrosion and oxidation inhibitors, it delivers excellent hydraulic performance together with good fire risk protection. It is specifically designed for electro-hydraulic governor control systems of steam turbines, including systems using fine tolerance servo valves, and was developed to eliminate service problems in high pressure systems resulting from spool valve erosion or corrosion.
APPROVAL STATUS
| •Meets the requirements of major OEMs such as General Electric, Siemens, Mitsubishi Hitachi Power Systems, and Alstom |
| •Meets the requirement of FM Global against Standard 6930 for "Less flammable hydraulic fluids" |
| •Meets the requirements of ISO Standard 12922 and ASTM D4293 for HFDR-type fire-resistant hydraulic fluids |
KEY FEATURES
| •Offers good fire risk protection in systems where fire resistance is vital and where water-containing fluids are unsuitable due to temperature limitations or the need to maintain a high hydraulic system pressure |
| •High flash point, fire point, and auto-ignition temperature provide excellent fire resistance |
| •High resistivity eliminates spool valve corrosion/erosion due to electrokinetic effects |
| •Low chlorine level minimises valve erosion |
| •High level of fluid cleanliness — minor amounts of particulate contamination can cause abrasive wear, filter blockage, and valve sticking |
TECHNICAL SPECIFICATIONS
| Specific Gravity @ 20°C / 68°F | 1.15 (ISO 3675 / ASTM D1298) |
| Kinematic Viscosity @ 100°C / 212°F | 5.4 mm²/s (ISO 3104 / ASTM D445) |
| Kinematic Viscosity @ 40°C / 104°F | 44.5 mm²/s (ISO 3104 / ASTM D445) |
| Kinematic Viscosity @ 0°C / 32°F | 1676 mm²/s (ISO 3104 / ASTM D445) |
| Pour Point | -24°C (-11°F) (ISO 3016 / ASTM D97) |
| Foam Sequence I - tendency / stability | 10/0 ml/ml (ISO 6247 / ASTM D892) |
| Fluid Cleanliness | Passes -/15/12 (ISO 4406) |
| Water Separation @ 54°C / 129°F (40/37/3) | 5 minutes (ISO 6614 / ASTM D1401) |
| Acid Number | 0.05 mgKOH/g (ISO 6619 / ASTM D664) |
| Air Release @ 50°C / 122°F | 4 minutes (ISO 9120 / ASTM D3427) |
| Water Content | 0.04% wt (ISO 760) |
| Volume Resistivity @ 20°C | 200 MOhm.m (IEC 60247) |
| Flash Point - open cup method | 262°C (504°F) (ISO 2592 / ASTM D92) |
| Fire Point | 354°C (669°F) (ISO 2592 / ASTM D92) |
| Autoignition Temperature (method A) | 540°C (1004°F) (DIN 51794) |
| Autoignition Temperature (method B) | 534°C (993°F) (ASTM E659) |
| Hot Manifold Ignition | No flashing or burning on tube at 726°C (pass) (ISO 20823) |
| Chlorine Content | 6 ppm (Microcoulometric) |
| FZG Gear Scuffing Test - A/8.3/90 | Failure Load Stage 8 (DIN 51354-1) |
COMPATIBILITY
| •Compatible with all metals commonly found in electro-hydraulic control systems |
| •Aluminium components should be hard anodized; copper and copper alloy components should be kept to a minimum |
| •Suitable seal materials: fluoropolymers (Viton), butyl rubber, PTFE, and ethylene propylene rubber (under certain operating conditions) |
| •Where paint materials are used, they should be epoxy resin based |
STORAGE & HANDLING
| •Periodic measurement of the fluid neutralisation number is recommended during service, as this provides a good guide to product degradation |
| •Rigorous flushing is essential when converting systems from other fluids to phosphate esters; remove all scale and check filters, hoses, seals, and internally painted surfaces for compatibility with the new fluid |
| •Avoid prolonged or repeated contact with skin; wash thoroughly after handling |
| •Store all packages under cover. Where outside storage is unavoidable, lay drums horizontally to avoid water ingress and drum marking damage. Do not store above 60°C, exposed to hot sun or freezing conditions |
Data Sheet Date: 18 Jun 2020
