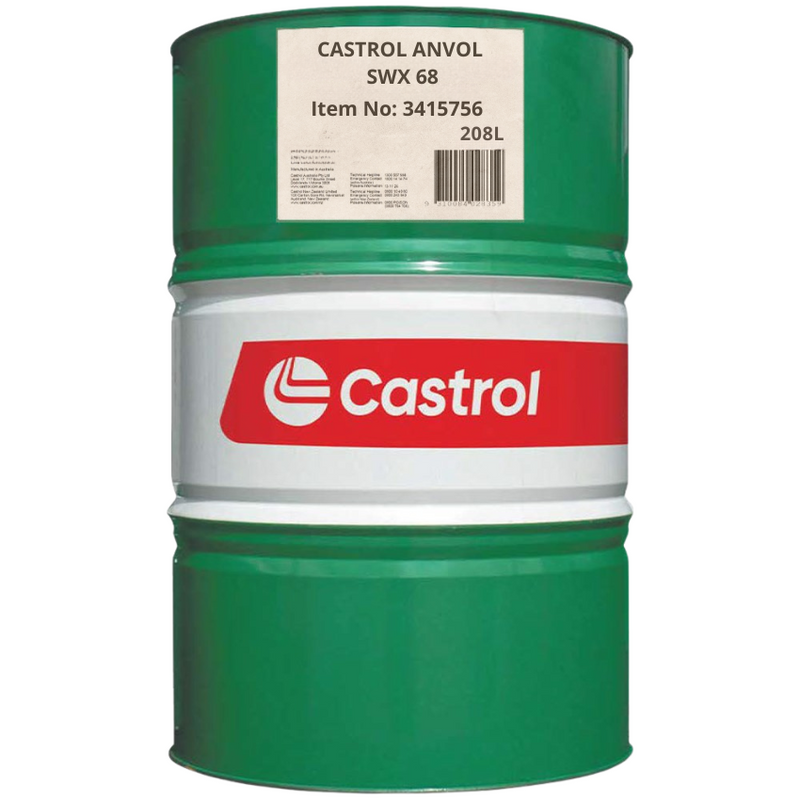

Castrol Anvol SWX 68 208 L
Castrol Anvol™ SWX is an HFDU synthetic polyol ester type fire resistant hydraulic fluid, offering a high degree of lubricity and fire resistance to Factory Mutual Category 1 and approved to Factory Mutual Standard 6930 (January 2020). Formulated for high pressure hydraulic systems up to 7500psi, Anvol SWX combines fire resistance performance with superior system reliability, a reduced tendency to form varnish or sludge, and high levels of corrosion protection. It is fully compatible with nitrile (NBR), hydrogenated NBR, and fluorocarbon rubbers (FKM).
TECHNICAL SPECIFICATIONS
| Density @ 15°C / 59°F | 922 kg/m³ |
| Kinematic Viscosity @ 40°C / 104°F | 62 mm²/s |
| Kinematic Viscosity @ 100°C / 212°F | 12.2 mm²/s |
| Viscosity Index | 180 |
| Pour Point | -33°C |
| Flash Point (open cup method) | 300°C |
| Fire Point | 360°C |
| Autoignition Temperature | 430°C |
| Foam Sequence I (tendency/stability) | 10/0 ml/ml |
| Water Separation @ 54°C / 129°F (40/37/3) | 25 min |
| Air Release @ 50°C / 122°F | 3 min |
| FZG Gear Scuffing Test (A/8.3/90) | Failure Load Stage >12 |
| Rust Test (synthetic seawater, 24hrs) | Pass |
| Oxidation Stability (Rotating Pressure Vessel Test) | 230 min |
| Oxidation Stability (TOST) | 450 hrs |
| Shear Stability (KRL Test, 20hrs) | <1% viscosity loss |
| Factory Mutual (FM 6930) | Pass |
KEY FEATURES
| •High fire point provides superior fire resistance characteristics, creating a safer working environment and greater equipment protection |
| •Shear stable, with fire resistant properties maintained during use |
| •Advanced corrosion inhibition protects ferrous components from residual water, leading to extended equipment life and reduced downtime |
| •Excellent resistance to oxidation and thermal degradation reduces sludges and varnish and prevents valve sticking, ensuring longer system life and longer drain periods |
| •Good antiwear performance gives excellent wear protection and reduces downtime from unscheduled maintenance |
CLASSIFICATIONS & APPROVALS
| •DIN 51502 classification: HFD-U |
| •ISO 6743/4: Hydraulic Oils Type HFDU |
| •Factory Mutual approved: Standard 6930 (January 2020) |
Data Sheet Date: 05 Mar 2025
The information contained in this data sheet is based on data considered to be accurate. No warranty is expressed or implied regarding the accuracy of this data. Product specifications and availability are subject to change without notice. Lube Control Pty Ltd accepts no responsibility for any loss or damage arising from the use of this information.
