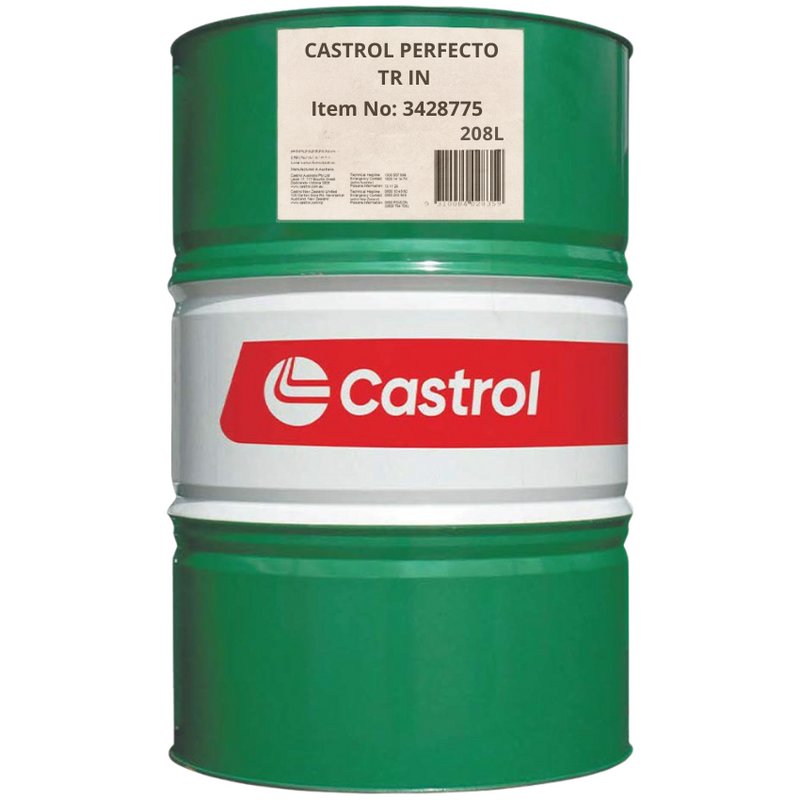

Castrol Perfecto TR IN 208L
Castrol Perfecto™ TR IN (previously called Inhibited Transformer Oil) is a pure mineral hydrocarbon oil, specially refined and blended from selected crudes. It is an inhibited product, optimised for high performance to meet the stringent requirements of International Standard IEC 60296, Edition 4.0, 2012-02. It is designed for use as a high performance transformer, switchgear and circuit breaker oil which conforms to the international specification IEC 60296:2012, inhibited oil.
TECHNICAL SPECIFICATIONS
| Kinematic Viscosity @ -30°C | 1080 mm²/s |
| Kinematic Viscosity @ 40°C | 8.7 mm²/s |
| Flash Point – Closed Cup Method | 144°C |
| Pour Point | -60°C |
| Density @ 20°C | 0.882 kg/m³ |
| Neutralisation Value | <0.01 mgKOH/g |
| Corrosive Sulphur | Non-corrosive |
| Polycyclic Aromatic Mass | <3% |
| PCB Content | Not detectable |
| Water Content: Bulk, Drums | <15, <25 ppm |
| Dielectric Dissipation Factor at 90°C | <0.001 |
| Breakdown Voltage on Delivery | >40 kV |
| Oxidation Stability at 120°C, 500h | – |
| – Acidity after Oxidation | 0.08 mgKOH/g |
| – Sludge Value | 0.03 % weight |
The above figures are typical of those obtained with normal production tolerance and do not constitute a specification.
KEY FEATURES
| •High dielectric strength and low power loss |
| •Excellent resistance to oxidation leading to enhanced equipment life |
| •Excellent cooling properties |
| •High purity and flash point |
| •Excellent low temperature fluidity, allowing use in extreme climates |
This product was previously called Inhibited Transformer Oil. The name was changed in 2015.
Data Sheet Date: 12 Jul 2019
The information contained in this data sheet is based on data considered to be accurate. No warranty is expressed or implied regarding the accuracy of this data. Product specifications and availability are subject to change without notice. Lube Control Pty Ltd accepts no responsibility for any loss or damage arising from the use of this information.
