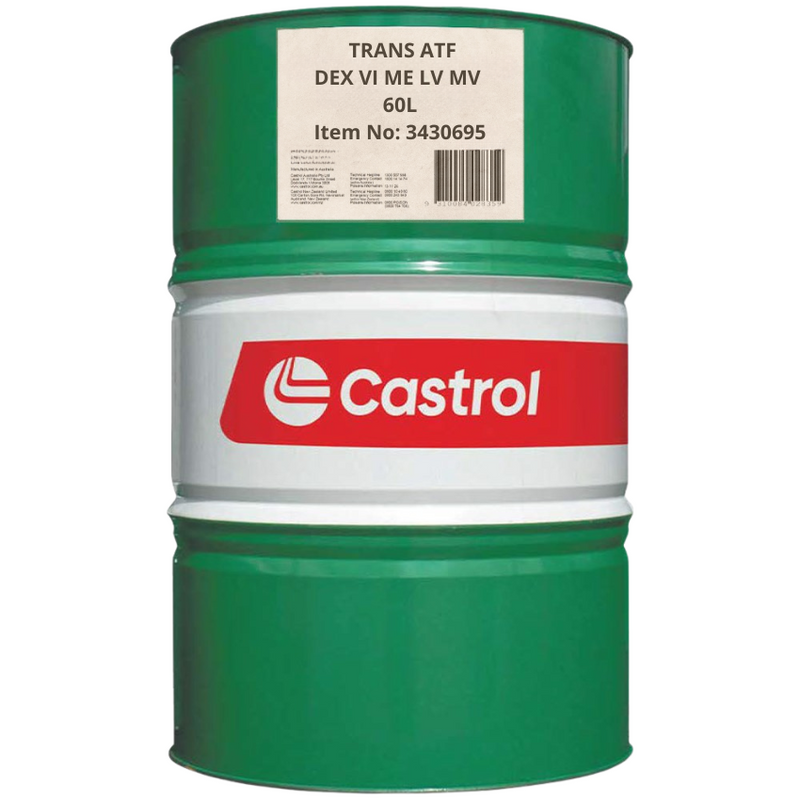

Castrol Trans Atf Dex Vi Me Lv Mv
Castrol Transmax ATF DEXRON®-VI MERCON® LV Multivehicle, formulated with Smooth Drive Technology™, is a Full Synthetic Technology formulation designed for modern automatic transmissions, delivering enhanced protection and a smoother drive for longer. It is approved and licenced by GM and Ford for use in vehicles requiring their latest ATF specifications, and also exceeds the requirements of JASO-1A for use in most Asian automatic transmissions. It is also suitable for use in the majority of 6, 7, 8, and 9 speed automatics of European cars, meaning it is suitable for use in nearly all passenger car automatic transmissions.
KEY FEATURES
| •OEM approved and licensed by Ford (MERCON® LV) and GM (DEXRON®-VI) |
| •Low viscosity formula for maximum fuel efficiency in modern automatic transmissions |
| •Enhanced friction durability for smooth transmission performance |
| •Superior high temperature protection to effectively resist oxidation |
| •Recommended for use in most automatic transmissions |
TECHNICAL SPECIFICATIONS
| Density @ 15°C, Relative | 0.841 g/ml (ASTM D4052) |
| Viscosity, Kinematic 100°C | 6.0 mm²/s (ASTM D445) |
| Viscosity, Kinematic 40°C | 30 mm²/s (ASTM D445) |
| Viscosity Index | 161 (ASTM D2270) |
| Viscosity, Brookfield @ -40°C (75W) | 10000 mPa.s (cP) (ASTM D2983) |
| Pour Point | -54°C (ASTM D97) |
| Flash Point, COC | 218°C (ASTM D92) |
PRODUCT PERFORMANCE CLAIMS
| •Ford MERCON® LV, GM DEXRON®-VI |
| •Suitable for use where the following are called for: Aisin Warner AW-1, AW-2 |
| •AML Oil No. G 055005 A1 / A2 / A6 |
| •ATF M1375.4, D3M, MA-1, SP |
| •Bentley Oil No. PY112995PA |
| •BMW Oil No. 8322 0142516, 83 22 2 3 55 599 (ATF6), 83 22 2 413 477 (ATF7), 83 22 2 289 720 (ATF3+), ETL 7045E, LA 2634, LT 71141 |
| •Chrysler Oil No. 68157995AA, ATF+4 |
| •Daihatsu AMMIX ATF D-III Multi D3-SP |
| •Ford MERCON® ULV ATF MERCON SP, M2C924-A, M2C949-A |
| •GM 1940767, GM DEXRON II, III, IIIH |
| •Honda ATF Type 3.1: 08263-999--01HE (EU), Honda/Acura DW 1/Z 1 |
| •Hyundai/Kia SP III, SP IV, SP IV M, SP IV RR, Oil No. 040000C905G |
| •Isuzu, Red 1 |
| •Jaguar Oil No. 02JDE 26444, Fluid 8432 |
| •JASO 1A(03), JASO 1A LV(13) |
| •JWS 3314, 3317, 3309, 3324 |
| •Land Rover Oil No. LR023288, TYK500050 |
| •MB 236.10, 236.12, 236.14, 236.15, 236.17 |
| •Maserati Oil No. 231603 |
| •Mazda ATF M-III, M-V, FZ |
| •Mitsubishi SP II, IIM, III, IV, PA, J3 |
| •Nissan Matic D, J, S |
| •Subaru F6, Red 1 |
| •Suzuki AT Oil 5D06, 2384K |
| •Toyota T III, T IV, WS |
| •Volvo 1161540 |
| •VW / Audi G 052 990, TL52990, VW / Audi G 055 540 |
| •TL 55540, VW / Audi G 060 162 |
| •TL 60162, ZF Lifeguardfluid 6, ZF Lifeguardfluid 8 |
| •Also suitable for the off-road application Volvo 97342 (AT 102), Porsche, 7 and 9 speed automatics from Mercedes-Benz, and 8 and 9-speed automatics from Audi, BMW, Mini-Cooper, Jaguar, Peugeot/Citroen, Saab, Volvo, and VW, whose specification or part number is not specifically mentioned above |
STORAGE
| •Store all packages under cover |
| •Where outside storage is unavoidable, lay drums horizontally to avoid water ingress and damage to drum markings |
| •Do not store above 60°C, exposed to hot sun or freezing conditions |
Data Sheet Date: 15 Aug 2024
The information contained in this data sheet is based on data considered to be accurate. No warranty is expressed or implied regarding the accuracy of this data. Product specifications and availability are subject to change without notice. Lube Control Pty Ltd accepts no responsibility for any loss or damage arising from the use of this information.
