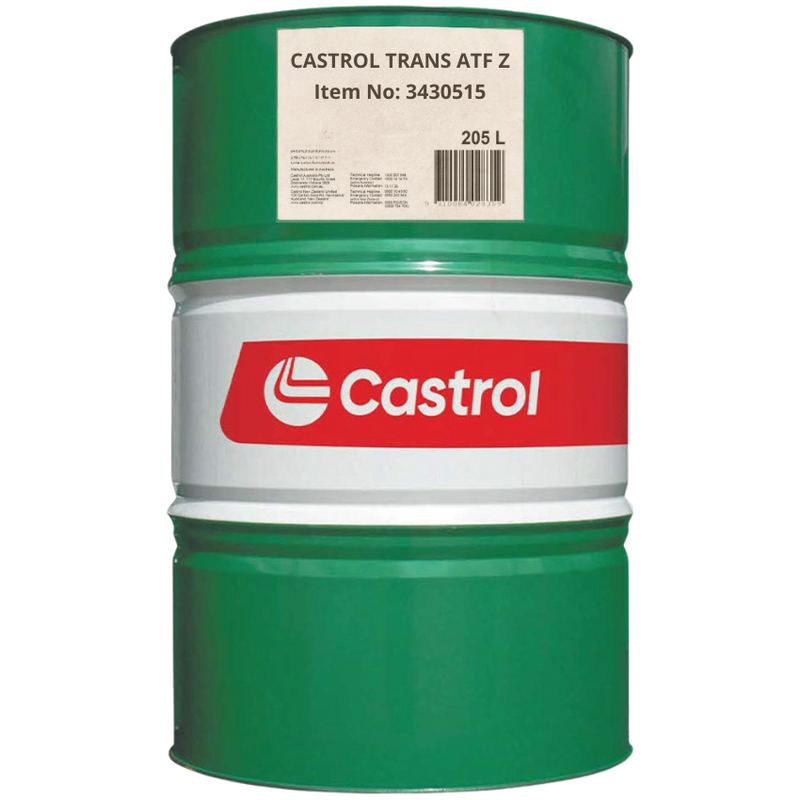

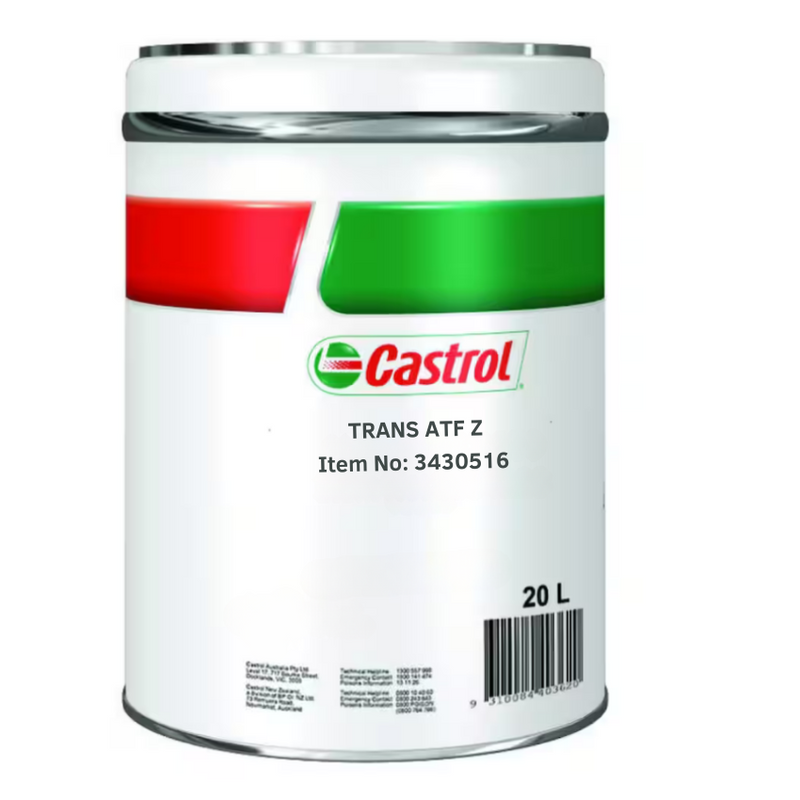

Castrol Transmax Atf Z
Castrol Transmax ATF Z can solve shiftability problems in automatic transmissions, enabling longer transmission life. It is particularly recommended for use in automatic and semi-automatic transmissions used in cars, buses, and coaches, and is recommended for fleets employing a mixture of Voith, Renk, ZF, Allison, Daimler Truck AG, and MB transmissions, alongside Leyland Pneumocyclic and Hydracyclic units. It supports extended oil drain intervals of 120,000 km in ZF Ecomat and EcoLife, MB AT, and Voith AT transmissions. Transmax ATF Z, formulated with Smooth Drive Technology™, delivers enhanced protection and gives drivers a smoother drive for longer.
KEY FEATURES
| •Enhanced friction durability for smooth transmission performance |
| •Enhanced wear protection to provide longer component life, offering extended drain potential and lower operating costs |
| •Excellent thermal and oxidative stability to effectively resist oxidation and maintain operational efficiency for longer |
| •Enhanced protection against deposits extends transmission life |
| •Temperature reduction in severe service improves transmission and oil service life and helps reduce fuel consumption and emissions |
| •Outstanding cold flow properties, giving high protection to the transmission especially at start-up |
| •A problem-solver for gear shiftability issues, with over 15 years of trouble-free field performance |
TECHNICAL SPECIFICATIONS
| Density @ 15°C, Relative | 0.836 g/ml (ASTM D4052) |
| Viscosity, Kinematic 100°C | 7.5 mm²/s (ASTM D445) |
| Viscosity, Kinematic 40°C | 38 mm²/s (ASTM D445) |
| Viscosity Index | 170 (ASTM D2270) |
| Viscosity, Brookfield @ -40°C (75W) | 8400 mPa.s (cP) (ASTM D2983) |
| Viscosity, Brookfield @ -26°C (80W) | 2000 mPa.s (cP) (ASTM D2983) |
| Viscosity, Brookfield @ -12°C (85W) | 535 mPa.s (cP) (ASTM D2983) |
| Pour Point | -66°C (ASTM D97) |
| Flash Point, COC | 228°C (ASTM D92) |
PRODUCT PERFORMANCE CLAIMS
| •JASO 1A(03) |
| •DTFR 13C160 (MB 236.81) |
| •MB-Approval 236.81 |
| •MAN 339 V2, Z3, Z12 |
| •Voith H55.6336.xx |
| •VW/Audi 501 60 |
| •ZF TE-ML 04D, 11B, 14C, 16M, 16S, 20C, 25C |
| •Suitable for use where the following are called for: Toyota T, T II, T III, T IV, WS |
| •Nissan Matic D, J, S |
| •Mitsubishi SP II, IIM, III, PA, J3, SP IV |
| •Mazda ATF M-III, M-V, JWS 3317, FZ |
| •Subaru F6, Red 1 |
| •Daihatsu AMMIX ATF D-III Multi, D3-SP |
| •Suzuki AT Oil 5D06, 2384K |
| •JWS 3314, 3317 |
| •Hyundai/Kia SP III, SP IV |
| •Aisin Transmissions requiring JWS 3309 |
| •Honda/Acura DW 1/Z1 |
| •Isuzu (where Toyota T-IV is required) |
| •BMW, VW, Audi, and Jaguar 5 speed automatic transmissions, and MB 4 and 5 speed automatic transmissions |
| •BMW Oil No. 8322.9407807 |
| •Citroen Oil No. Z 000169756 |
| •Jaguar Oil No. JLM 20238, LA 2634, LT 71141 |
| •Mercedes-Benz Oil No. 0019892203, MB 236.1, 236.6, 236.7, 236.9, 236.10 |
| •Peugeot Oil No. Z 000169756 |
| •Porsche Oil No. 999.917.547.00 |
| •VW / Audi TL 52162 (G 052 162) |
| •ZF Lifeguardfluid 5 |
ADDITIONAL INFORMATION
| •Transmax ATF Z is registered under ZF approval number ZF002158 |
Data Sheet Date: 29 May 2024
The information contained in this data sheet is based on data considered to be accurate. No warranty is expressed or implied regarding the accuracy of this data. Product specifications and availability are subject to change without notice. Lube Control Pty Ltd accepts no responsibility for any loss or damage arising from the use of this information.
