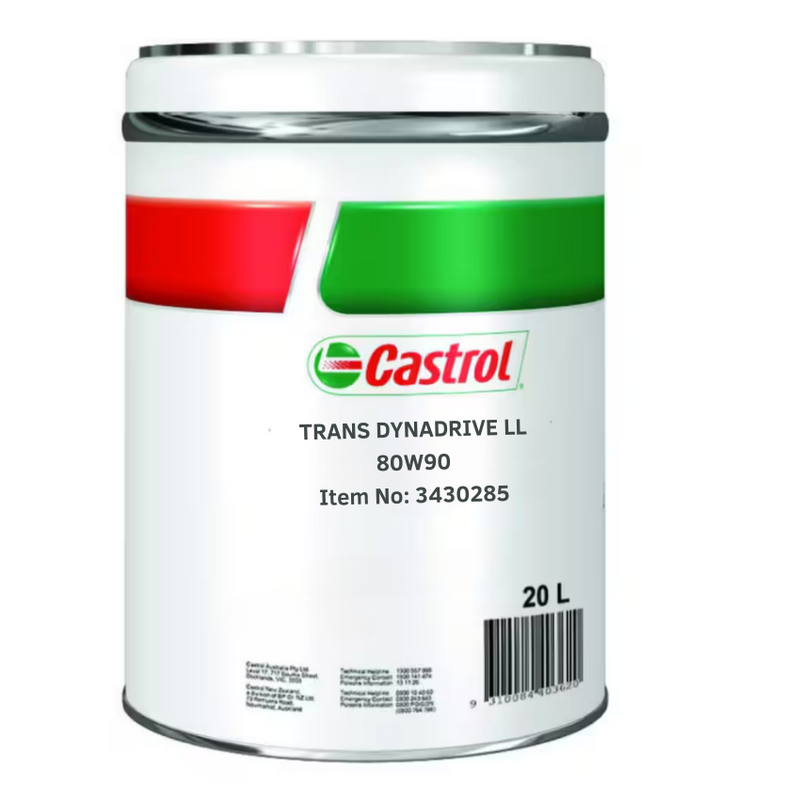

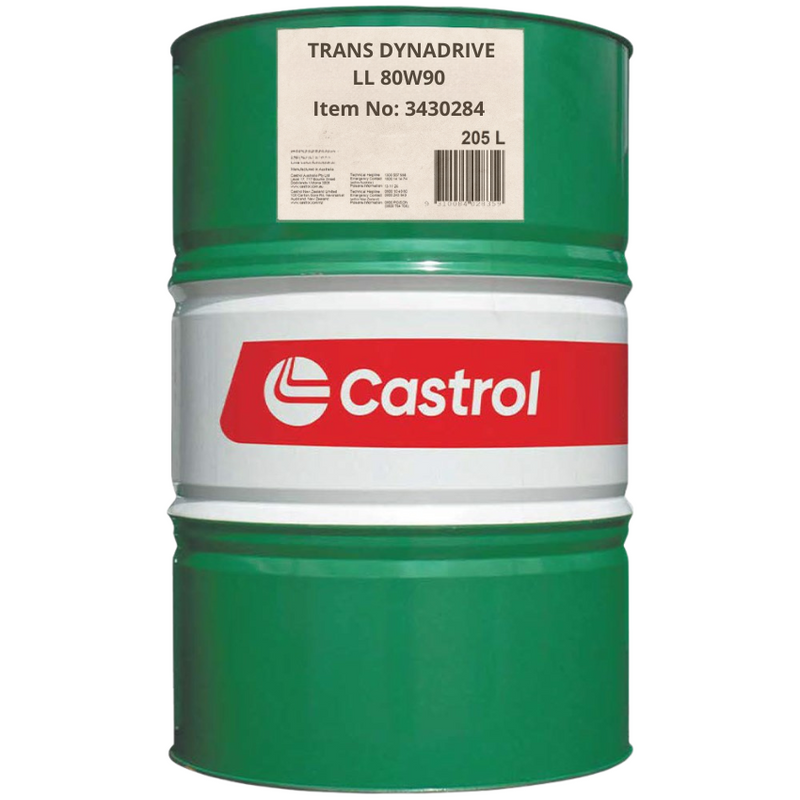

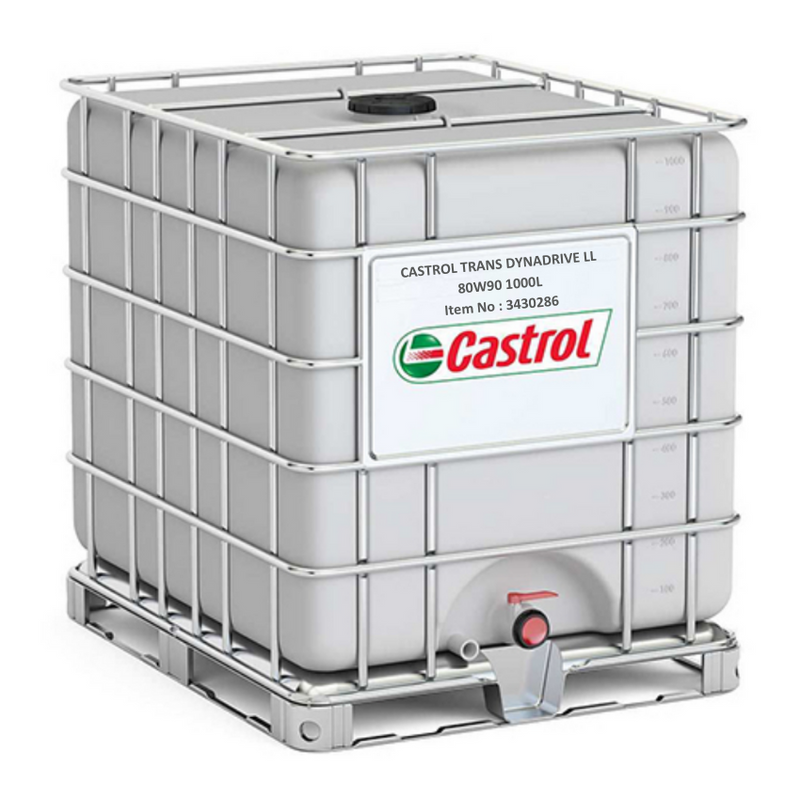

Castrol Trans Dynadrive LL 80W90
Castrol Transmax Dynadrive Long Life 80W-90 is a part-synthetic SAE 80W-90 gear oil specifically developed to meet all the gear oil requirements for both manual transmissions and final drives. The unique additive system provides the extreme pressure protection needed in heavy-duty differentials, as well as the frictional properties required for smooth shifting synchromesh manual transmissions. Its excellent viscosity/temperature characteristics overcome gear change baulking at low temperatures, while the outstanding thermal stability of the semi-synthetic base oil minimises deposit formation and allows oil drain intervals to be extended when appropriate.
APPLICATION
| •Designed for use in highly loaded final drives and differentials of commercial vehicles such as trucks, buses, vans, and 4WDs, as well as synchronised manual transmissions requiring API GL-4 or GL-5 lubricants |
| •Has shown excellent performance in a range of heavy duty differentials in the transport industry, as a replacement for conventional 85W-140 EP gear oils |
| •Extensive Australian field trials have shown it to be an excellent "trouble shooting" lubricant for final drives operating under severe conditions, particularly successful in reducing operating temperatures and extending oil and component life in Meritor (Rockwell) axles, and is endorsed by Meritor Australia for use in these applications |
KEY FEATURES
| •High oxidative stability enables better component cleanliness and longer oil life, resulting in extended servicing |
| •Excellent viscosity/temperature characteristics |
| •Synthetic base oil provides enhanced lubricant durability |
| •Excellent shear stability ensures high performance throughout the lubricant's life |
| •Being one product for both manual and final drive transmissions, it offers rationalisation that reduces workshop stockholding and helps prevent service filling errors |
| •Reduced gear change baulking at low temperatures |
| •Excellent differential cleanliness |
| •Reduced wear |
| •Extended drain |
| •Excellent transmission performance |
| •Extended axle bearing life |
TECHNICAL SPECIFICATIONS
| Density @ 15°C, Relative | 0.893 g/ml (ASTM D4052) |
| Viscosity, Kinematic 100°C | 17.0 mm²/s (ASTM D445) |
| Viscosity, Kinematic 40°C | 172 mm²/s (ASTM D445) |
| Viscosity Index | 106 (ASTM D2270) |
| Viscosity, Brookfield @ -26°C (80W) | 120000 mPa.s (cP) (ASTM D2983) |
| Pour Point | -39°C (ASTM D97) |
| Flash Point, COC | 234°C (ASTM D92) |
PRODUCT PERFORMANCE CLAIMS
| •API GL-4/GL-5 |
| •SAE J2360 |
| •Volvo Transmission Oil 97321-24-082 |
| •Mack GO-J |
| •Meets ArvinMeritor O76-D |
Data Sheet Date: 30 Jul 2025
The information contained in this data sheet is based on data considered to be accurate. No warranty is expressed or implied regarding the accuracy of this data. Product specifications and availability are subject to change without notice. Lube Control Pty Ltd accepts no responsibility for any loss or damage arising from the use of this information.
