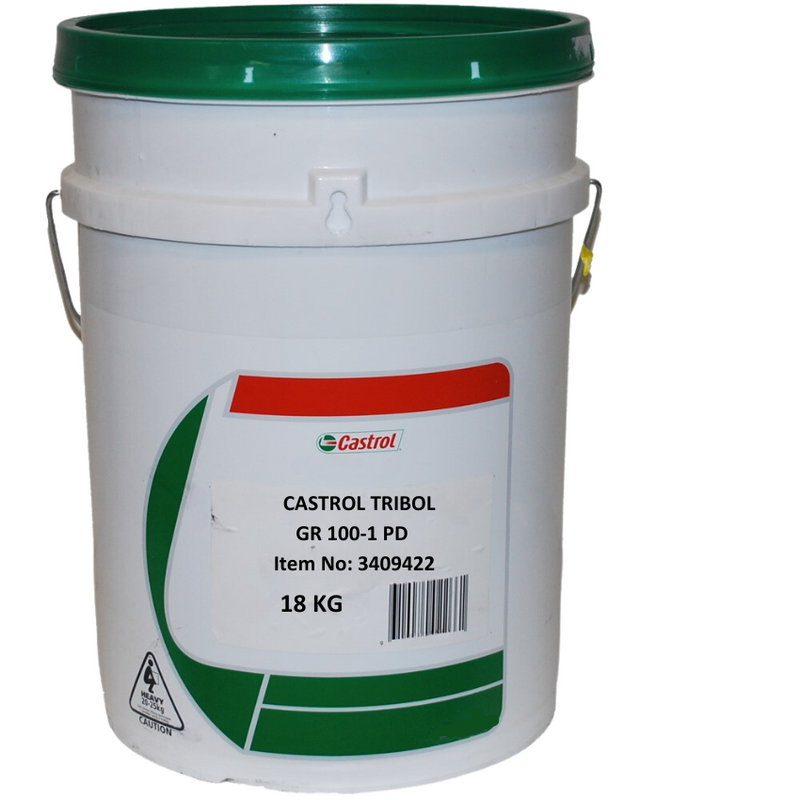

Castrol Tribol Gr 100-1 PD
Castrol Tribol™ GR 100 PD (previously called Longtime™ PD) is a range of lithium based greases containing highly refined mineral oils, enhanced with the MicroFlux Trans (MFT) additive system. The MFT technology provides optimum wear protection and an extremely low coefficient of friction under extremes of pressure, vibration, and shock loads, at high or low speeds. The range can be used for long term lubrication under difficult operating conditions across a wide temperature range (-35°C to 140°C) in highly loaded rolling and sliding bearings, including spinning and grinding spindles, gear motors, screening/wood shaping machines, steel mill roll neck bearings, and centralised lubricating systems; Tribol GR 100-0 PD and 100-00 PD can also be used as semi-fluid grease lubricants in flange, drum-type, and worm gears.
TECHNICAL SPECIFICATIONS
| Property | 100-00 PD | 100-0 PD | 100-1 PD | 100-2 PD |
| Appearance | Brown | Brown | Brown | Brown |
| Thickener Type | Lithium | Lithium | Lithium | Lithium |
| Base Oil | Mineral oil | Mineral oil | Mineral oil | Mineral oil |
| Consistency (NLGI Grade) | 00 | 0 | 1 | 2 |
| Density @ 20°C (kg/m³) | 910 | 890 | 890 | 890 |
| Worked Penetration (60 strokes @ 25°C, 0.1mm) | 400-430 | 355-385 | 310-340 | 265-295 |
| Worked Penetration (100,000 strokes) – change from 60 strokes (0.1mm) | - | - | <20 | <20 |
| Dropping Point (°C) | - | - | 190 | 200 |
| Base Oil Viscosity @ 40°C (mm²/s) | 130 | 130 | 95 | 95 |
| Copper Corrosion (24hrs, 100°C) | 1b | 1b | 1b | 1b |
| SRV Friction/Wear Test (400N/2h/50°C), coeff. friction / wear scar (mm) | 0.08/0.65 | 0.07/0.65 | 0.07/0.65 | 0.07/0.65 |
| Flow Pressure @ -35°C (hPa) | 500 | 1000 | 1100 | 1200 |
| Water Resistance | - | 1 | - | 90 |
| DIN Classification | KP 00 N-40 | KP 0 N-40 | KP 1 N-30 | KP 2 N-30 |
| ISO Classification | L-XDDHB-00 | LXDDHB-0 | LXCDHB-1 | LXCDHB-2 |
KEY FEATURES
| •High load bearing capacity – extends the operating period under high loads leading to optimum wear protection |
| •Superior lubrication and surface smoothing effects due to MFT can reduce failures, leading to less downtime and repair work; PD technology can prolong the life of damaged components |
| •Establishment of a protective layer of MFT – increases the load bearing area, reducing unit pressures, operating temperatures and wear, and increasing service life of both parts and lubricant |
| •Improved bearing surfaces for longer service life result from the ‘running in’ effect of MFT |
| •Extremely low coefficients of friction – generating energy savings and reduced noise levels |
| •Multi-functional – Tribol GR 100-0 PD and 100-00 PD are highly recommended for anti-friction bearings with grease reservoir and for leaky gearboxes |
| •Easily pumpable in central lubrication systems – does not channel on gears running at high speeds when using 100-0 PD and 100-00 PD |
Data Sheet Date: 29 Jul 2015
The information contained in this data sheet is based on data considered to be accurate. No warranty is expressed or implied regarding the accuracy of this data. Product specifications and availability are subject to change without notice. Lube Control Pty Ltd accepts no responsibility for any loss or damage arising from the use of this information.
