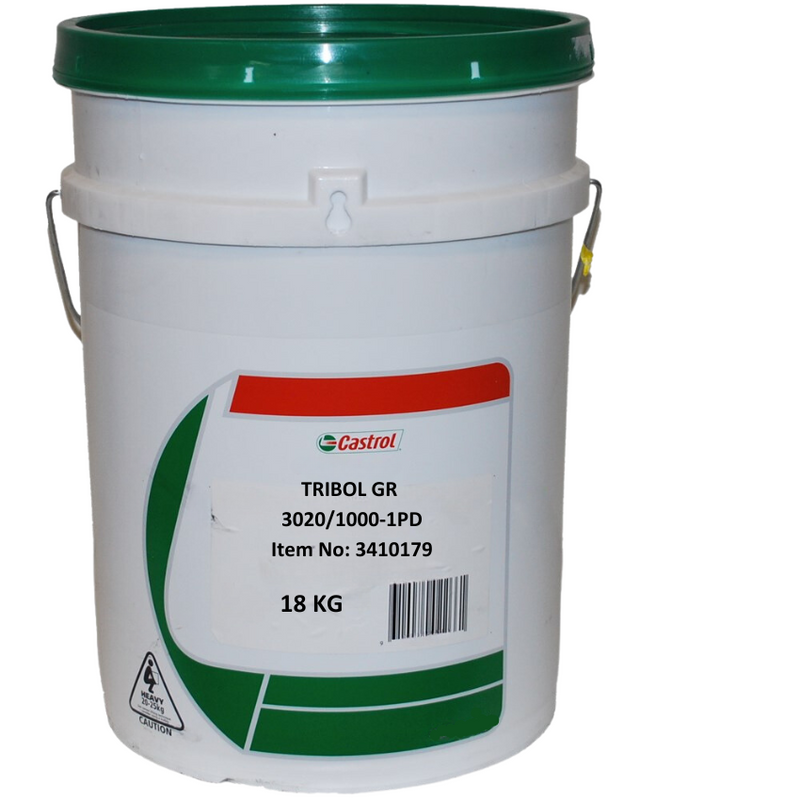

Castrol Tribol Gr 3020/1000-1Pd 18Kg
Castrol Tribol™ GR 3020/1000 PD is a range of high performance greases formulated from highly refined, high-viscosity mineral base oils, a lithium thickener and Tribol Grease Oil Additive (TGOA). Activated by high specific loads and temperatures, the TGOA package equalises surface roughness without creating abrasion – smoothing working surfaces, enlarging load-carrying areas and automatically reactivating if roughness peaks redevelop under shock loads or stop-and-go operation. Corrosion and oxidation inhibitors help maximise rust protection and grease life. Available in NLGI grades 2, 1, 0, 00 and 000.
TECHNICAL SPECIFICATIONS
| Product Type | High performance grease with TGOA |
| Available NLGI Grades | 2, 1, 0, 00, 000 |
| Appearance | Homogeneous |
| Thickener Type | Lithium |
| Base Oil | Mineral Oil |
| Base Oil Viscosity @ 40°C (ISO 3104 / ASTM D445) | 1000 mm²/s |
| Base Oil Viscosity @ 100°C (ISO 3104 / ASTM D445) | 54 mm²/s |
| Operating Temperature Range | -40°C to +120°C |
| Rust Test – Distilled Water (ASTM D1743) | Pass |
| Rust Test EMCOR – Distilled Water (DIN 51802) | ≤ 0/1 |
| Copper Corrosion, 24 hrs @ 100°C (ASTM D4048) | 1B |
| Four Ball Wear Test – Wear Scar Diameter (DIN 51350-05E) | < 1.0 mm |
| Four Ball Weld Load – Weld Point (DIN 51350-04A) | 3600/3800 N |
| SRV Friction & Wear, 300 N / 2 hr / 50°C (ASTM D5707) | 0.08 coefficient of friction |
GRADE COMPARISON
| Property | GR 3020/1000-2 | GR 3020/1000-1 | GR 3020/1000-0 | GR 3020/1000-00 | GR 3020/1000-000 |
| NLGI Grade (ISO 2137 / ASTM D217) | 2 | 1 | 0 | 00 | 000 |
| Worked Penetration, 60 strokes @ 25°C (0.1 mm) | 265 – 295 | 310 – 340 | 355 – 385 | 400 – 430 | 445 – 475 |
| Dropping Point, °C (ISO 2176 / ASTM D566) | >175 | >175 | >160 | – | – |
| Water Resistance, Rating (DIN 51807) | 1-90 | 1-90 | 1-90 | Test not suitable for semi-fluid greases | Test not suitable for semi-fluid greases |
| Roll Stability – Shear Stability, 0.1 mm (ASTM D1831) | ≤ 10 | ≤ 10 | ≤ 10 | Test not suitable for semi-fluid greases | Test not suitable for semi-fluid greases |
| Flow Pressure @ -20°C, mbar (DIN 51805) | 350 | 250 | 100 | – | – |
| Flow Pressure @ -35°C, mbar (DIN 51805) | – | – | – | 700 | 500 |
| Oil Separation, % (DIN 51817) | ≤ 4 | ≤ 11 | – | – | – |
| Oil Separation, % (ASTM D1742) | ≤ 3 | ≤ 3 | – | – | – |
KEY FEATURES
| •Excellent pumpability in central lubrication systems |
| •Repairs damaged friction surfaces (roughness) due to the TGOA additives |
| •Extends lubrication interval |
| •Reduces wear and noise |
| •Lowers operating temperatures |
| •Lowers downtime, reducing maintenance and repair costs |
| •Optimum sealing effect due to excellent adhesion of the grease |
APPLICATIONS
| All Grades | Large slow-speed bearings, where the high base oil viscosity provides a sufficient lubricating film |
| Fluid Greases (NLGI 0, 00, 000) | Non-oil-tight gear units, rolling and sliding bearings, bushings, slides and general lubrication designed for fluid-grease lubrication |
| Greases (NLGI 1 & 2) | Roller and sliding bearings, spindles, power train couplings (except high speed precision couplings), carriages, cams and common grease points |
| Industries | Steel, mineral compound, construction and mining |
ADDITIONAL INFORMATION
| Compatibility | Should not be mixed with greases using a different thickener |
| Application Method | Manually with grease guns, or automatic dispensing systems designed for the respective NLGI grades |
| Previous Name | Tribol 3020/1000 (name changed in 2015) |
Data Sheet Date: 18 Aug 2015
The information contained in this data sheet is based on data considered to be accurate. No warranty is expressed or implied regarding the accuracy of this data. Product specifications and availability are subject to change without notice. Lube Control Pty Ltd accepts no responsibility for any loss or damage arising from the use of this information.
