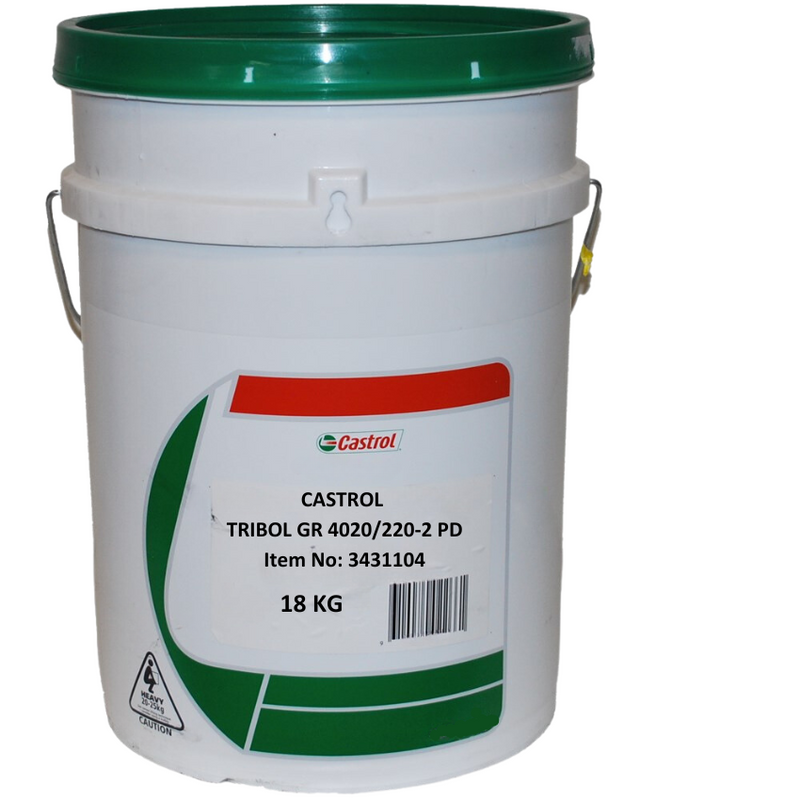

CASTROL TRIBOL GR 4020/220-2 PD 18 KG
Castrol Tribol™ GR 4020 PD Range greases (previously known as Tribol™ 4020 Range) are formulated from highly refined petroleum base oils, a lithium complex thickener, and Tribol Grease Oil Additive (TGOA) — the latest advancement in friction-reducing and surface-improving additive technology. These multi-service greases are designed to extend the service life of bearings in heavy duty and elevated temperature applications. Under relatively high specific loads and related temperatures, TGOA technology promotes a non-destructive smoothing of surface roughness in the micro-range, reducing friction and increasing the actual load-bearing surface; if roughness peaks redevelop due to shock loads or stop-and-go operation, the TGOA additive package automatically reactivates and re-optimises lubrication. GR 220-2 PD is the NLGI Grade 2 consistency within the range.
KEY FEATURES
| •Advanced TGOA additive technology — multiple benefits including reduced friction, temperatures, and noise, increased load carrying ability, and superior surface protection |
| •Excellent water resistance — the coating film stays on the surface even in the presence of water |
| •Excellent mechanical stability and adhesion — the grease keeps its consistency in service, ensuring long term protection and reduced consumption as the film stays between lubricated surfaces |
| •Superior oxidation resistance — prevents corrosive activity on bearings in aggressive environments |
| •Formulated to address environmental concerns — free of antimony, barium, lead, and zinc |
APPLICATION
| •Formulated as a multi-service lubricant for heavy duty applications of plain and anti-friction bearings under medium to high loads |
| •The TGOA additives are very effective in protecting the machined surfaces of bearings during the critical "running-in" period |
| •Commonly used as a plant-wide lubricant in the automotive industry, and in industries where the preference is for a high performance non-dark grease |
TECHNICAL SPECIFICATIONS
| Appearance | Light amber (Visual) |
| Thickener Type | Lithium complex |
| Base Oil | Mineral oil |
| Consistency (NLGI Grade) | 2 (ASTM D217 / ISO 2137) |
| Density @ 20°C | 916 kg/m³ (in-house method) |
| Worked Penetration (60 strokes @ 25°C) | 265-295 (0.1 mm) (ASTM D217 / ISO 2137) |
| Dropping Point | 240°C (ASTM D566 / ISO 2176) |
| Base Oil Viscosity @ 40°C | 220 mm²/s (ASTM D445 / ISO 3104) |
| Base Oil Viscosity @ 100°C | 19 mm²/s (ASTM D445 / ISO 3104) |
| Flash Point - open cup method | 225°C (ASTM D92 / ISO 2592) |
| Rust Test - Distilled Water (24 hrs) | Pass (ASTM D665A / ISO 7120) |
| Rust Test - Emcor - Distilled Water | 0/0 (ASTM D6138 / ISO 11007) |
| Copper Corrosion (24 hrs, 100°C) | 1b (ASTM D130 / ISO 2160) |
| Four Ball Wear Test - Wear Scar Diameter (40 kgf / 75°C / 1200 rpm / 1 hr) | 0.5 mm (ASTM D2266 / ISO 51350) |
| Four Ball Weld Load Test - Load Wear Index | 80 kgf (ASTM D2783) |
| Four Ball Weld Load Test - Weld Point | 400 kgf (ASTM D2783) |
| Four Ball Wear Test - Wear Scar Diameter | 0.7 mm (DIN 51350-5E) |
| Four Ball Wear Test - Weld Load | 4200 / 4400 N (DIN 51350-2) |
| Timken OK Load | 23 kg (ASTM D2509) |
| SRV Friction and Wear Test (300 N / 2 hr / 50°C) | 0.08 coefficient of friction (ASTM D5707) |
| FE-9 Bearing Life Test - A/1500/6000-140 | >100 (Pass) (DIN 51821-2) |
| Water Wash-out @ 79°C | 4% wt loss (ASTM D1264 / ISO 11009) |
| Water Resistance | 1 (DIN 51807-1) |
| Roll Stability Test - Shear Stability | 10 (0.1 mm) (ASTM D1831) |
| Flow Pressure @ -20°C | 850 mBar (DIN 51805) |
| DIN Classification | KP 2 N-30 (DIN 51502) |
| ISO Classification | L-XBDHB-2 (ISO 6743/9) |
ADDITIONAL INFORMATION
| •To minimise potential incompatibilities when converting to a new grease, all previous lubricant should be removed as much as possible prior to operation |
| •During initial operation, re-lubrication intervals should be monitored closely to ensure all previous lubricant is purged |
| •This product was previously called Tribol 4020 Range; the name was changed in 2015 |
Data Sheet Date: 18 Sep 2015
The information contained in this data sheet is based on data considered to be accurate. No warranty is expressed or implied regarding the accuracy of this data. Product specifications and availability are subject to change without notice. Lube Control Pty Ltd accepts no responsibility for any loss or damage arising from the use of this information.
