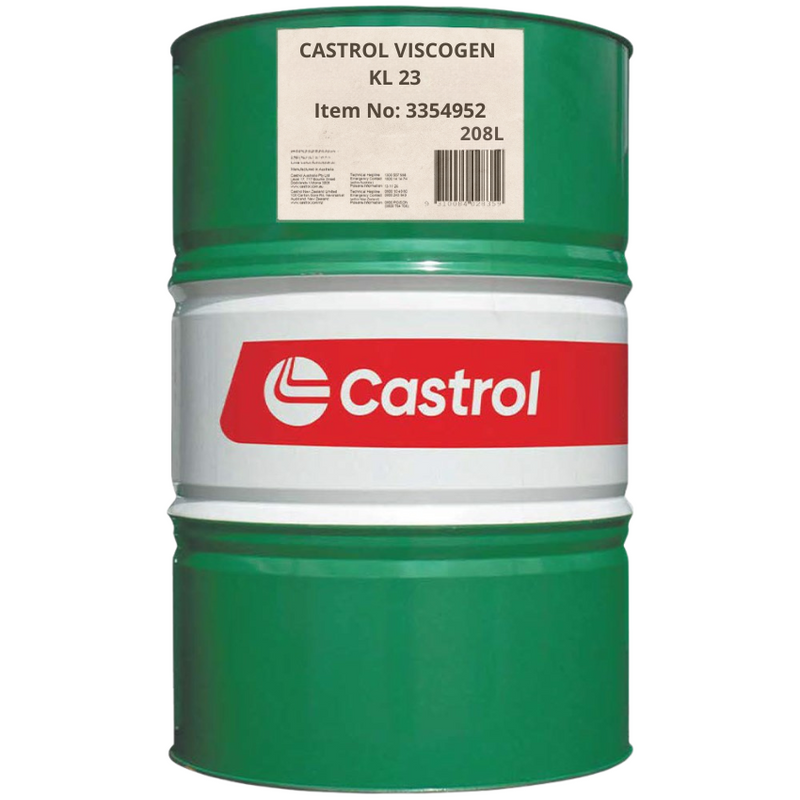

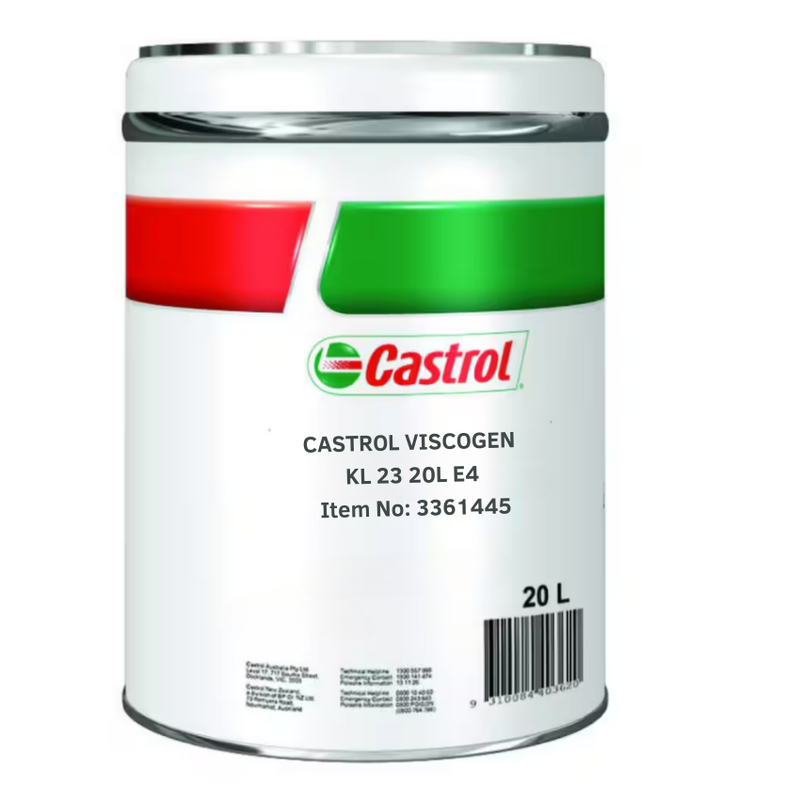

Castrol Viscogen KL 23
Castrol Viscogen™ KL is a range of thermally stable synthetic chain lubricants designed for high temperature lubrication in severe environments, where mineral oils or conventional synthetic oils would cause excessive wear, carbonisation, and residue formation. Depending on viscosity, Viscogen KL can be used up to temperatures of +240°C/+464°F, forming exceptionally adherent, transparent, and odourless lubricating films from an additive system free of solids, metals, or silicone. Available in six viscosities, Viscogen KL suits applications such as high-rack storage shelves, bakery machines, paint lines, conveyor chains, tenter frames and dryers, washing plants, underfloor chains, steamers, slashers, baking ovens, slide ways, spindles, ropes, open gear wheels, plastic toothed belts, and sheet-fed offset machines; Viscogen KL 23 is especially suitable for BOPP (Biaxially oriented Polypropylene) film stretching machines.
TECHNICAL SPECIFICATIONS
| Property | KL 3 | KL 9 | KL 15 | KL 23 | KL 130 | KL 300 |
| Colour | Green | Green | Green | Green | Green | Green |
| Base Oil | Synthetic oil | Synthetic oil | Synthetic oil | Synthetic oil | Synthetic oil | Synthetic oil |
| ISO Viscosity Grade | 32 | 100 | 220 | - | - | - |
| Density @ 15°C / 59°F (kg/m³) | 948 | 964 | 947 | 950 | 930 | 920 |
| Kinematic Viscosity @ 40°C / 104°F (mm²/s) | 31 | 99 | 219 | 249 | 1400 | 3500 |
| Kinematic Viscosity @ 100°C / 212°F (mm²/s) | 6 | 12 | 20 | 23 | 90 | 190 |
| Flash Point, open cup method (°C/°F) | >230/450 | 230/450 | >250/480 | >240/465 | >220/430 | 220/430 |
| Pour Point (°C/°F) | -60/-76 | -51/-60 | -39/-38 | -39/-38 | -27/-17 | -12/1 |
| Copper Corrosion (3hrs @ 100°C/212°F) | 1 | 1 | 1 | 1 | 1 | 1 |
| Four Ball Wear Test, Wear Scar Diameter (300N/1hr, mm) | 0.6 | 0.5 | 0.4 | 0.4 | 0.4 | 0.4 |
KEY FEATURES
| •Extremely low evaporation rate, low residue formation, and low smoke generation at high temperatures – enabling reduced maintenance, reduced lubricant consumption, and better working environments |
| •High load carrying ability under severe mechanical loads and high temperatures, with excellent penetration on chains and wire rope strands – leading to longer chain life |
| •No dripping or throwing off at high speeds or high temperatures – giving reduced lubricant consumption |
| •Excellent rust protection, extraordinary oxidation resistance, and no hard carbon build up – leading to longer chain life and reduced maintenance |
Data Sheet Date: 10 Jun 2025
The information contained in this data sheet is based on data considered to be accurate. No warranty is expressed or implied regarding the accuracy of this data. Product specifications and availability are subject to change without notice. Lube Control Pty Ltd accepts no responsibility for any loss or damage arising from the use of this information.
