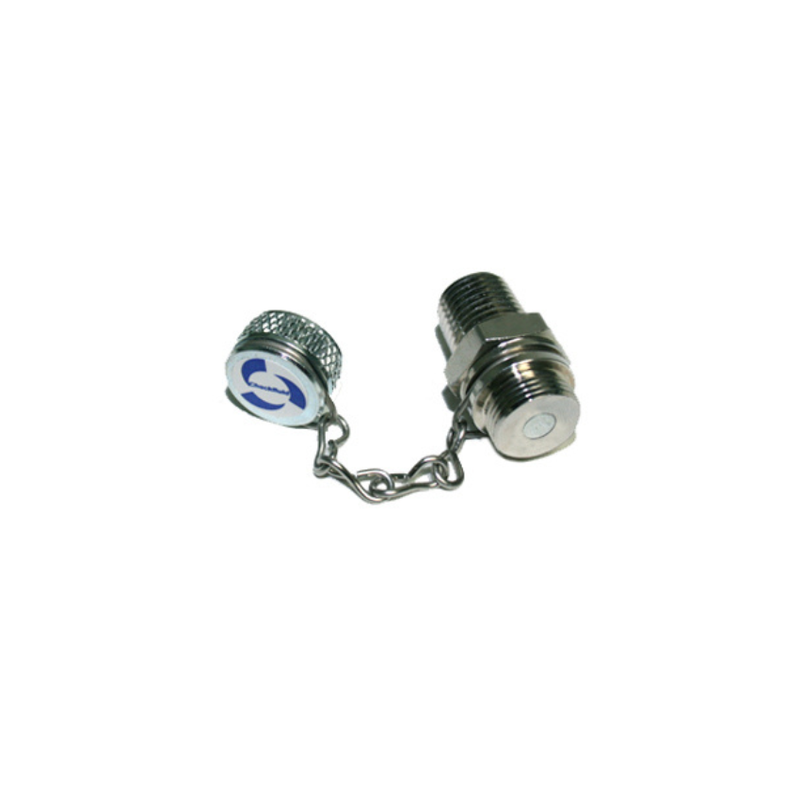

Check Fluid High Flow Flush Face Sample Port 1/4 NPT
The Checkfluid L Series High Flow Sampling Valve L14N-C is designed for sampling low pressure systems with high viscosity oils up to VG 1500. The high flow, flushed face design works for both sampling and filling, samples 7x faster than the B16x2 series, and avoids spillage while reducing the risk of contamination. The compact flat face design allows sampling without shutting equipment down.
Product Specifications
| Part Number | L14N-C |
| Port Thread Size and Type | 1/4"-18 NPTF |
| Valve Sealing | Viton |
| Valve Material | Carbon Steel |
| Sampling Range | 0 – 125 PSI (0 – 0.86 MPa) |
| System Working Pressure | 27 in Hg (elastomeric sealing) |
| Max Fluid Viscosity | VG 1500 |
Features & Benefits
| •Samples 7x faster than the B16x2 series for high flow, high viscosity oil sampling |
| •Easy-to-clean flat face design avoids spillage and reduces the risk of contamination |
| •Extra compact design for installation in confined spaces |
| •Elastomeric Viton sealing withstands 27 in Hg system working pressure |
| •Sample without shutting the equipment down — no downtime required |
| •Corrosion resistant stainless steel chain and clip included |
| •Suitable for oil, coolant and water sampling — available in Carbon Steel, 316 and 304 Stainless Steel |
Required for Sampling
| Part | Use | Reusable |
| SLF4 | Sampling probe for 1/4" OD tube | Yes |
| SER4 | Plastic tubing | No |
| VAC | Vacuum pump | Yes |
The information contained in this data sheet is based on data considered to be accurate. No warranty is expressed or implied regarding the accuracy of this data. Product specifications and availability are subject to change without notice. Lube Control Pty Ltd accepts no responsibility for any loss or damage arising from the use of this information.
