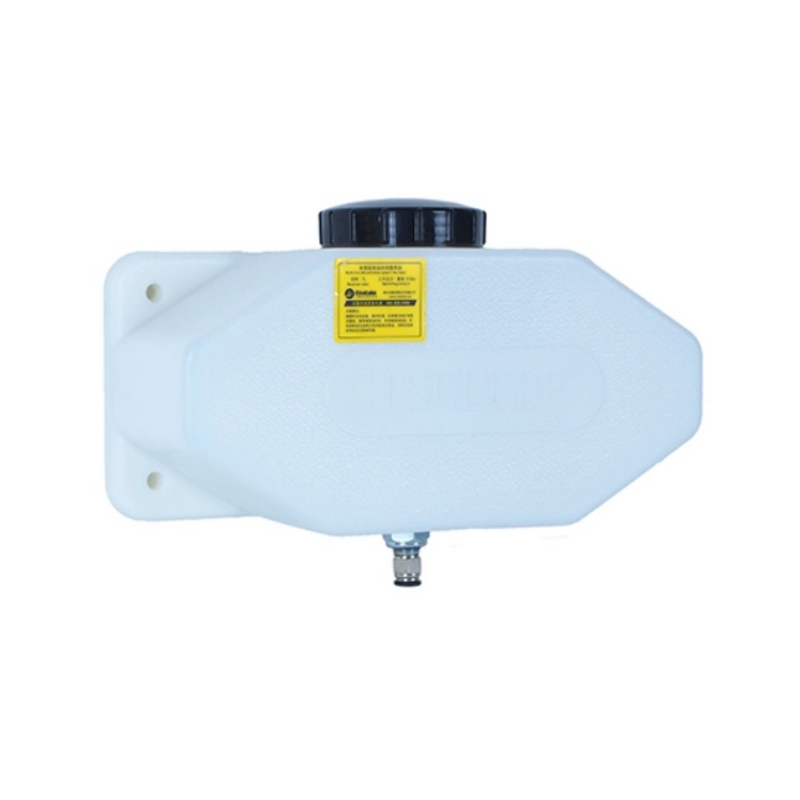

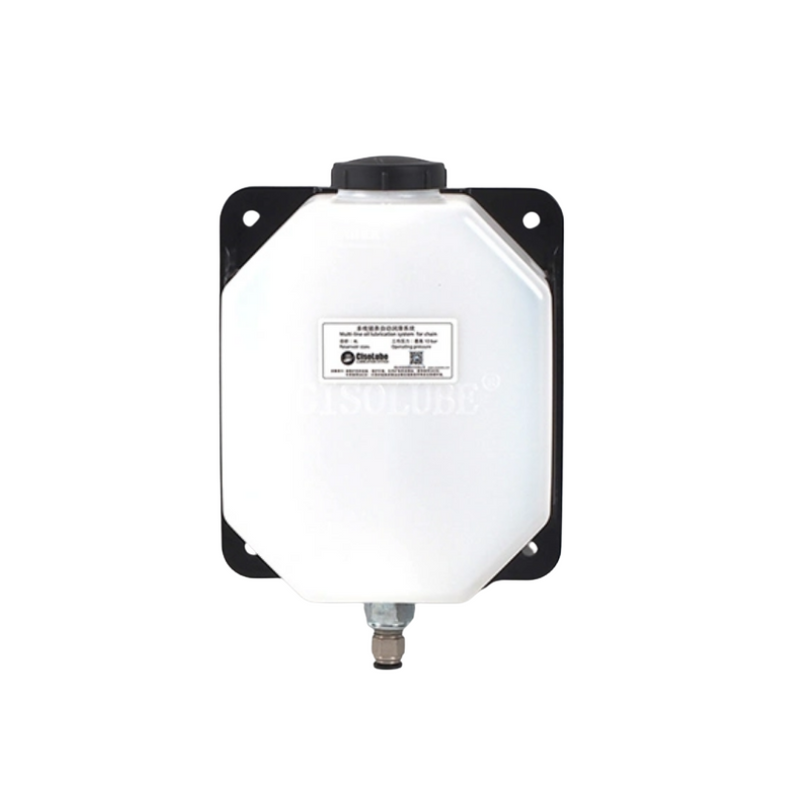

CisoLube Oil Tank with Pushin Fitting
The CisoLube Oil Tank (Ø10mm outlet) is a dedicated lubricating oil reservoir designed for use within centralised lubrication systems. Built to store various types of lubricating oil, it incorporates an integrated filter to remove impurities and maintain oil quality throughout the system's service life. Available in 4L (RV10E04) and 7L (RV10E07) capacities, both fitted with a Ø10mm outlet, these models are a compact and reliable component for agricultural machinery chain lubrication systems and other oil-fed automated lubrication applications.
Technical Specifications
| Part Number — 4L Model | RV10E04 |
| Part Number — 7L Model | RV10E07 |
| Reservoir Capacities | 4L | 7L |
| Outlet Diameter | Ø10mm |
| Filter | Integrated (included as standard) |
Features
| •Ø10mm outlet diameter for direct compatibility with PMV and PMN chain lubrication pump Ø10mm inlet connections |
| •Integrated filter on every model removes impurities from the lubricating oil before it enters the downstream system, protecting pumps, distributor blocks, and lubrication points |
| •Available in 4L (RV10E04) and 7L (RV10E07) to match the oil volume requirements of different machine sizes and lubrication intervals |
| •Designed as a key component of centralised lubrication systems — ensures consistent oil quality and supply across all connected lubrication points |
Applications
| •Agricultural machinery chain lubrication systems — harvesters, balers, sprayers, and other equipment using PMV or PMN cam-driven pumps with Ø10mm inlet connections |
| •Centralised oil lubrication systems across a wide range of industrial and agricultural machinery types requiring a Ø10mm feed line |
| •Any oil-fed automatic lubrication system requiring a dedicated, filtered reservoir to maintain consistent lubricant quality and flow |
For oil use only. Ø10mm outlet — confirm pump inlet size before ordering. For the Ø8mm outlet version see RV08E04 (4L) and RV08E07 (7L). For system design assistance contact Lube Control on 1300 917 946 or sales@lubecontrol.com.au.
Disclaimer
Technical specifications may change. Please confirm with the manufacturer.
