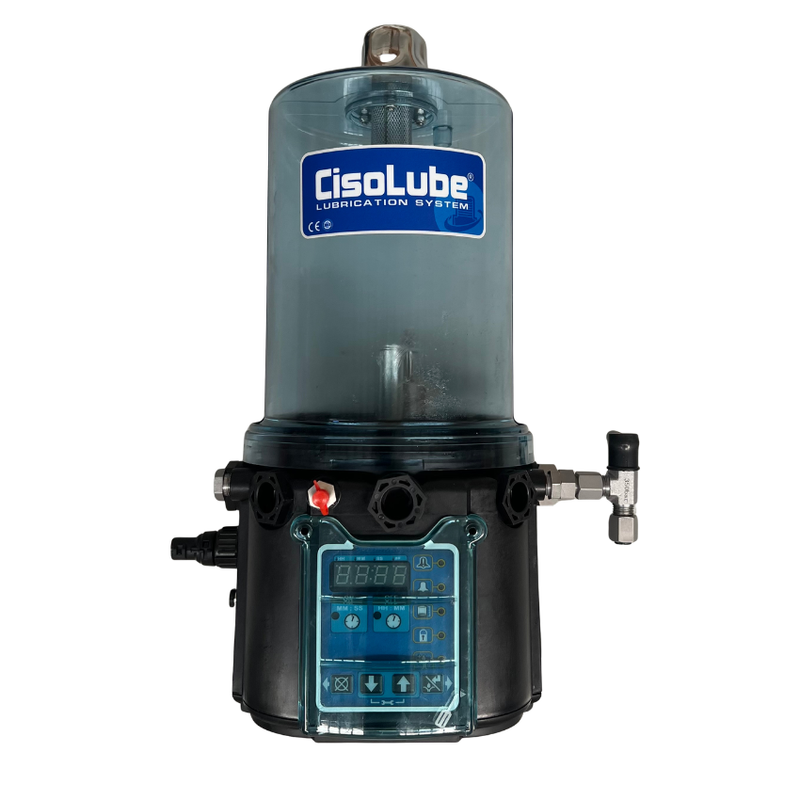

CISO GT-PLUS Oil Pump (12V lubricator, with timer, low level alarm)
The Ciso GT Plus is a compact, high-pressure lubrication pump designed for use in progressive centralised lubrication systems. It distributes oil accurately to all lubrication points on a machine — operating continuously or intermittently according to a pre-programmed timer. This 12VDC model comes with a 7-pin Tyco bayonet plug and is available with a choice of reservoir sizes from 2L to 12L, making it suitable for a wide range of industrial and mobile applications.
Technical Specifications
| Voltage | 12VDC (7-pin Tyco bayonet plug) |
| Number of Pumping Elements | Up to 5 |
| Flow per Pumping Element | 4 ml/min (adjustable to 3 ml or 2 ml with adjustment washers) |
| Operating Pressure per Pumping Element | 300 bar (30 MPa) |
| Outlet Connection | 6mm compression fitting |
| Reservoir Capacity | 2L, 4L, 8L, 12L (transparent acrylic) |
| Lubricants | Oil to NLGI 000, 00, 0, 1, 2 |
| Operating Temperature | -50°C to +90°C |
| Manual Override | Yes |
| Filling Port | Filling cap with 10μm breather and strainer |
| Programming | Integrated control timer |
| Monitoring | Low level alarm and over-pressure relief valve |
Features
| •Suitable for intermittent or continuous operation with pre-programmed lubrication intervals |
| •Up to 5 pumping elements can be installed — each delivering 4 ml/min at up to 300 bar |
| •Can reach lubrication points more than 20m away and support over 100 lube points when used with cascaded DXF divider valves |
| •Transparent acrylic reservoir for easy visual level monitoring |
| •Integrated programmable timer with low level alarm |
| •Manual override for on-demand lubrication or commissioning |
| •Flow rate adjustable to 3 ml or 2 ml per element using adjustment washers |
| •Comes standard with one pumping element (4 ml/min) and pressure relief valve |
Ordering Details — 12V Models
| LC-GT-2L-12V-TMR-LL-O | CISO GT-PLUS Pump, 12V, 2L, with timer, low level alarm |
| LC-GT-4L-12V-TMR-LL-O | CISO GT-PLUS Pump, 12V, 4L, with timer, low level alarm |
| LC-GT-8L-12V-TMR-LL-O | CISO GT-PLUS Pump, 12V, 8L, with timer, low level alarm |
| LC-GT-12L-12V-TMR-LL-O | CISO GT-PLUS Pump, 12V, 12L, with timer, low level alarm |
Spare Parts
| 12710 | Wiring assembly 5 wires, 10m — Ciso GT (7-pin Tyco) |
| 80536 | GT Plus Pumping Element, 4 ml/min |
| 5FJ01 | CISO GT Pump outlet safety/relief valve (35 MPa) |
For technical assistance or custom system design, contact Lube Control Pty Ltd on 1300 917 946
Technical Documents
Lubrication Systems for Chains
Download PDFDisclaimer
Technical specifications may change. Please confirm with the manufacturer.
