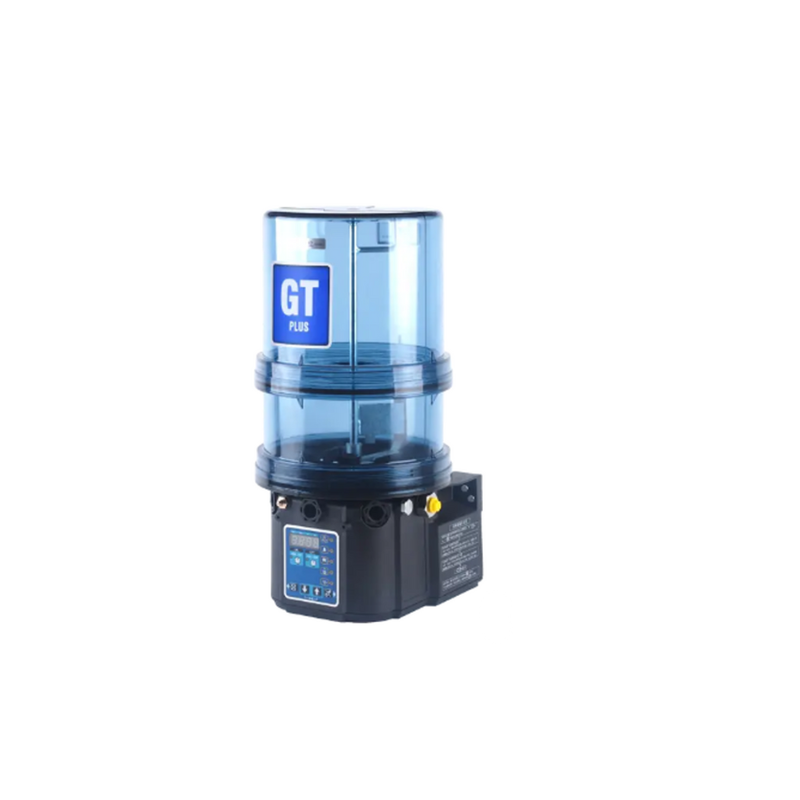

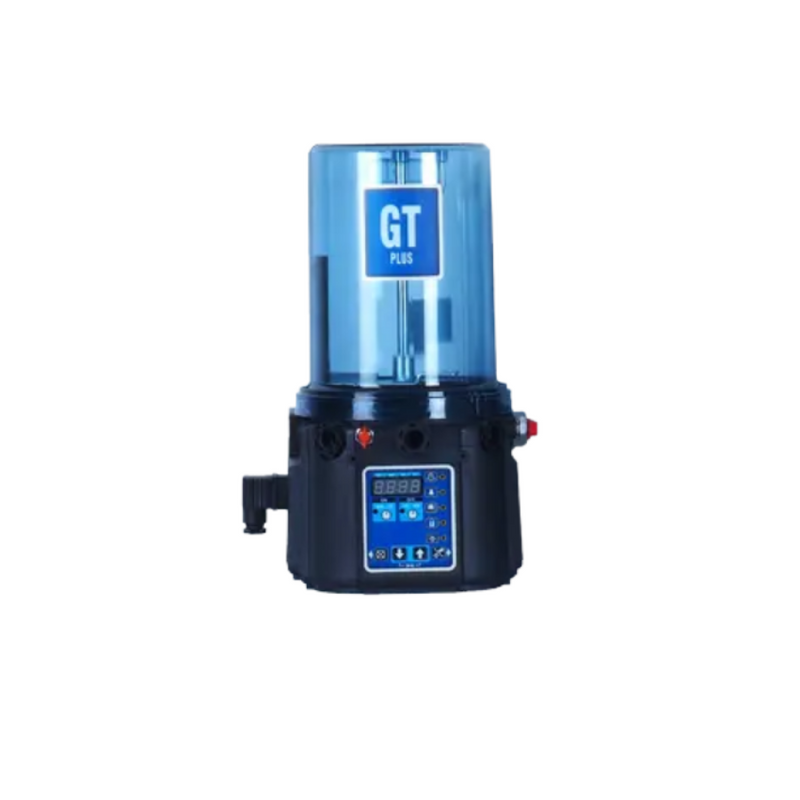

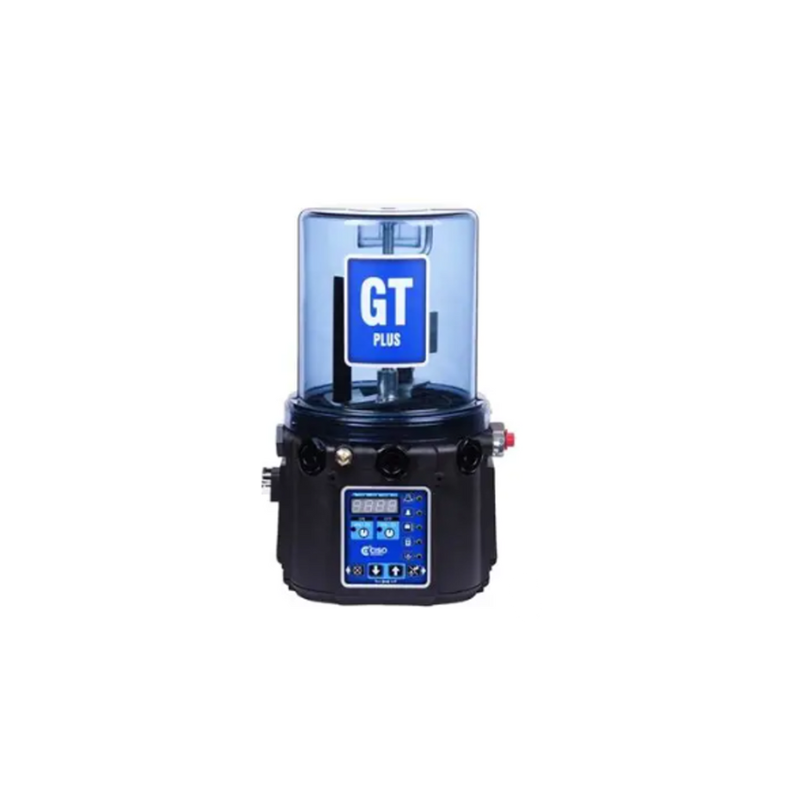

CisoLube - GT PLUS Pump 24 Voltage
The CisoLube GT Plus 24V is the heart of a progressive lubrication system engineered to accurately distribute oil or grease (up to NLGI 2) to multiple machine lubrication points. Designed for both intermittent and continuous operation, the 24V DC unit delivers up to 300 bar of outlet pressure — sufficient to reach grease points more than 20m away — and features a built-in motor, gearbox, and integrated programmable timer as standard. A transparent acrylic reservoir (available in five sizes from 2L to 12L), IP67-rated housing, and an operating range of −50°C to +90°C make it equally at home on fixed plant and demanding mobile or outdoor installations.
Technical Specifications
| Part Number (Base Unit) | CISOGTBASE24V |
| Voltage | 24V DC (order code suffix: 24V) |
| Maximum Outlet Pressure | 30 MPa (300 bar) |

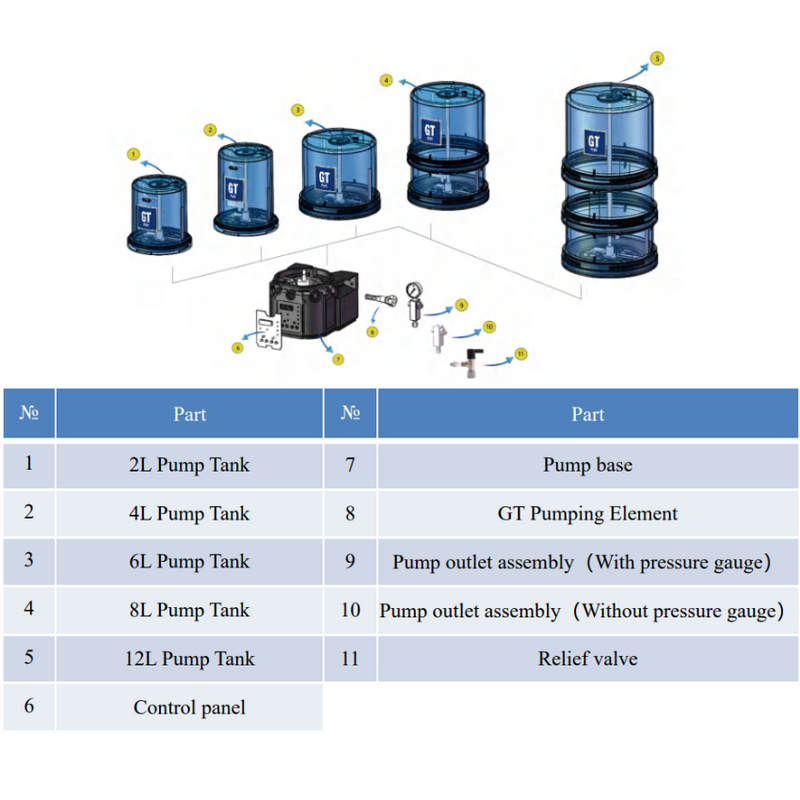

| Reservoir Options | 2L | 4L | 6L | 8L | 12L — transparent acrylic |
| Pumping Elements | 1 (standard) — expandable up to 5 |
| Flow Rate per Element | 4 ml/min (adjustable with washers: −1 ml/min per washer, max 2 washers) |
| Compatible Lubricants | Oil (min. 46 cSt viscosity) | Grease NLGI 000, 00, 0, 1, 2 |
| Fill Port | Grease nipple (for grease) | Filter strainer (for oil) |
| Operating Temperature | −50°C to +90°C |
| Ingress Protection | IP67 (dust-tight and waterproof) |
| Operating Modes | Intermittent or continuous |
| Connector | 7-pin Tyco bayonet plug |
Features
| •300 bar maximum outlet pressure — capable of reaching lubrication points more than 20m from the pump unit |
| •Built-in motor, gearbox, and integrated control timer with LED display — no external controller required for standalone operation |
| •Password-protected timer with manual override and pre-lube capability for on-demand lubrication without altering the programmed cycle |
| •Low-level and pulse alarm with combined LED indicator and audible buzzer — alerts operators before lubricant runs out or a cycle fault occurs |
| •Transparent acrylic reservoir in five size options (2L to 12L) for continuous visual level monitoring without disassembly |
| •Dual fill port configuration — grease nipple for grease applications and filter strainer for oil applications |
| •Expandable from 1 to 5 pumping elements; flow rate fine-tunable with adjustment washers (−1 ml/min per washer, up to 2 washers) |
| •IP67-rated housing engineered for extreme environments — operates reliably from −50°C to +90°C |
| •7-pin Tyco bayonet plug for secure, weather-resistant electrical connection |
Applications
| •Fixed plant, industrial machinery, and automated production lines requiring 24V DC centralised lubrication |
| •Mining, construction, and quarrying equipment operating in harsh, dusty, or wet environments where IP67 protection is essential |
| •Multi-point progressive lubrication systems serving bearings, pins, bushings, and open gears across large machine structures |
| •Cold-climate or high-temperature environments (−50°C to +90°C) where conventional lubricators fail |
| •Standalone timer-controlled installations as well as PLC-integrated systems requiring precise, scheduled intermittent or continuous lubrication cycles |
Compatible with oil (min. 46 cSt) and grease up to NLGI 2. Flow rate adjustment washers reduce output by 1 ml/min each; maximum 2 washers per element. For divider valve selection, accessory cables, or system design assistance contact Lube Control on 1300 917 946 or sales@lubecontrol.com.au.
Disclaimer
Technical specifications may change. Please confirm with the manufacturer.
