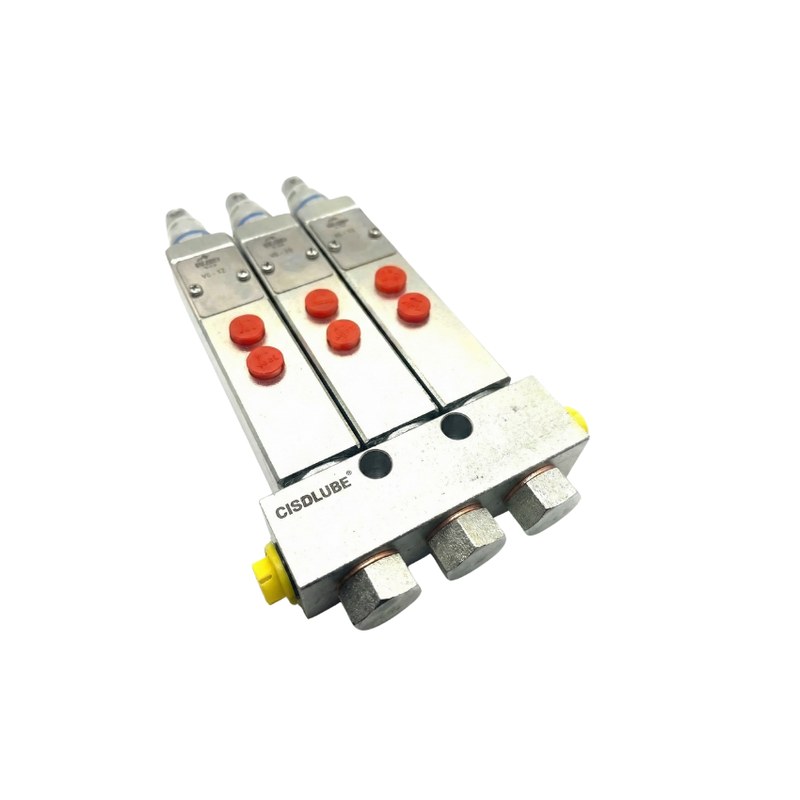

CisoLube - Large Injectors
The VL-1X Series are high-pressure metering valves designed for single-line centralised lubrication systems. Shipped as complete sets with manifolds from 1 to 6 ports, each valve delivers an externally adjustable metering quantity of 0.25 to 1.31 ml per cycle and is compatible with greases up to NLGI 2 and fluoroelastomer packings. An indicator pin on each valve provides a visual check of operation without disassembly, and individual metering devices can be removed easily for inspection or replacement. Built from carbon steel and rated for operating pressures of 128 to 241 bar, the VL-1X Series is well-suited to heavy-duty applications in construction, mining, and the steel industry.
Technical Specifications
| Outlets | 1 to 6 |
| Metering Quantity | 0.25 – 1.31 ml/cycle (externally adjustable) |
| Compatible Lubricants | Grease NLGI 0, 1, 2 (fluoroelastomer packing compatible) |
| Operating Temperature | Max. 82 °C |
| Operating Pressure | 128 to 241 bar |
| Material | Carbon steel |
| Connection — Main Line | 3/8 NPT (F) |
| Connection — Outlet | 1/8 NPT (F) |
| Single Valve Part Number | VL1X00 |
Features
| •Shipped as complete sets with distributor block manifolds from 1 to 6 ports — ready for direct installation into single-line high-pressure lubrication systems |
| •Externally adjustable output — metering quantity set between 0.25 and 1.31 ml/cycle without system disassembly |
| •Indicator pin on each valve provides a visual check of injector operation at a glance |
| •Individual metering devices can be removed easily from the manifold for inspection or replacement without disturbing the rest of the system |
Complete Set Ordering Guide (VL1X01–VL1X06)
| Part No. | Outlets | A (mm) | B (mm) | Inlet / Outlet |
| VL1X01 | 1 | — | 63 | 3/8 NPT (F) / 1/8 NPT (F) |
| VL1X02 | 2 | — | 76.4 | 3/8 NPT (F) / 1/8 NPT (F) |
| VL1X03 | 3 | 31.7 | 107.5 | 3/8 NPT (F) / 1/8 NPT (F) |
| VL1X04 | 4 | 63.4 | 139 | 3/8 NPT (F) / 1/8 NPT (F) |
| VL1X05 | 5 | 95.1 | 170.5 | 3/8 NPT (F) / 1/8 NPT (F) |
| VL1X06 | 6 | 126.8 | 202.7 | 3/8 NPT (F) / 1/8 NPT (F) |
Applications
| •Construction machinery |
| •Mining and mineral processing |
| •Steel industry |
Single metering valve (Part No. VL1X00, 1/8 NPT (F) outlet) and distributor blocks (DBVL01–DBVL06) also available separately. Supplied by Lube Control Pty Ltd — call 1300 917 946 or visit lubecontrol.com.au for technical support and system configuration advice.
Disclaimer
Technical specifications may change. Please confirm with the manufacturer.
