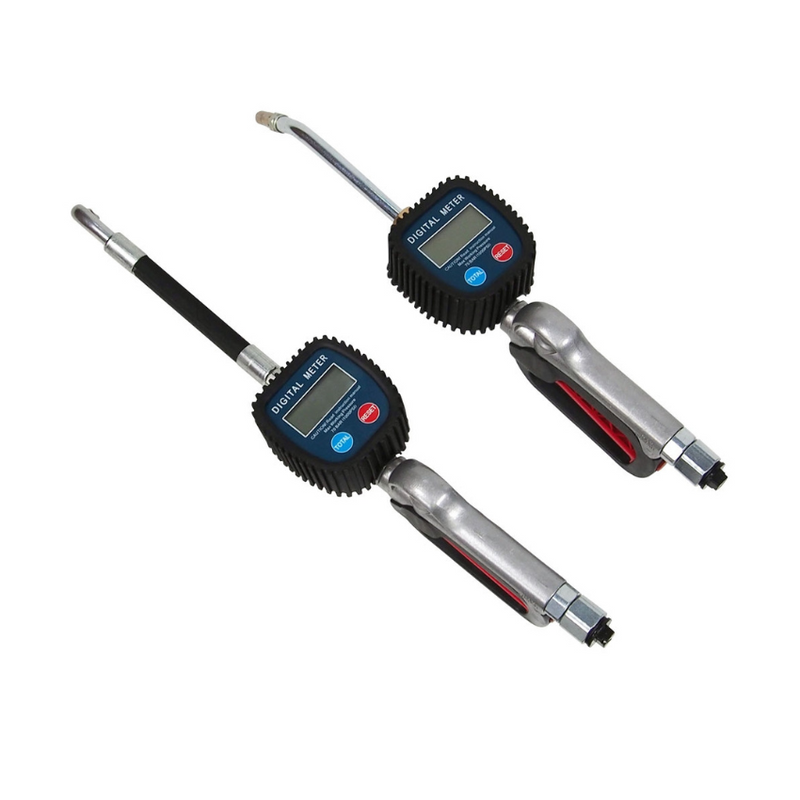

STM Digital Meter Oil Control Gun
STM The Digital Meter Oil Control Gun accurately measures the quantities of various engine oil and gear oil. In working mode, it displays both the partial and total quantities, and can be calibrated at any time to achieve the most accurate performance. The gun supports a maximum flow rate of up to 35 LPM and is available with a manual nozzle with rigid spout or a semiautomatic nozzle with flexible spout.
Technical Specifications
| Medium | Engine Oil and Gear Oil |
| Inlet/Outlet | ½" BSPI |
| Velocity | 1–35 L/min |
| Max. Pressure | 70 bar / 1015 PSI |
| Min. Burst Pressure | 200 bar / 2900 PSI |
| Storage Temperature | -20 – +70°C |
| Humidity | <90% RU |
| Work Temperature | -10 – +60°C |
| Precision | 0.3% |
| Display | Max. 7 digits |
| Power | Lithium battery CRA123A (1300mAH) |
| Weight (including battery) | 570 g |
Features
| •Accurately measures the quantities of various engine oil and gear oil |
| •In working mode, displays both partial and total quantities |
| •Can be calibrated at any time to achieve the most accurate performance |
| •Maximum flow rate up to 35 LPM |
| •Manual nozzle with rigid spout |
| •Semiautomatic nozzle with flexible spout |
The information contained in this data sheet is based on data considered to be accurate. No warranty is expressed or implied regarding the accuracy of this data. Product specifications and availability are subject to change without notice. Lube Control Pty Ltd accepts no responsibility for any loss or damage arising from the use of this information.
Technical Documents
Digital Meter Oil Control Gun
Download PDFDisclaimer
Technical specifications may change. Please confirm with the manufacturer.
