Digital Oil Meters

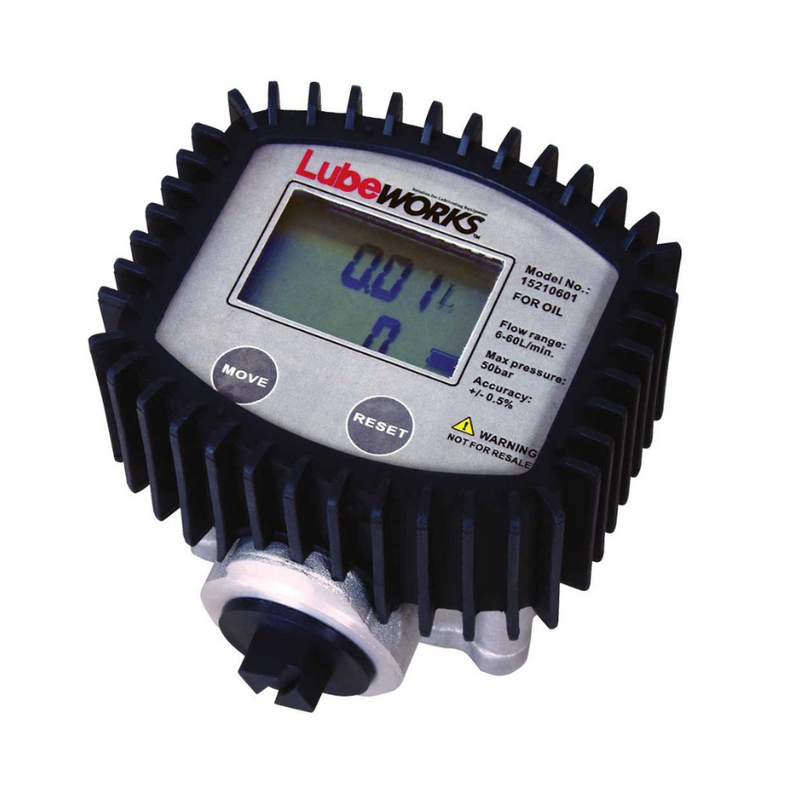

The STM Digital Meter (Model: DITI15210601) is a compact, portable, and reliable flow meter designed with an accurate measuring chamber and oval gears inside an aluminium body with LCD screen. Suitable for measuring oil, the meter installs via thread joint directly into the pipeline and features both a resettable partial register and a non-resettable total register. The unit supports multiple measurement units and includes a user-adjustable correction factor for accurate field calibration.
Technical Specifications
| Item No. | DITI15210601 |
| Fluid Type | Oil |
| Flow Rate | 6 – 80 L/min |
| Operating Pressure (Max) | 50 bar (725 psi) |
| Operating Temperature | -10°C – +50°C (14°F – 122°F) |
| Accuracy | ±0.5% |
| Inlet and Outlet | 3/4" BSP |
| Screen | 5-Digit resettable total (0.01 – 999.99) | 5-Digit non-resettable total (1 – 99999) |
| Measurement Units | Litre, Gallon, Pint, Quart |
| Weight | 0.8 kg (1.8 lbs) |
| Power Supply | 1 × 3V (1 × CR2) |
Features
| •Accurate measuring chamber with oval gear design in an aluminium body for portable, reliable installation |
| •LCD screen displays both resettable partial total and non-resettable cumulative total |
| •Two-button operation (MOVE and RESET) for resetting totals, unit changes, and calibration mode |
| •User-adjustable correction factor for accurate field calibration |
| •Battery low indicator on LCD display; battery type 1 × CR2 (3V) |
| •Installs via thread joint in the pipeline; filter installation at inlet recommended to prolong meter life |
The information contained in this data sheet is based on data considered to be accurate. No warranty is expressed or implied regarding the accuracy of this data. Product specifications and availability are subject to change without notice. Lube Control Pty Ltd accepts no responsibility for any loss or damage arising from the use of this information.
