Drain/Extractor Combo.90L(Chamber)

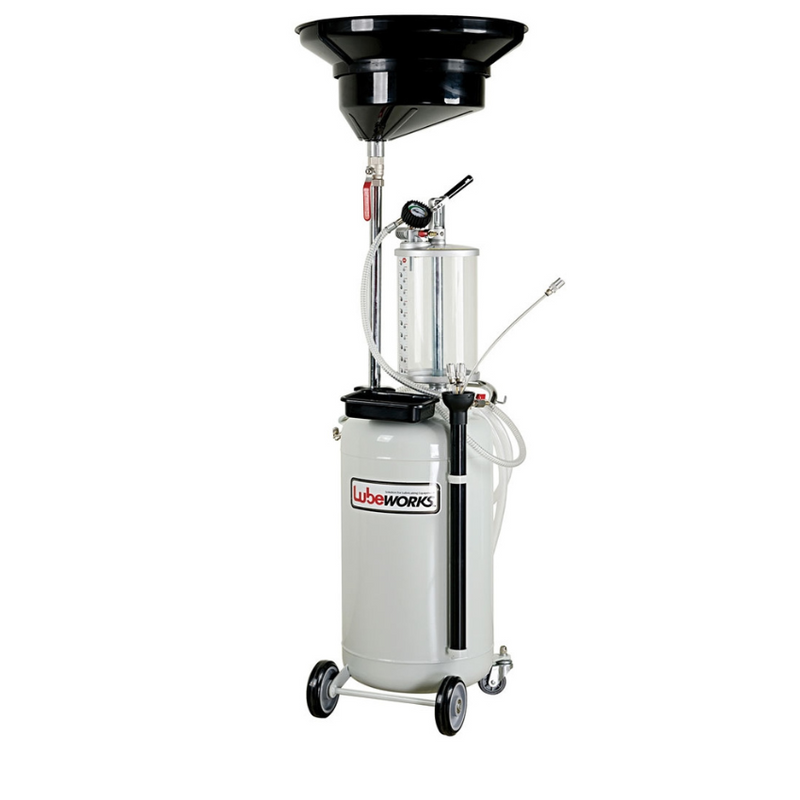

The DITIAODE290E is a 90 litre Drain/Extractor Combo with chamber, combining gravity draining and air-operated vacuum extraction in a single unit. With a 18 litre collection bowl, 2000 mm suction tube and draining hose, and a 606 mm extension funnel, this unit is designed for fast and efficient waste oil collection and extraction in professional workshop environments.
Technical Specifications
| Model | DITIAODE290E |
| Capacity | 90 litre |
| Collection Bowl Capacity | 18 L |
| Air Pressure for Vacuum | 7–8 bar / 100–115 psi |
| Max Draining Pressure | 1 bar / 14.5 psi |
| Suction Speed | 2 LPM / 0.5 GPM (oil temp >90°C, suction tube diameter 6mm) |
| Suction Tube Length | 2000 mm |
| Draining Hose Length | 2000 mm |
| Extension Funnel Diameter | 606 mm / 23.8" |
| Air Inlet | 1/4" quick plug |
Features
| •90 litre capacity drain and extractor combo with chamber |
| •18 litre collection bowl for immediate fluid capture |
| •2000 mm suction tube and draining hose for flexible reach |
| •Extension funnel included — 606 mm / 23.8" diameter |
| •1/4" quick plug air inlet for fast connection to existing air lines |
The information contained in this data sheet is based on data considered to be accurate. No warranty is expressed or implied regarding the accuracy of this data. Product specifications and availability are subject to change without notice. Lube Control Pty Ltd accepts no responsibility for any loss or damage arising from the use of this information.
