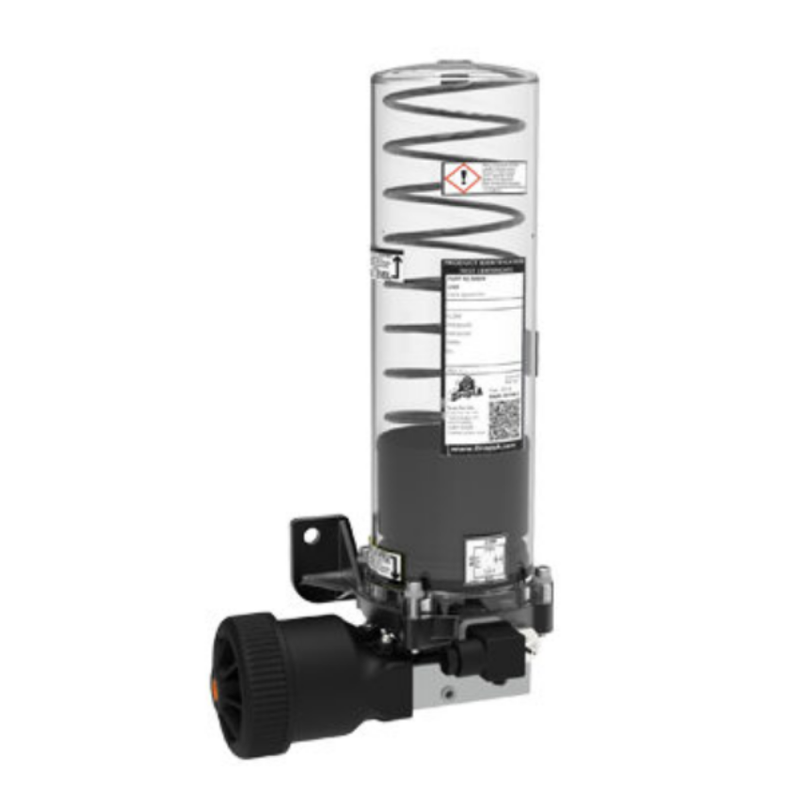

Dropsa Loco Pump S3, 2kg, Air Operated
The Dropsa LOCOPUMP S3 is a single-acting pneumatic grease pump designed for use in small to medium single-line progressive divider lubrication systems, including any progressive divider valve. This 2 kg reservoir model (Part No. 3413050) delivers a fixed 2 cm³ per stroke at a 50:1 ratio, making it ideal for machines where electrical power is unavailable but compressed air is present. All pumping element components are constructed from hardened steel with a ground-hardened steel piston, and the front fill port includes a filling filter to ensure only clean lubricant enters the reservoir. The transparent reservoir provides a clear view of remaining grease, and a low-level sensor is fitted as standard to provide remote alarm signals to the host machine.
Technical Specifications
| Part Number | 3413050 |
| Pump Type | Single-acting pneumatic grease pump |
| Reservoir Capacity | 2 kg (transparent) |
| Output per Stroke | 2 cm³ |
| Compression Ratio | 50:1 |
| Pumping Element Material | Hardened steel (all components) |
| Piston | Ground-hardened steel |
| Fill Port | Front fill with integrated filling filter |
| Low-Level Sensor | Fitted as standard — provides remote alarm signal to host machine |
| Compatible Systems | Small to medium single-line progressive divider lubrication systems — compatible with any progressive divider valve |
Features
| •Pneumatic operation — ideal for machines where electrical power is unavailable but compressed air is present |
| •Fixed 2 cm³ output per stroke at a 50:1 ratio for precise, consistent grease delivery |
| •All pumping element components in hardened steel with a ground-hardened steel piston — built for long service life under continuous duty |
| •Front fill port with integrated filling filter — ensures only clean lubricant enters the reservoir |
| •Transparent 2 kg reservoir for clear visual monitoring of remaining grease level |
| •Low-level sensor fitted as standard — provides remote alarm signals to the host machine when grease is running low |
| •Compatible with any progressive divider valve — suitable for small to medium single-line progressive divider lubrication systems |
