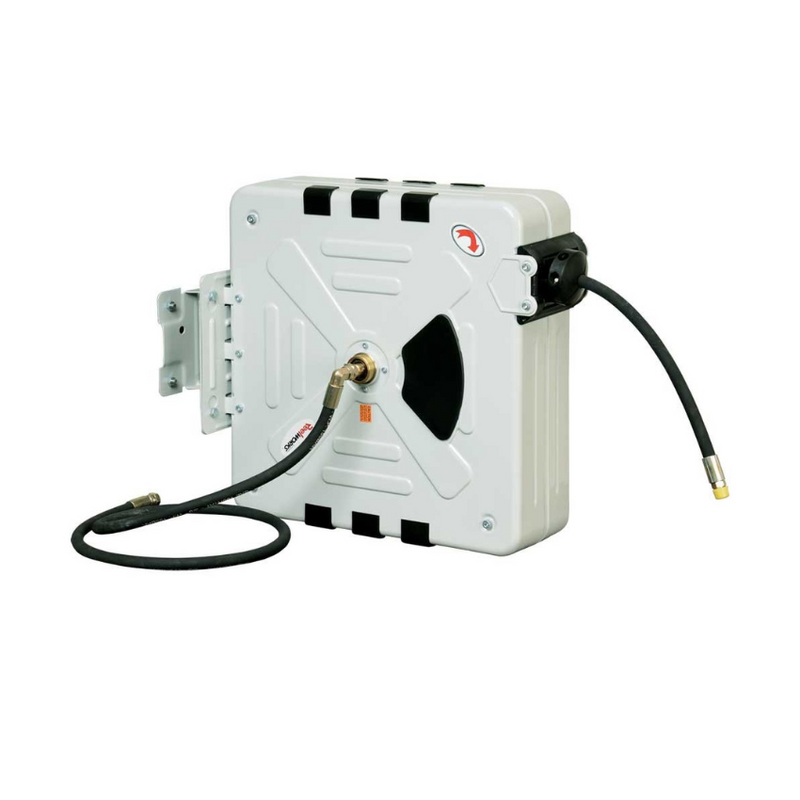

STM Enclosed Hose Reel - Oil
STM The Enclosed Hose Reel – Oil (Model: DITI29508154R1) is a heavy duty, compact hose reel designed to transfer oil. With a maximum pressure of 2000 psi and SAE 100 R1 1/2" hose over 15 metres, it features spring tension that is easily adjustable from the outside, four direction non-snag rollers to reduce hose wear and abrasion, and a repositionable mounting bracket for varied application.
Technical Specifications
| Model | DITI29508154R1 |
| Application | Oil |
| Inlet/Outlet Fitting | 1/2" BSP F / 1/2" BSP M |
| Maximum Pressure | 2000 psi |
| Hose I.D. / SAE Capacity | SAE 100 R1 1/2" |
| Hose Length | 15 metres |
Features
| •Heavy duty construction |
| •Designed to transfer oil, grease, water, and air |
| •Compact size and easy installation |
| •Spring tension easily adjustable from the outside |
| •Four direction non-snag rollers reduce hose wear and abrasion |
| •Mounting bracket can be repositioned for varied application |
The information contained in this data sheet is based on data considered to be accurate. No warranty is expressed or implied regarding the accuracy of this data. Product specifications and availability are subject to change without notice. Lube Control Pty Ltd accepts no responsibility for any loss or damage arising from the use of this information.
