Stainless Grease Block with Grease Nipples
Fat Adder Stainless Steel Grease Anchor Blocks allow grease hoses to be attached and run as remote grease lines to hard-to-reach lubrication points. Constructed from Stainless Steel 316 with Stainless Steel 304 grease nipples included as standard, they are available in 1 to 8 connection configurations and mountable anywhere using the two 6.5 mm mounting holes. All blocks use 1/8 BSPP threads, and W, H, and D dimensions are consistent across the range at 20 Ć 20 Ć 6.5 mm.
Technical Specifications
| Block Material | Stainless Steel 316 |
| Grease Nipple Material | Stainless Steel 304 (SS 316 grease nipple option available upon request) |
| Nipple Thread | 1/8 BSPP |
| Connection Options | 1, 2, 3, 4, 5, 6, 8 |
| Mounting Holes | 6.5 mm (2 holes) |
| W Ć H Ć D (all models) | 20 mm Ć 20 mm Ć 6.5 mm |
Dimensions by Model
| Part No. | Connections | L (mm) | L1 (mm) | L2 (mm) | L3 (mm) |

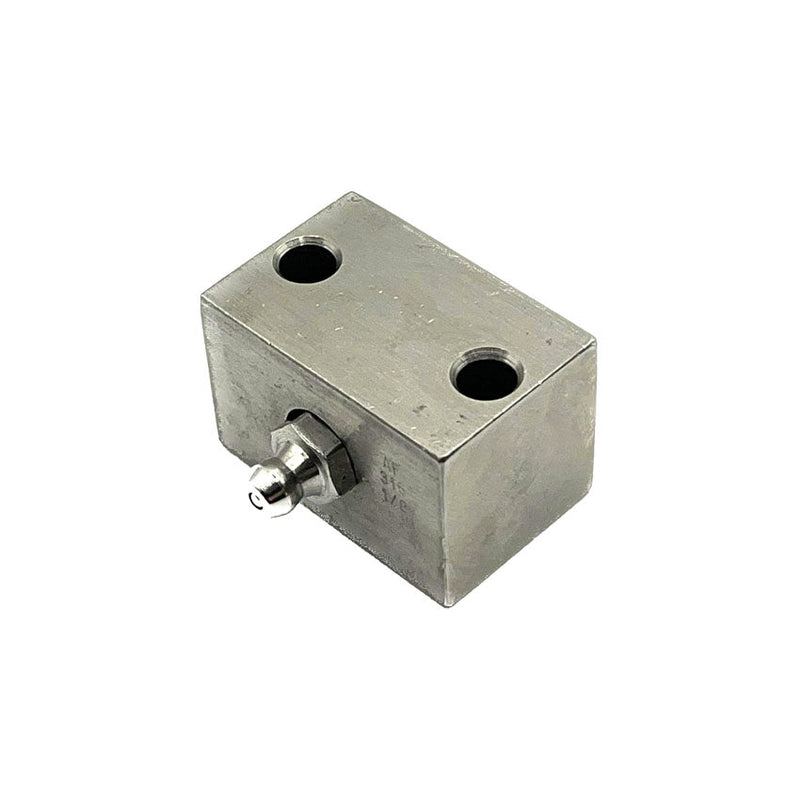

| RGB1SS | 1 | 38 | 28 | ā | 12.5 |

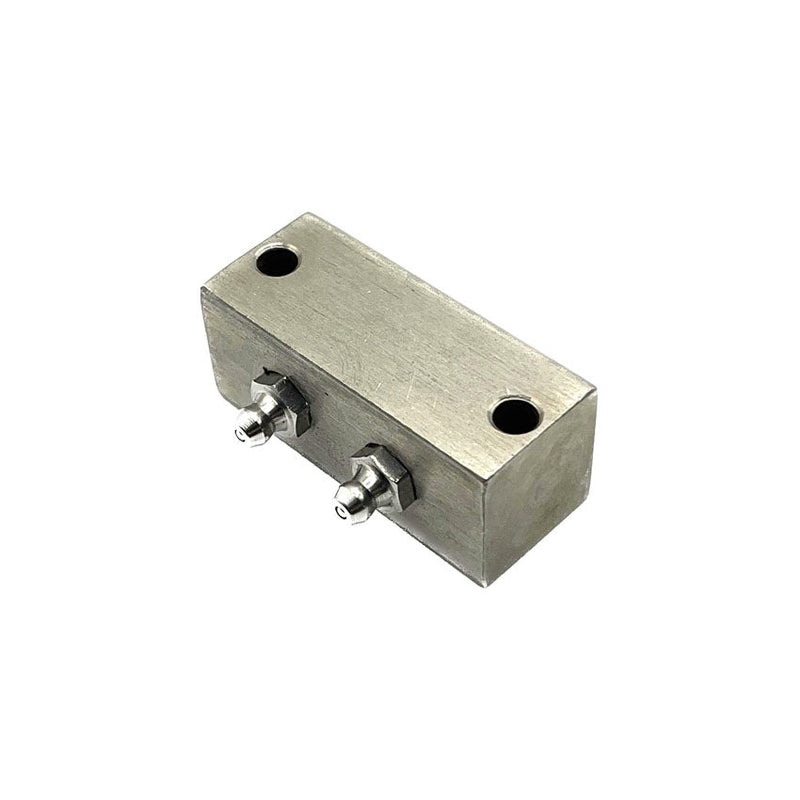

| RGB2SS | 2 | 60 | 50 | 22 | 12.5 |

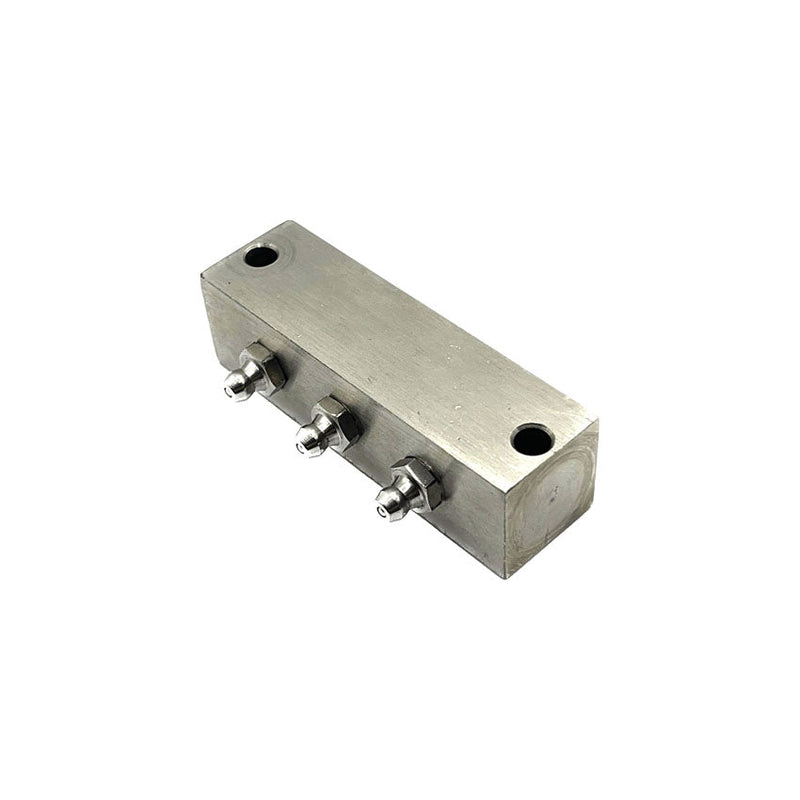

| RGB3SS | 3 | 84 | 74 | 22 | 12.5 |

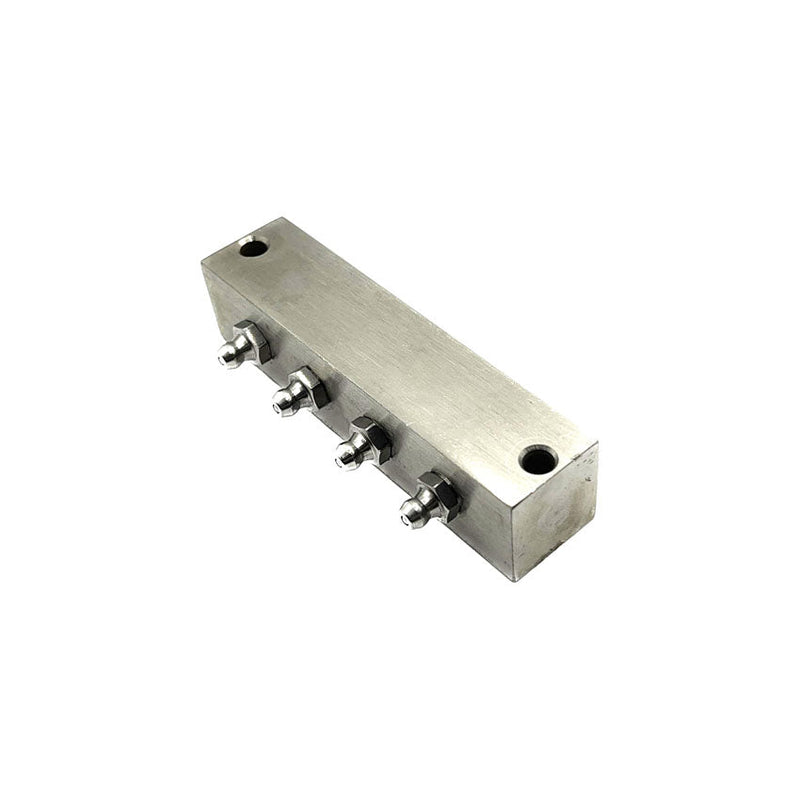

| RGB4SS | 4 | 106 | 96 | 22 | 12.5 |

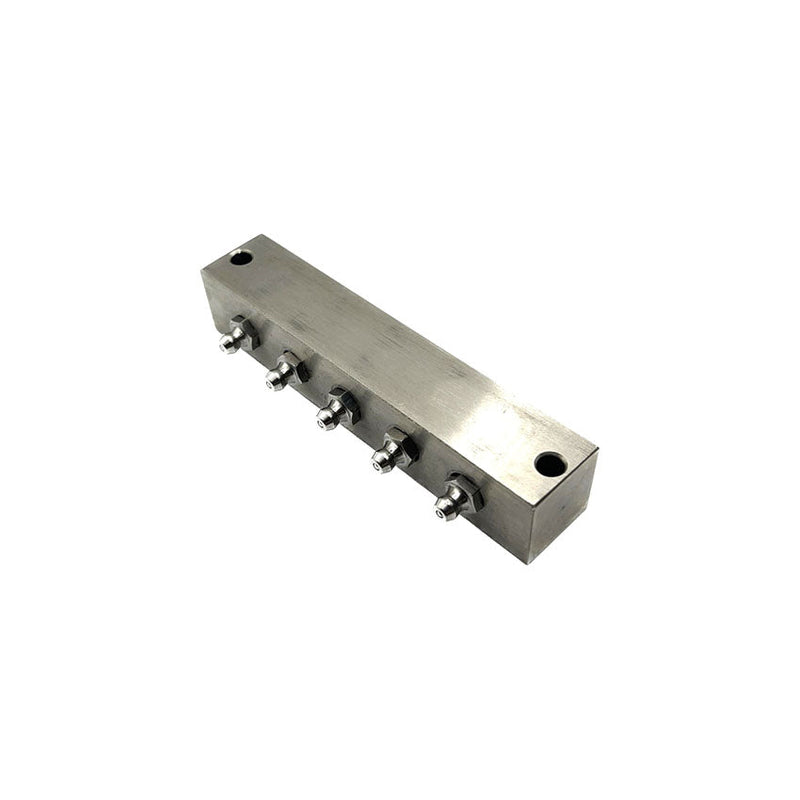

| RGB5SS | 5 | 128 | 118 | 22 | 12.5 |

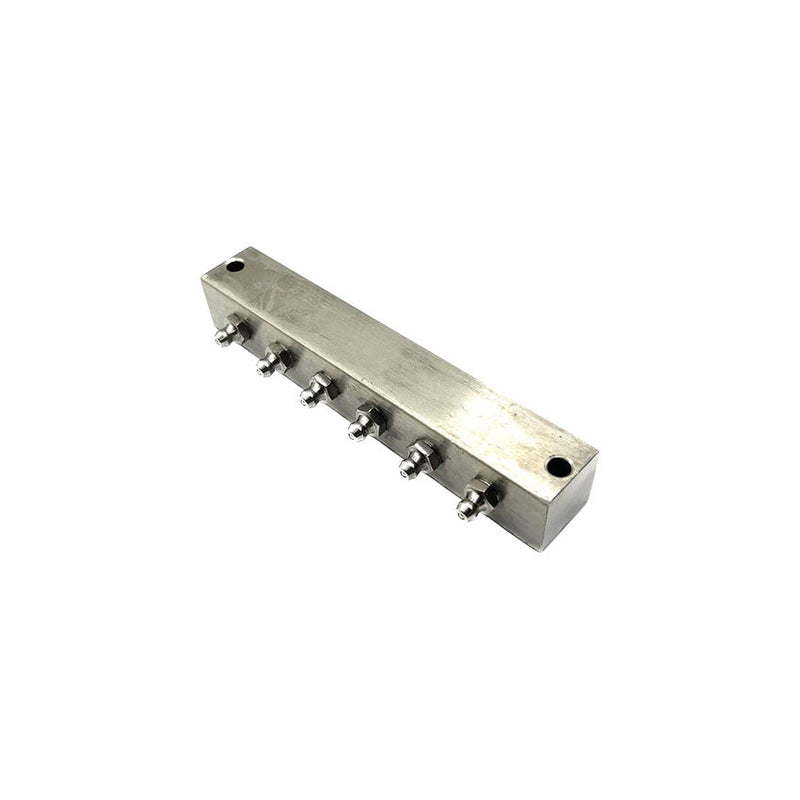

| RGB6SS | 6 | 150 | 140 | 22 | 12.5 |

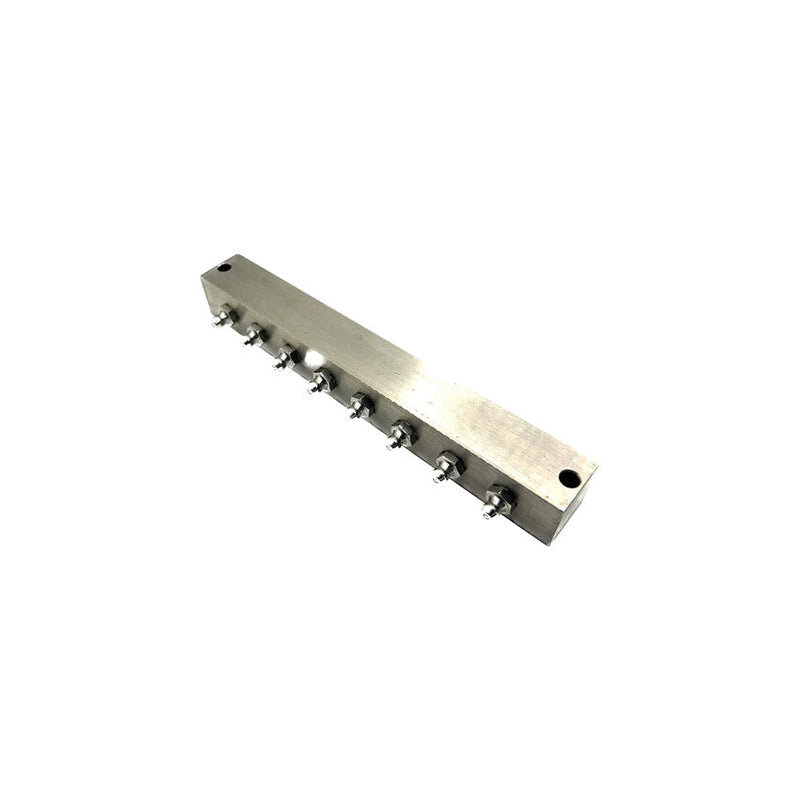

| RGB8SS | 8 | 194 | 184 | 22 | 12.5 |
Block material: Stainless Steel 316. Grease nipples: Stainless Steel 304 as standard ā SS 316 grease nipple option available upon request. Manufactured and distributed by Lube Control Pty Ltd (Fat Adder Remote Grease Lines) ā call 1300 917 946Ā
Ā
Technical Documents
Fatadder Stainless Steel Grease Anchor Blocks with Drawings
Download PDFDisclaimer
Technical specifications may change. Please confirm with the manufacturer.
