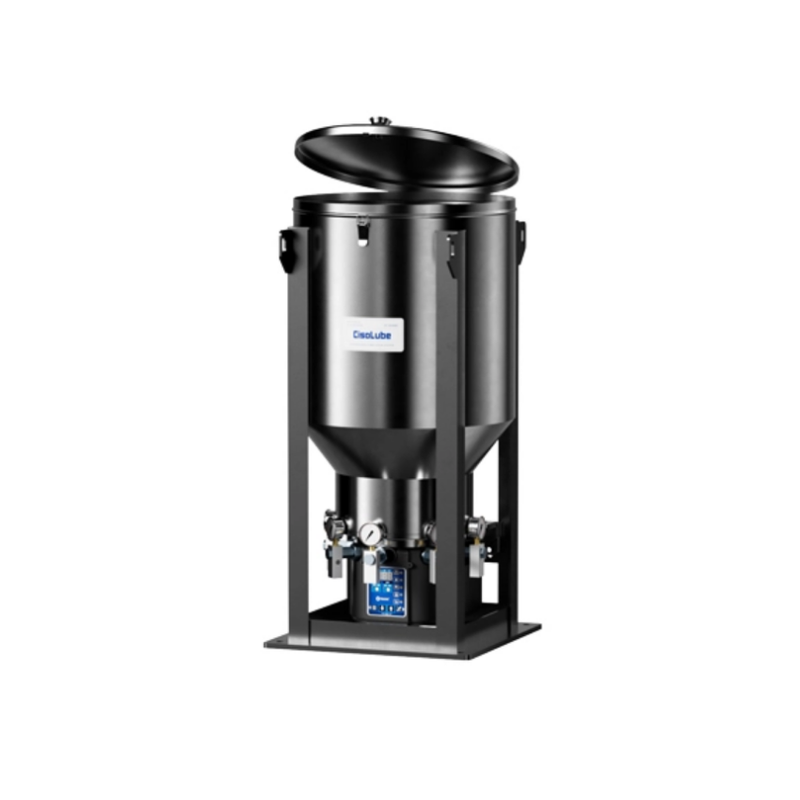

GT Heavy Lubricator, (30L or 60L reservoir), 240V, with timer, low level, oil with up to 5 outlets
The CisoLube GT Heavy 240V is a robust, high-pressure, large-volume hard-wired lubricator pump and the heart of a progressive lubrication system designed for intermittent or continuous pre-programmed lubrication cycles. Running on 240V AC mains power and available with a 30L or 60L metal reservoir, it delivers up to 300 bar (30 MPa) of outlet pressure — enough to reach grease points more than 20m away. When coupled with progressive divider valves, it can serve anywhere from a single lubrication point to many hundreds, making it the go-to centralised lubrication solution for heavy industry, agriculture, wind power, and mining.
Technical Specifications
| Voltage | 240V AC |
| Reservoir Options | 30L | 60L — metal with flip lid |
| Maximum Outlet Pressure | 30 MPa (300 bar) |
| Pumping Elements | 1 (standard) — expandable up to 5 |
| Flow Rate per Element | 4 ml/min (adjustable: −1 ml/min per washer, max 2 washers) |
| Lubricant Compatibility | Oil (min. 46 cSt) | Grease NLGI 000, 00, 0, 1, 2 |
| Filling Thread | 1/4 BSP grease nipple thread |
| Operating Temperature | −50°C to +90°C |
| Ingress Protection | IP67 (dust-tight and waterproof) |
| Operating Modes | Intermittent or continuous |
| Timer Option | With integrated timer & manual override (TMR) | Without timer (NTMR) |
| Low Level Alarm | With low-level indicator & pulse alarm (LL) | Without (NLL) — warning light and buzzer |
| Max. Divider Valve Outlets | Up to 24 outlets per progressive divider valve |
| Example Part Number | LC-GT-H-60L-240V-TMR-LL-G-5 (60L reservoir, 240VAC, with timer, with low-level alarm, grease, 5 outlets) |
Features
| •300 bar (30 MPa) maximum outlet pressure — capable of reaching lubrication points more than 20m from the pump unit |
| •Mains-powered 240V AC operation — purpose-built for fixed plant, workshops, and permanently powered industrial installations |
| •Large-volume 30L or 60L metal reservoir with flip lid for extended operation between refills on high-demand machinery |
| •Progressive divider valve system with up to 24 outlets per valve — scales from 1 to hundreds of lubrication points using primary and secondary valve networks; spool design prevents lubricant from taking the path of least resistance |
| •Integrated programmable timer with manual override (TMR) for standalone operation, or order without timer (NTMR) for pure PLC-driven control |
| •Low-level and pulse alarm with warning light and audible buzzer (LL option) — alerts operators before lubricant runs out or a cycle fault occurs |
| •Electrical switch monitoring on the main divider valve provides cycle confirmation and system fault detection |
| •1 to 5 pumping elements configurable at time of order — each displacing 4 ml/min, fine-tunable with adjustment washers (−1 ml/min per washer, max 2 washers) |
| •IP67-rated housing engineered for extreme environments — operates reliably from −50°C to +90°C |
Applications
| •Heavy machinery and steel works requiring high-pressure, large-volume centralised lubrication from a permanent mains-powered installation |
| •Agricultural machinery operating across extended intervals between maintenance stops where large reservoir capacity is essential |
| •Wind power equipment with multiple lubrication points requiring reliable, automated greasing in remote or elevated installations |
| •Mining equipment operating in harsh, dusty, and wet environments where IP67 protection and extreme-temperature performance are critical |
| •Any fixed industrial installation requiring scalable progressive lubrication — from a handful of bearings to hundreds of simultaneous lube points |
Order code format: LC – GT – H – [30L/60L] – 240V – [TMR/NTMR] – [LL/NLL] – [G/O] – [1–5 outlets]. Compatible with oil (min. 46 cSt) and grease up to NLGI 2. Filling thread: 1/4 BSP. For divider valve selection or system design assistance contact Lube Control on 1300 917 946 or sales@lubecontrol.com.au.
Disclaimer
Technical specifications may change. Please confirm with the manufacturer.
