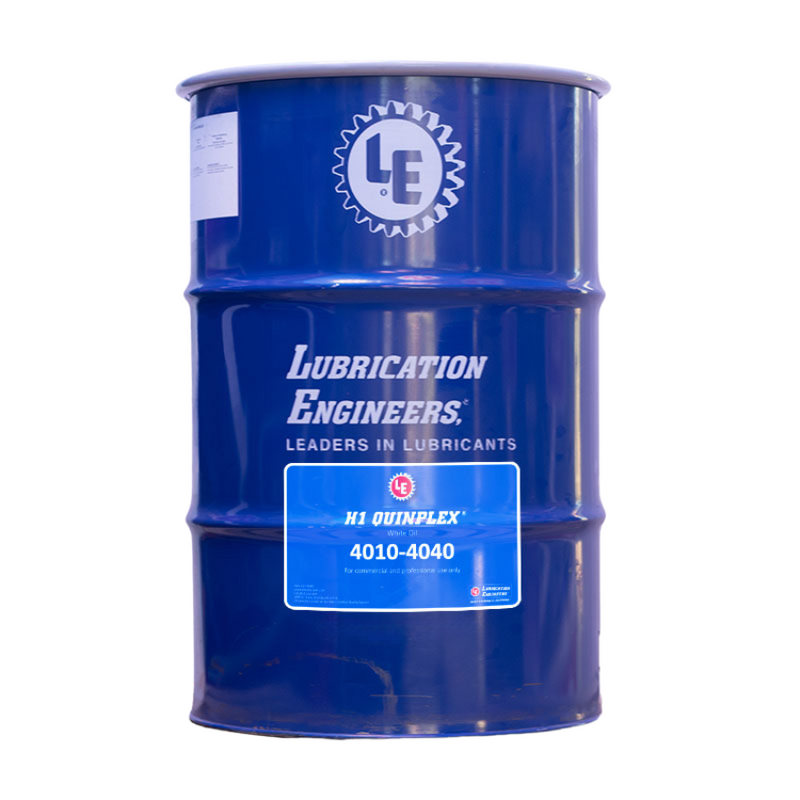

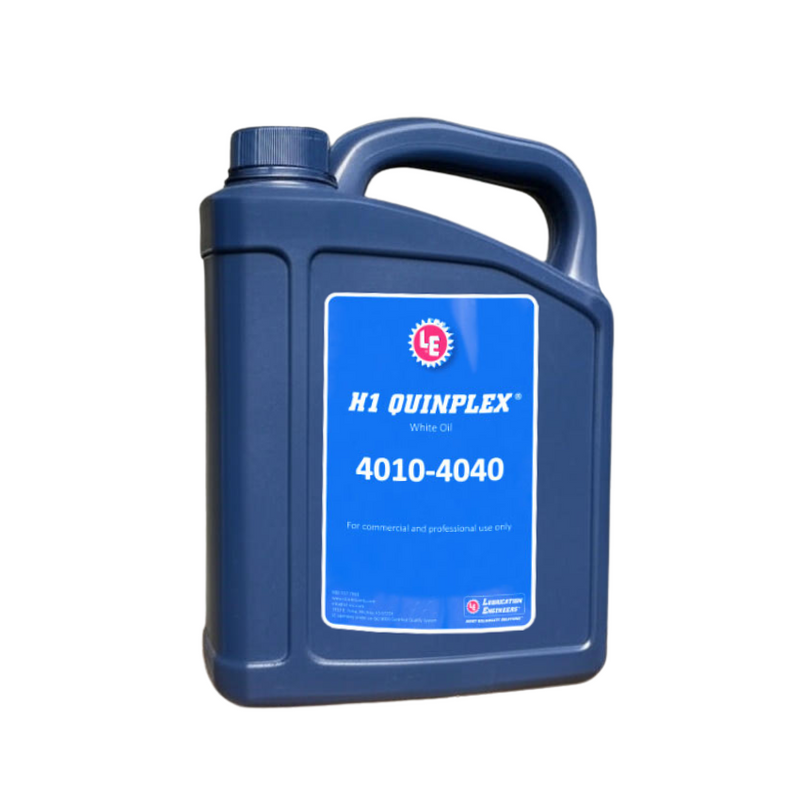

LE H1 Quinplex White Oil ISO150
LE H1 Quinplex® White Oils (4010–4040) are NSF H1 registered lubricants designed for use where superior anti-wear, rust and oxidation resistance and H1 performance are required. Extremely pure, non-staining, odourless, tasteless, translucent and non-irritating, they can be used with confidence where incidental food contact or staining can occur. Unlike many white oils, they include anti-wear protection, and LE’s exclusive Quinplex® additive imparts water resistance, tackiness (clingability) and a barrier against corrosion and rust.
GRADE COMPARISON
| Property | 4010 | 4020 | 4030 | 4040 |
| ISO Grade | 46 | 68 | 100 | 150 |
| Equivalent SAE Grade | 10 | 20 | 30 | 40 |
| Gravity, °API | 27.1 | 26.7 | 26.2 | 26.3 |
| Viscosity, SUS @ 100°F | 224 | 349.4 | 532 | 702.3 |
| Viscosity, SUS @ 210°F | 44.97 | 50.77 | 58.07 | 74.86 |
| Viscosity, cSt @ 40°C | 43.15 | 66.88 | 101 | 151.6 |
| Viscosity, cSt @ 100°C | 5.66 | 7.40 | 9.5 | 14.22 |
| Flash Point | 188°C (370°F) | 198°C (390°F) | 210°C (410°F) | 220°C (428°F) |
| Pour Point | -36°C (-33°F) | -33°C (-27°F) | -30°C (-22°F) | -30°C (-22°F) |
| Four Ball Wear, 40 kg, scar dia., mm (ASTM D4172) | 0.39 | 0.39 | 0.39 | 0.39 |
| Rust Test (ASTM D665A) | Pass | Pass | Pass | Pass |
| Falex EP, lbs force (ASTM D3233) | 1500 | 1500 | 1500 | 1500 |
| Copper Strip Corrosion (ASTM D130) | 1b | 1b | 1b | 1b |
| Foam Test (ASTM D892) | 10/0; 0/0; 20/0 | 10/0; 0/0; 20/0 | 0/0; 0/0; 0/0 | 0/0; 0/0; 0/0 |
| Oxidation Resistance, RPVOT, minutes (ASTM D2272) | 800 | 800 | 800 | 800 |
KEY FEATURES
| •NSF H1 registered for incidental food contact |
| •Certified Kosher Pareve |
| •Certified Halal by IFANCA |
| •Extremely pure, non-staining, odourless, tasteless, translucent and non-irritating |
| •Superior anti-wear performance – many white oils do not include anti-wear additives |
| •Increased productivity through extended equipment life and less downtime |
| •Quinplex® imparts water resistance, tackiness and a barrier against corrosion and rust |
| •RPVOT (ASTM D2272) testing shows longer oxidation life than any of the other oils tested – petroleum or synthetic |
| •Four ball wear testing (ASTM D4172) shows the smallest scar and best wear protection of all oils tested |
APPLICATIONS
| •Food processing / animal feed preparation – lubricant and rust preventative for machinery and other equipment |
| •Aluminium / metallic foil and packages – drawing, stamping, forming and rolling metallic foil and packages used in food packaging |
| •Textile machinery |
| •Paper machinery |
| •Bearings, bushings, slides, chains, compressors, vacuum pumps and hydraulics |
ADDITIONAL INFORMATION
| Performance Requirements Met | NSF H1 Registered; Kosher Pareve; Halal (certified by IFANCA); Angelus Sanitary Can Machine (except 4010); Ex-cell-o Corp – Pure-Pack Machine (4030); Hydreco (4010) |
| Available Grades | 4010 – ISO 46; 4020 – SAE 20 / ISO 68; 4030 – SAE 30 / ISO 100; 4040 – SAE 40 / ISO 150 |
The information contained in this data sheet is based on data considered to be accurate. No warranty is expressed or implied regarding the accuracy of this data. Product specifications and availability are subject to change without notice. Lube Control Pty Ltd accepts no responsibility for any loss or damage arising from the use of this information.
