ILC DPX
The DPX Series are progressive divider valves designed for automatic lubrication systems requiring positive high-pressure lubrication, precise volume control, and built-in indication of system blockages or back pressure. The DPX system doses lubricant through a sequential piston movement driven by a single delivery flow — each piston controls the next in sequence, and any malfunction or blockage stops the entire sequence, providing immediate fault detection. Available from 3 to 20 outlets across a range of inlet, centre, and end section configurations, the DPX is a compact, high-quality progressive divider suitable for all applications.
Technical Specifications
| Standard Material | Zinc Nickel Plated Steel (ZnNi) |
| Maximum Pressure | 4,500 psi (300 bar) |
| Compatible Lubricants | Oil or Grease up to NLGI 2 |
| Displacement per Outlet | 25 mm³ to 210 mm³ |
| Maximum Operating Temperature | 100 °C |
| Inlet Connection | M10 x 1 |
| Outlet Connection | M10 x 1 |
Features & Benefits
| •Positive discharge of a precisely measured quantity of lubricant guaranteed at every cycle |
| •Built-in indication of system blockages or back pressure — any piston malfunction or blocked outlet stops the entire sequence, immediately signalling the fault |
| •Suitable for system functioning control — a single visual or electrical control monitors the entire distribution process |
| •Operation monitoring with indicators and/or contact plugs |
| •Long operational life assured by careful selection of high-grade materials and strict quality control |
| •System design flexibility — wide range of outlet counts and displacement volumes allow precise tailoring to any application |
Complete Divider Valve Assemblies
Inlet Sections
| •2.A.025.D.1N.M10 — DPX 25 mm³ inlet section |

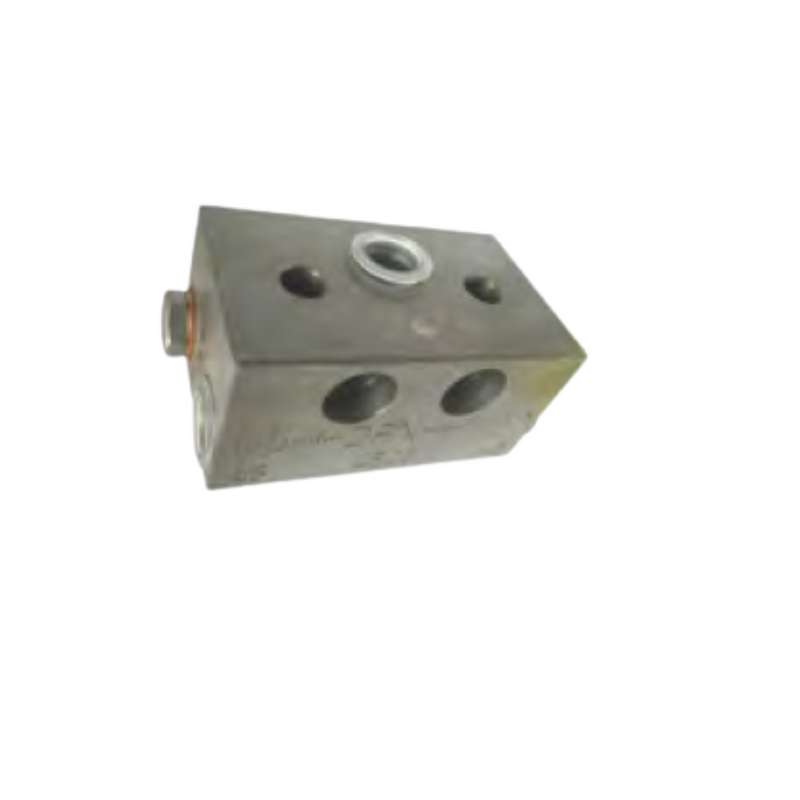

| •2.A.045.D.1N.M10 — DPX 45 mm³ inlet section |
| •2.A.075.D.1N.M10 — DPX 75 mm³ inlet section |
| •2.A.105.D.1N.M10 — DPX 105 mm³ inlet section |
Centre Sections

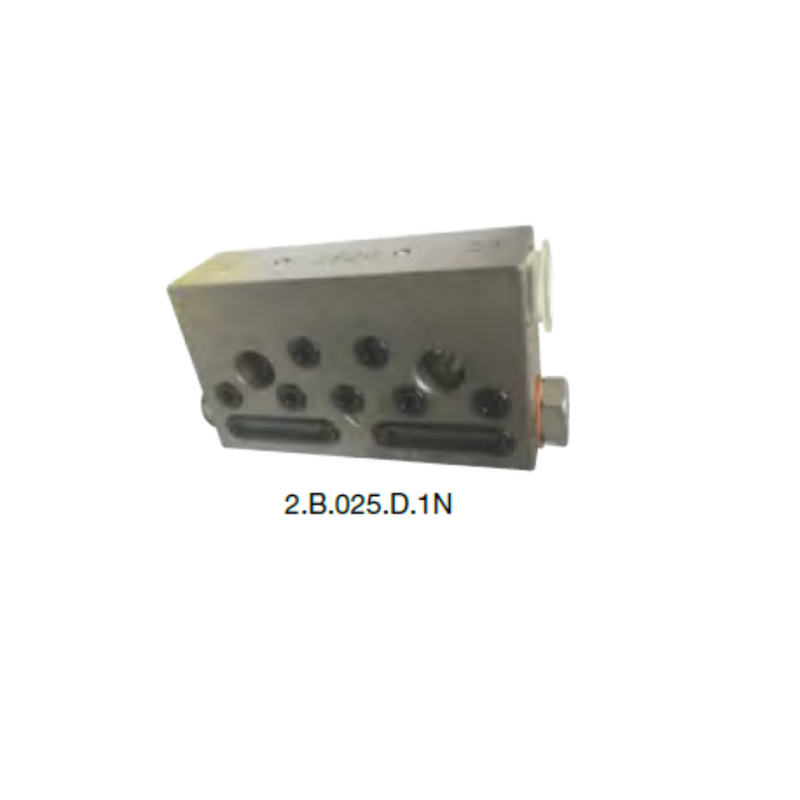

| •2.B.025.D.1N — DPX 25 mm³ centre section |
| •2.B.045.D.1N — DPX 45 mm³ centre section |
| •2.B.075.D.1N — DPX 75 mm³ centre section |
| •2.B.105.D.1N — DPX 105 mm³ centre divider section |
| •2.B.045.D.3I.M12 — DPX 45 mm³ centre section including prox/plug |

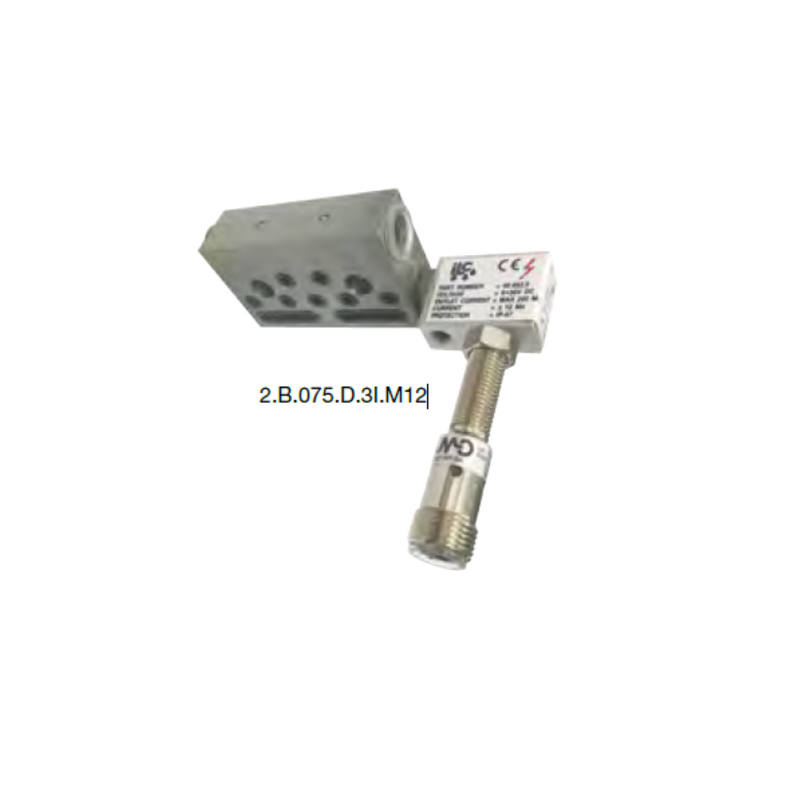

| •2.B.075.D.3I.M12 — DPX 75 mm³ centre section including prox/plug |
| •2.B.105.D.3I.M12 — DPX 105 mm³ centre section including prox/plug |
End Divider Sections
| •2.C.025.D.1N.M10 — DPX 25 mm³ end divider section |
| •2.C.045.D.1N.M10 — DPX 45 mm³ end divider section |

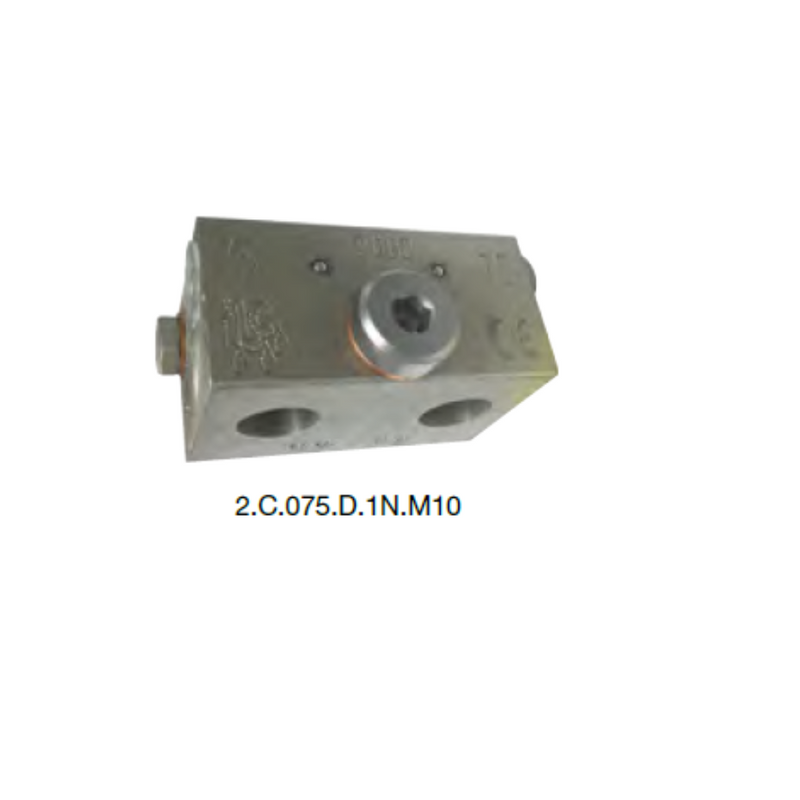

| •2.C.075.D.1N.M10 — DPX 75 mm³ end divider section |
| •2.C.105.D.1N.M10 — DPX 105 mm³ end divider section |
| •2.C.045.D.3I.M10.M12 — DPX 45 mm³ end divider section including prox/plug |
| •2.C.075.D.3I.M10.M12 — DPX 75 mm³ end divider section including prox/plug |
| •2.C.105.D.3I.M10.M12 — DPX 105 mm³ end divider section including prox/plug |
Sections with prox/plug include an M12 inductive proximity sensor. Contact Lube Control Pty Ltd for system design, section selection, and compatibility advice — call 1300 917 946
