ILC-MAX Automatic Grease Lubrication Pump, 240Voltage Lubricators
The ILC MAX 240V AC (also designated 230V AC) is a high-pressure progressive automatic lubrication pump for grease, and the fastest-running model in the ILC MAX series at 29 RPM. It delivers up to 4.64 cm³ of grease per minute via a fixed pumping element, achieves a maximum operating pressure of 250 bar, and is compatible with greases from NLGI 000 through to NLGI 2. Available with 2 kg, 4 kg, or 8 kg transparent plastic reservoirs, the 240V AC model features a taller base block (H3 = 139.5 mm) compared to the 12V/24V DC variants, and can be paired with DPX progressive divider valves to automatically service hundreds of lubrication points from a single unit.
Technical Specifications
| Voltage | 240V AC (230V AC) |
| Motor Speed | 29 RPM |
| Fixed Output | 4.64 cm³/min (0.16 cc/rev) |
| Adjustable Output Range | 0.29 – 4.64 cm³/min (0.01 – 0.16 cc/rev) |
| Maximum Operating Pressure | 250 bar |
| Maximum Counter Pressure | 275 bar (3993 PSI) ±10% |
| Compatible Lubricants | Grease NLGI 000, 00, 0, 1, 2 |
| Operating Temperature Range | -20 °C to +80 °C |

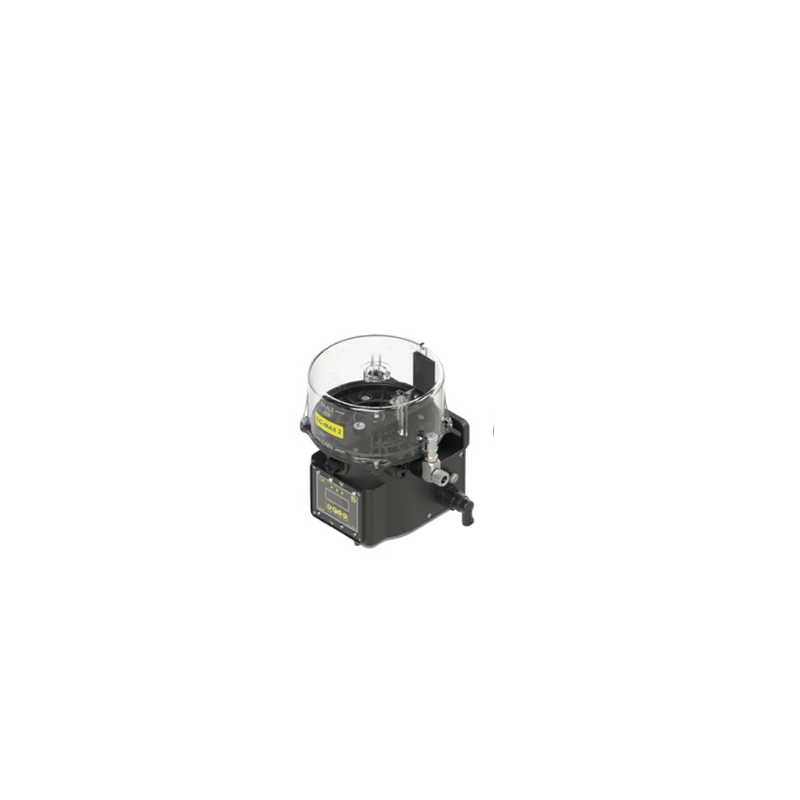

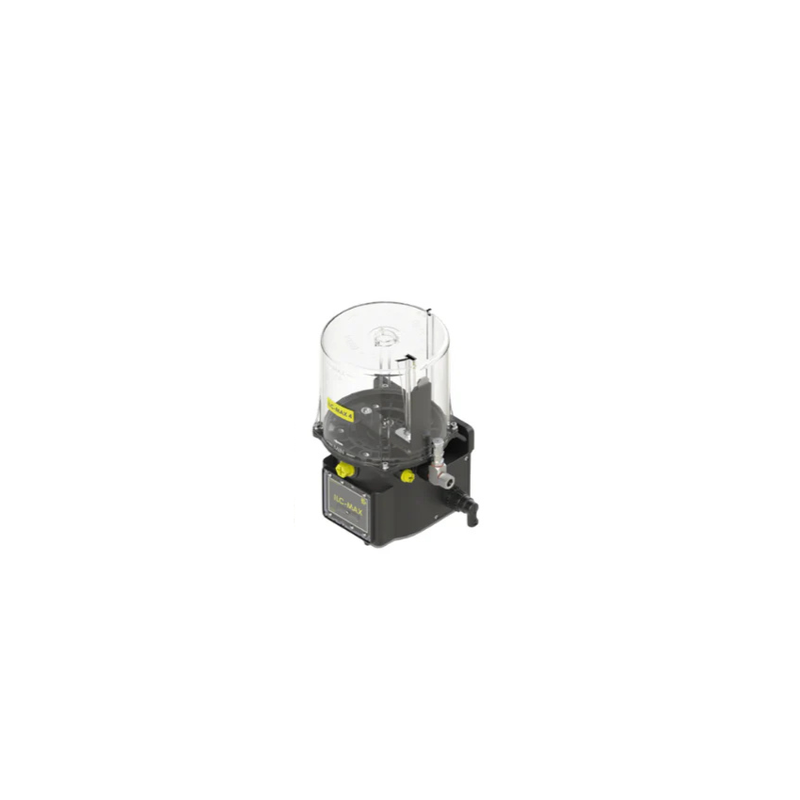

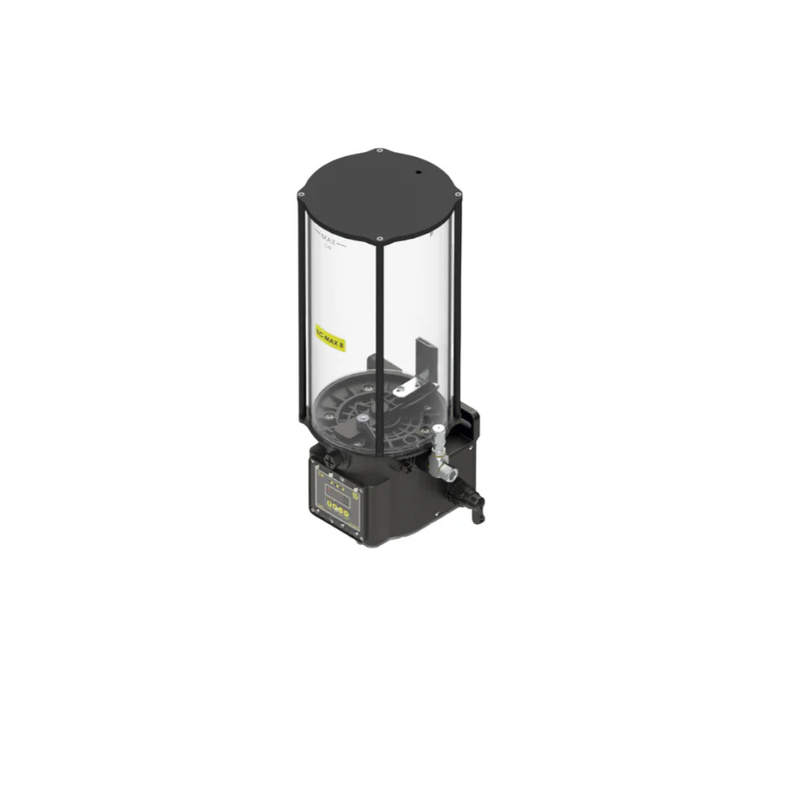

| Reservoir Capacity Options | 2 kg, 4 kg, 8 kg (transparent plastic) |
| Pump Outlets | 1 to 3 (expandable to hundreds of points via DPX progressive divider valves) |
| Overall Height H1 — 2 kg reservoir | 263.5 mm |
| Overall Height H1 — 4 kg reservoir | 338.5 mm |
| Overall Height H1 — 8 kg reservoir | 516.3 mm |
| Base Block Height (H3) | 139.5 mm (taller than 12V/24V DC variants at 115.5 mm — dedicated 240V AC base block) |
| Motor Protection Rating | IP56 — Nylon PA6 + 30% fibreglass housing, sealed with O-rings |
Features
| •Fastest motor in the ILC MAX series — 29 RPM delivers higher output than the 12V DC (22 RPM) or 24V DC (22 RPM) models |
| •Expandable via DPX progressive divider valves — scales from 1 to hundreds of automatic lubrication points from a single pump |
| •Internally mounted stirring paddle continuously primes springless pump elements with grease — prevents cavitation and ensures consistent output |
| •Grease strainer fitted as standard — prevents debris from entering the system |
| •Low-level switch generates a pulse signal at every rotation when the reservoir is empty — enables automatic low-level alarm integration |
| •Optional integrated electronic control timer built into the housing cover — programmable working times and pause times for fully automatic intermittent or continuous lubrication cycles |
| •IP56-rated motor housing in reinforced Nylon PA6 + 30% fibreglass with O-ring seals — suitable for harsh outdoor and industrial environments |
Grease version — compatible with NLGI 000 to NLGI 2. The 240V AC base block is taller than the DC variants; confirm reservoir selection and overall height requirements before installation. Manufactured by I.L.C. srl, Italy. Supplied by Lube Control Pty Ltd — call 1300 917 946 or visit lubecontrol.com.au for technical support and DPX divider valve configuration advice.
