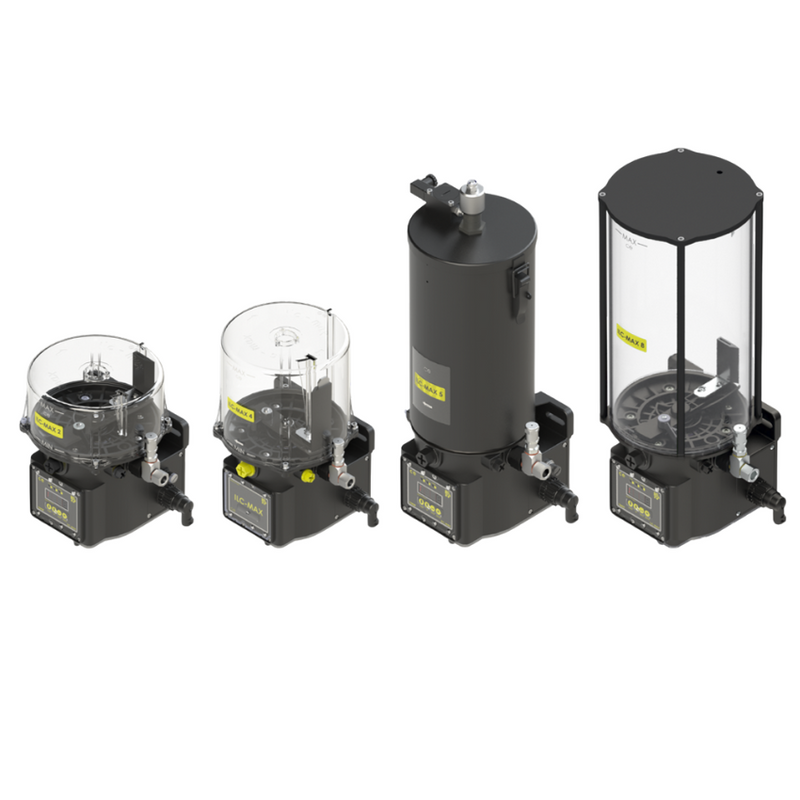

ILC-MAX Automatic Oil Lubrication Pump With 8 Liter Reservoir Capacity, 24V DC Power Supply, Fixed Flow Rate Pumping Element, And Integrated Timer
This ILC MAX configuration is a 24V DC automatic progressive lubrication pump for oil, fitted with a fixed-flow pumping element and an 8 kg transparent plastic reservoir. Running at 22 RPM, it delivers a precise 3.52 cm³ of mineral oil per minute and achieves a maximum operating pressure of 250 bar — making it well-suited to machinery with multiple friction points when paired with DPX progressive divider valves. The integrated electronic timer is built directly into the IP56-rated housing, allowing fully automatic intermittent or continuous lubrication cycles with programmable working and pause times.
Technical Specifications
| Voltage | 24V DC |
| Motor Speed | 22 RPM |
| Pumping Element Type | Fixed flow rate |
| Discharge Rate | 0.16 cc/rev — 3.52 cm³/min total |
| Maximum Operating Pressure | 250 bar |
| Maximum Counter Pressure | 275 bar (3993 PSI) ±10% |
| Lubricant Type | Mineral oil only — 50 to 1500 cSt |
| Reservoir Capacity | 8 kg (transparent plastic) |
| Overall Height (H1) | 510.5 mm |
| Reservoir Section Height (H2) | 375 mm |
| Base Block Height (H3) | 115.5 mm |
| Pump Outlets | 1 to 3 (expandable to hundreds of points via DPX progressive divider valves) |
| Operating Temperature Range | -20 °C to +80 °C |
| Motor Protection Rating | IP56 — Nylon PA6 + 30% fibreglass housing, sealed with O-rings |
Features
| •Integrated electronic control timer built into the housing — pre-programmable working times and pause times for fully automatic intermittent or continuous lubrication cycles |
| •Expandable via DPX progressive divider valves — scales from 1 to hundreds of lubrication points from a single pump |
| •8 kg transparent plastic reservoir allows visual oil level monitoring without interrupting operation |
| •Low-level switch generates an open-to-close pulse at every revolution when the reservoir is empty — enables automatic low-level alarm integration |
| •IP56-rated motor and timer housing in reinforced Nylon PA6 + 30% fibreglass with O-ring seals — suited to harsh outdoor and industrial environments |
Oil version — mineral oil (50–1500 cSt) only. Reservoir capacity is specified by the manufacturer in kg, not litres. Manufactured by I.L.C. srl, Italy. Supplied by Lube Control Pty Ltd — call 1300 917 946 or visit lubecontrol.com.au for technical support and DPX divider valve configuration advice.
