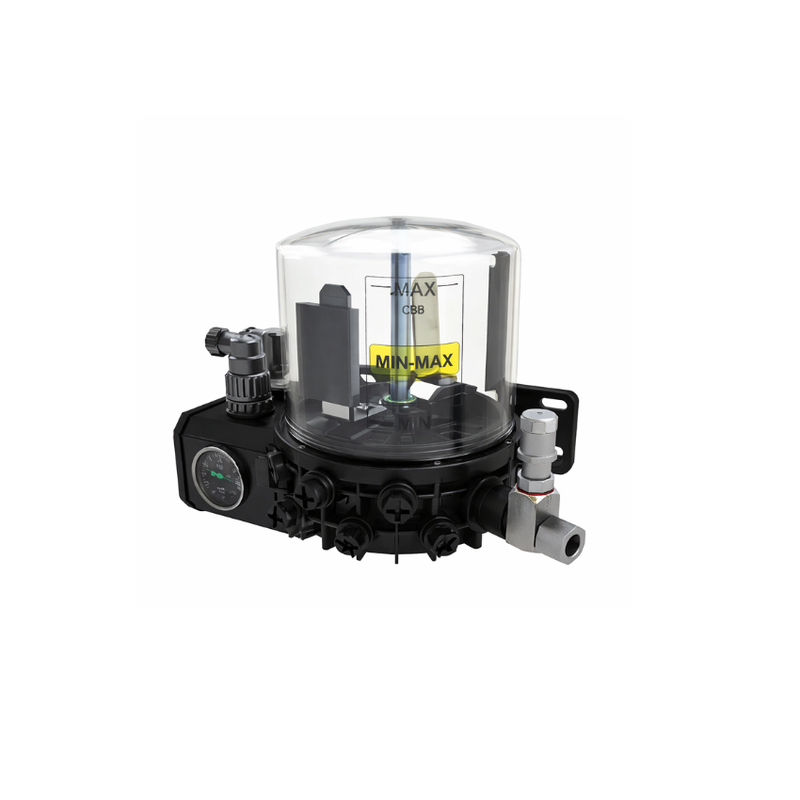

ILC MINI MAX Pumps 1kg Reservoir
The ILC Mini-Max is a compact, modular electric grease pump designed to operate as a multi-outlet system, with DPX progressive distributors, or a combination of both. Driven by a 12V DC or 24V DC gearmotor with cam drive and return spring, it accommodates up to 10 pumping elements — eight single-point outlets and two progressive feed outlets — in a single 1 kg capacity unit. An optional internal timer enables programmable lubrication cycles with pre-lubrication, pause, and alarm functions, while outdoor-rated electrical connections and sealing measures ensure reliable performance in demanding environments.
Technical Specifications
| Speed | 22 RPM |
| Pumping System | Cam drive with return spring |
| Max. Outlets / Pumping Elements | 8 single-point utilities + 2 progressive feed (10 total) |
| Delivery Connection — Single Utility | M10x1 |
| Delivery Connection — Metering Elements | 1/8" |
| Nominal Discharge — Single Point | 5, 10, 15, 25, or 50 mm³/rev |
| Nominal Discharge — Progressive Distributor | 120 mm³/rev |
| Maximum Reachable Pressure | 200 bar |
| Tank Capacity | 1 kg |
| Grease Consistency | NLGI 2 (at actual working temperature) |
| Operating Temperature | -10 °C to +60 °C |
| Storage Temperature | -20 °C to +80 °C |
| Max. Relative Humidity (no condensation) | 90% |
| Sound Pressure Level | < 70 dB(A) |
| Minimum Level Indication | Reed contact triggered by presser disk — 1.5A 250V AC / 200V DC 50W, NC or NA contact |
| Power Supply Voltage (Internal Timer) | 12V DC or 24V DC |
| Net Weight | 2.75 kg |
| Overall Dimensions (W × D × H) | 244.5 mm × 211 mm × 179 mm |
Features
| •Modular design — configurable for multi-outlet, progressive distributor (DPX), or combined operation with up to 10 pumping elements |
| •Five selectable single-point discharge rates (5, 10, 15, 25, 50 mm³/rev) and fixed or adjustable progressive distributor elements (0–120 mm³/rev) |
| •Optional internal timer with selectable working modes: pause time (hours/minutes), external pulse pause, pre-lubrication, and quick dispensing adjustment (±30%) |
| •Timer controls include minimum electric level management, remote manual pushbutton, remote alarm signal output, and progressive distributor cycle control |
| •Timer housed inside the structure near the gearmotor — accessible via removable transparent cap; LED indicators for power-on and alarm level visible from outside without removal |
| •Spatulator in the lower zone facilitates grease intake; presser disk triggers minimum level reed contact for low-level alarm |
| •Outdoor-rated electrical connections with 7-pole connector (A91.111327) and multiple cable sealing rubbers for high ingress protection |
| •Optional accessories include pressure gauge block with grease nipple (Part No. 40.BMI.01), hand pump and tank filling adaptor, luminous pushbuttons, and reset buttons with lamp (12V or 24V) |
Applications
| •Industry |
| •Agriculture |
| •Earth moving |
| •Construction machinery |
| •Automotive |
Manufactured by I.L.C. srl, Italy. Product appearance may be subject to change without notice. Supplied by Lube Control Pty Ltd — call 1300 917 946 or visit lubecontrol.com.au for technical support, ordering codes, and configuration advice.
