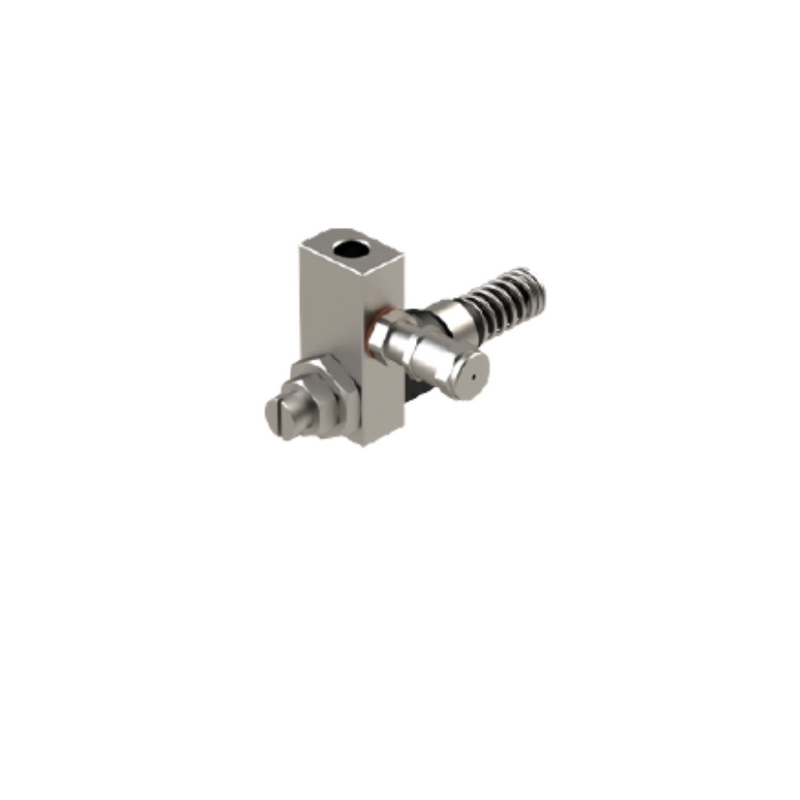

ILC MINIMAX adjustable element
The 00.900.3 is the adjustable metering pumping element for the ILC MINI-MAX Series piston electric pump, designed to supply progressive metering devices. Unlike fixed-flow elements, the 00.900.3 features a built-in safety valve that automatically discharges excess pressure over 200 bar, and its flow rate is user-adjustable from 0 to 120 mm³ per cycle by loosening the counter nut and rotating the adjustment screw. It measures 112.5 mm in total length and 66 mm in height, with a 1/4" BSP inlet thread. The initial fittings must be ordered separately, and a closing torque of 21 Nm must be applied to ensure proper tightening and gasket seal.
Technical Specifications
| Part Number | 00.900.3 |
| Type | Adjustable metering pumping element — for progressive metering devices |
| Flow Rate per Cycle | 0 – 120 mm³ (adjustable) |
| Safety Valve | Yes — automatically discharges excess pressure over 200 bar |
| Inlet Thread | 1/4" BSP |
| Total Length | 112.5 mm |
| Height | 66 mm |
| Installation Torque | 21 Nm (progressive metering device pumping elements) |
Flow Rate Adjustment Table
| Setting A (mm) | Flow Rate / Cycle | Percentage |
| 23.6 | 120 mm³ | 100% |
| 22.4 | 0.09 cc | 75% |
| 21.2 | 0.06 cc | 50% |
| 20.1 | 0.03 cc | 25% |
| 19.4 | 0.03 cc | 5% |
| 17.5 | 0.00 cc | 0% |
Features
| •Adjustable flow rate from 0 to 120 mm³ per cycle — set by loosening the counter nut (Pos. C) and rotating the adjustment screw (Pos. B) clockwise to reduce or anticlockwise to increase output; retighten counter nut after setting |
| •Built-in safety valve — automatically discharges excess pressure over 200 bar, protecting the system and progressive metering devices |
| •Considerably superior flow rate compared to single-point pumping elements — designed specifically for supplying DPX and other progressive metering devices |
| •Easy field installation — remove the yellow cap from the desired seat position, insert and screw the element all the way in to 21 Nm torque |
| •Compatible with the ILC MINI-MAX Series piston electric pump — initial fittings must be ordered separately |
For use with the ILC MINI-MAX Series piston electric pump. Initial fittings not included — must be ordered separately. Fixed-flow metering element also available: 00.900.0 (120 mm³/cycle fixed). Reference: MINI-MAX Series Manual, Edition 15603-01-REV.03. Supplied by Lube Control Pty Ltd — call 1300 917 946
