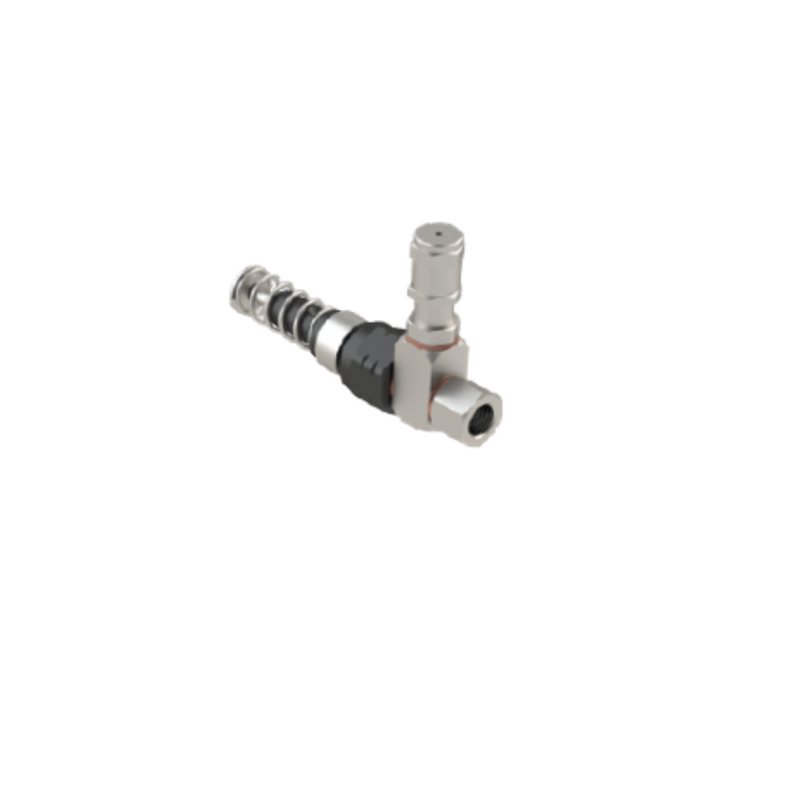

ILC MINIMAX fixed pump element
The Fixed Metering Device Pumping Element (00.900.0) is designed for use with the Mini-Max Series Piston Electric Pump, delivering a consistent fixed flow rate of 120 mm³ per cycle to supply progressive metering devices. Built with a safety valve that automatically discharges excess pressure over 200 bar, this element ensures reliable and safe operation in demanding centralised lubrication systems. Its fixed output makes it the ideal choice where a stable, pre-set lubrication rate is required without the need for field adjustment.
Technical Specifications
| Product Code | 00.900.0 |
| Type | Fixed Metering Device Pumping Element |
| Flow Rate per Cycle | 120 mm³ |
| Flow Rate Setting | Fixed (non-adjustable) |
| Safety Valve | Yes — auto-discharge above 200 bar |
| Compatible Pump Series | Mini-Max Series Piston Electric Pump |
| Installation Torque | 21 Nm |
| Initial Fittings | Must be ordered separately |
Features
| •Fixed 120 mm³/cycle output for consistent, predictable lubrication |
| •Integrated safety valve automatically relieves pressure above 200 bar |
| •Designed to supply progressive metering devices with a high flow rate |
| •Easy field installation — insert into any available pump seat after removing the yellow cap |
| •Compatible with the full Mini-Max Series Piston Electric Pump range |
Applications
| •Centralised lubrication systems requiring fixed-output pumping elements |
| •Feeding progressive metering devices in industrial machinery |
| •Replacement or additional pumping element for existing Mini-Max pump installations |
Note: Initial fittings are not included and must be ordered separately. Installation torque must be 21 Nm to ensure proper tightening and gasket seal. Refer to Mini-Max Series Manual Edition 15603-01-REV.03 for full installation guidance.
