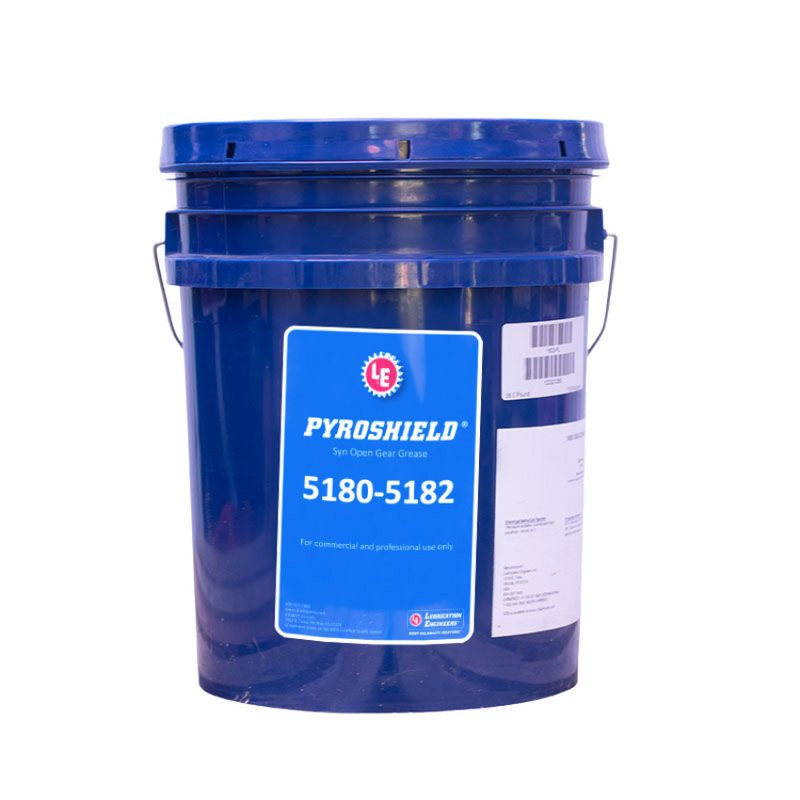

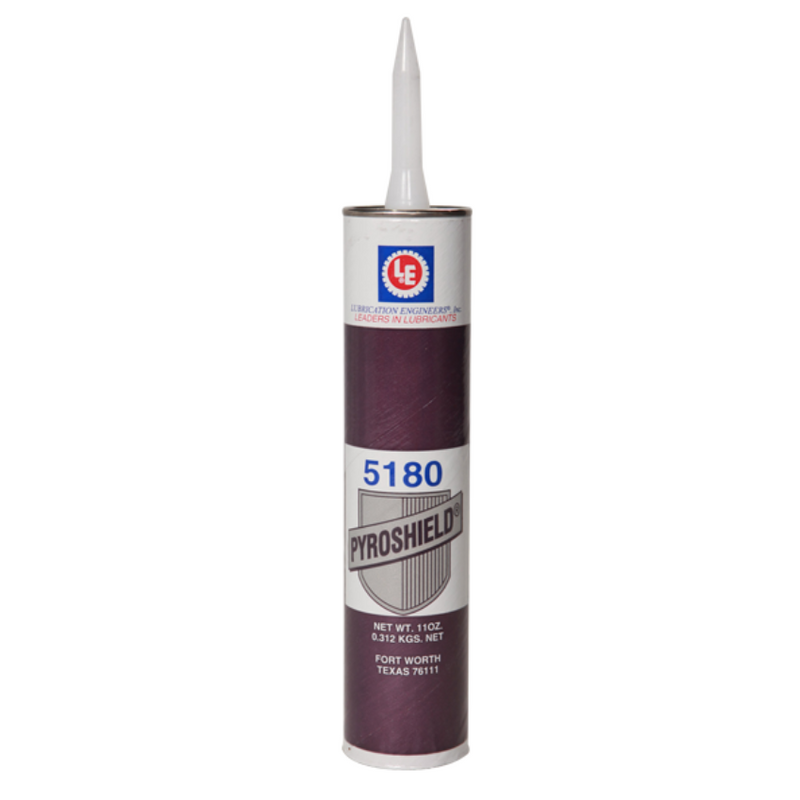

LE Pyroshield Syn Open Gear Grease
LE Pyroshield® Syn Open Gear Grease (5180) is a heavy-duty synthetic lubricant developed for large unshrouded open gears in the mining, mineral processing and cement industries, and for other severe service applications requiring superior wear protection, exceptional load-carrying ability, outstanding tackiness and ease of application at various temperatures. It also works well where gears experience point-of-contact temperatures of 327°C (620°F) and above. Formulated with high-viscosity 100 percent synthetic base oil, a non-melting thickening system and LE’s heat-stable additives, it contains a synergistic mix of Almasol® and a unique combination of extreme pressure additives.
TYPICAL PROPERTIES
| Thickener Type | Bentone |
| Texture | Smooth/Tacky |
| Color | Purple |
| NLGI Grade as applied | 0 |
| NLGI Grade in service | 2 |
| Worked 60 Penetration (ASTM D217) | 365 |
| Worked 10K Penetration (ASTM D217) | +14 |
| Worked 100K Penetration (ASTM D217) | +28 |
| Dropping Point (ASTM D2265) | Non-melt |
| Base Fluid Flash Point (ASTM D92) | 110°C (230°F) |
| Base Fluid Viscosity @ 100°C, cSt (ASTM D445) | 690 (in service) |
| Base Fluid Viscosity @ 40°C, cSt (ASTM D445) | 26,180 (in service) |
| Base Fluid Pour Point (ASTM D97) | 3°C (37°F) |
| Oxidation, psi drop @ 100 hrs (ASTM D942) | 3 |
| Corrosion Prevention, DI H2O (ASTM D1743) | Pass |
| Timken OK Load, lbs (ASTM D2509) | 90 |
| Four-Ball EP Weld Point, kgf (ASTM D2596) | 620 |
| Four-Ball EP Load Wear Index, kgf (ASTM D2596) | 136 |
| Four-Ball Wear @ 75°C (167°F), 1200 rpm, 40 kgf, 60 min, mm (ASTM D2266) | 0.71 |
| Water Spray-off, % loss (ASTM D4049) | <2.0 |
| Copper Corrosion, 24 hrs @ 100°C (ASTM D4048) | 1b |
KEY FEATURES
| •Increases uptime, lengthens equipment life, lowers lubricant consumption and reduces maintenance |
| •Outperforms similar products in wear protection and load-carrying ability – narrower wear scar and lower block temperature than all competitive products in LE Modified Timken testing |
| •Carries a 90-lb Timken OK load |
| •Resists shock loading |
| •Excellent oxidation resistance and rust protection |
| •Reduces noise in large open gears |
| •Clings tenaciously to surfaces and resists removal by water, heat and other severe conditions |
| •Does not thin or run at high temperatures |
| •No dropping point – will not melt |
| •Remains pumpable at low temperatures |
| •Works for open gears and heavily loaded sliding applications |
APPLICATIONS
| •Various applications in the mining and mineral processing industry |
| •Open gears and slides |
| •Ball mill open gears |
| •Kiln open gears |
| •Bar screens |
| •Dipper sticks |
| •Circle rails |
ADDITIONAL INFORMATION
| Performance Requirements Met or Exceeded | Metso Mineral Grinding |
| Switching Recommendation | For best results when switching to Pyroshield Syn Open Gear Grease, first clean the area of application with LE’s Duolec® Industrial Gear Oil (1609). |
| Usage | Use adequate ventilation if used indoors. This lubricant contains a safe, non-chlorinated solvent for improved pumpability and ease of application at low temperatures; after application the solvent evaporates, leaving an NLGI 2 grease. 5180 should not be further diluted with solvent, even if partial evaporation has occurred. |
The information contained in this data sheet is based on data considered to be accurate. No warranty is expressed or implied regarding the accuracy of this data. Product specifications and availability are subject to change without notice. Lube Control Pty Ltd accepts no responsibility for any loss or damage arising from the use of this information.
